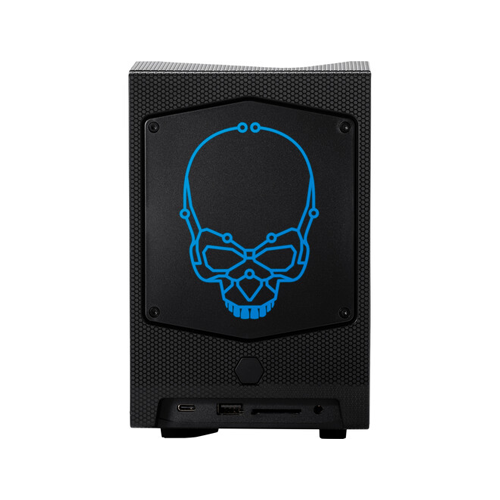

Intel i9 12th Dragon Canyon Extreme Mini PC RNUC12DCMI90000
Overview
| Processor | Intel Core i9-12900 (12th Gen) |
| CPU Socket | LGA 1700 |
| CPU | 2.4 to 5 GHz Performance 8-Core |
| 1.8 to 3.8 GHz Efficiency 8-Core | |
| L3 Cache | 30 MB |
| Graphics Type | Integrated |
| GPU | Intel UHD Graphics 770 |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | None |
| Maximum Memory Capacity | 64 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Buffered Memory | No |
| ECC Memory | No |
|
Storage and Expansion |
|
| Total Drive Bays | None |
| SSD Slots | 1 x M.2 PCIe 4.0 x4 (Available) |
| 2 x M.2 SATA / PCIe 4.0 x4 (Available) | |
| Total Installed Capacity | 0 MB |
| PCI Expansion | 1 x PCIe 5.0 x16 [x16 Mechanical] (Available) |
| Optical Drive | None |
|
I/O |
|
| Ports | 7 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) |
| USB Type-C | 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery) |
| 1 x USB 3.1 / USB 3.2 Gen 2 | |
| Display | 1 x HDMI 2.0b |
| Audio | 1 x 1/8″ / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | None |
| Built-In Microphones | None |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-II) |
|
Communications |
|
| Ethernet | 1 x RJ45 (2.5GbE) |
| 1 x RJ45 (10GbE) | |
| Wi-Fi | Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz) |
| MU-MIMO Support | Yes |
| Bluetooth | 5 |
| NFC | No |
|
Keyboard & Mouse |
|
| Keyboard | None |
| Pointing Device | None |
|
General |
|
| Power Supply | 650 W with IEC |
| Dimensions | 14.1 x 7.4 x 4.7″ / 357 x 189 x 120 mm |
|
Packaging Info |
|
| Package Weight | 17.92 lb |
| Box Dimensions (LxWxH) | 21.4 x 15 x 13.3″ |
