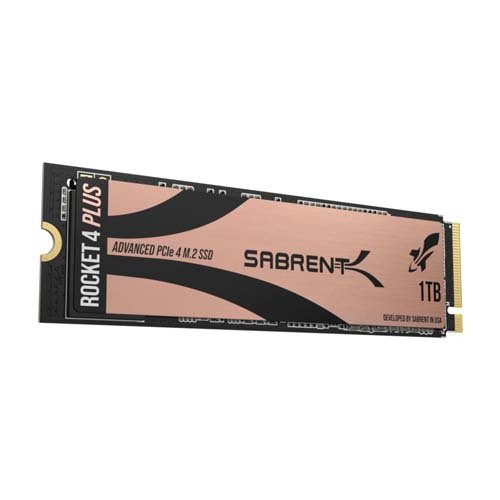

Sabrent 1TB Rocket 4 PLUS NVMe 4.0 Gen4 PCIe M.2 Internal SSD SB-RKT4P-1TB
Overview :
Sabrent Rocket 4 Plus Sb-Rkt4P-1Tb 1 Tb Solid State Drive – M.2 2280 Internal – Pci Express Nvme (Pci Express Nvme 4.0 X4) – 7000 Mb/S Maximum Read Transfer Rate – 5 Year Warranty Pcie M.2 Int Ssd Extreme Perf Ssd – SB-RKT4P-1TB
- NVMe M.2 PCIe Gen4 x4 Interface. PCIe 4.0 Compliant / NVMe 1.3 Compliant.
- Power Management Support for APST / ASPM / L1.2.
- Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
- Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-Provision.
- All Sabrent SSDs come with FREE Sabrent Acronis True Image for Sabrent Software for easy Cloning. For those who require a specific sector size to clone their existing SSDs: A newly released Sabrent utility enables users to re-format the Rocket drive and choose the sector size of their liking, either 512-bytes or 4K bytes.
The Sabrent 4TB Rocket 4 PLUS NVMe 4.0 Gen4 PCIe M.2 Internal SSD Extreme Performance Solid State Drive (SB-RKT4P-4TB) delivers all the advantages of flash disk technology with PCIe Gen4.0 x4 interface.
Based on TLC NAND Flash memory, its performance speeds can reach up to 7100 MB/s (read) and 6600 MB/s (write) when using a PCIe Gen4 motherboard. Using a PCIe Gen3 Motherboard Speeds will reach up to 3400 MB/s (read) and 3000 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.
The Sabrent 4TB Rocket 4 Nvme PCIe 4.0 M.2 2280 Internal SSD was designed using PCIe 4.0 which allows for speeds of up to 7100 MB/s (read) and 6600 MB/s (write), significantly faster than PCIe 3.0.
Note: In order to take advantage of these speeds, a PCIe Gen4 motherboard is REQUIRED. Otherwise it will be at pcie gen 3 speed at max of 3500MB/s.
When installing any NVMe PCIe 4.0 SSD directly onto a PCIe Gen4 Motherboard a Heatsink is required to dissipate the heat generated by the drives extreme speed levels to avoid thermal throttling and maximize performance.
The Sabrent 2TB Rocket 4 Nvme PCIe 4.0 M.2 2280 Internal SSD is backward compatible with PCIe 3.0. Using a Gen 3 PCIe motherboard will enable the user to reach speeds of up to 3400 MB/s (read) and 3000 MB/s (write).
Features:
• NVMe M.2 PCIe Gen4 x4 Interface.
• PCIe 4.0 Compliant / NVMe 1.3 Compliant.
• Power Management Support for APST / ASPM / L1.2.
• Supports SMART and TRIM commands.
• Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
• Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-Provision.
• Upgradeable Firmware.
Specification :
Package Contents:
1TB Rocket 4 PLUS NVMe 4.0 Gen4 PCIe M.2 Internal SSD Solid State Drive (SB-RKT4P-1TB)
User Manual
Product Type:Solid State Drive
Storage Capacity:1 TB
Manufacturer Part Number:SB-RKT4P-1TB
Platform Supported:PC
Limited Warranty:5 Year
Weight (Approximate):2.40 oz
Drive Type:Internal
Form Factor:M.2 2280
Manufacturer:Sabrent, IncProduct
Model:SB-RKT4P-1TB
Product Name:1TB Rocket 4 PLUS NVMe 4.0 Gen4 PCIe M.2 Internal SSD Solid State Drive (SB-RKT4P-1TB)
Product Line:Rocket 4 PLUS
Brand Name:Sabrent
Country of Origin:Taiwan
Height:0.5″Width:2.8″Depth:4″
Wireless LAN:No
Maximum Read Transfer Rate:7100 MB/s
Maximum Write Transfer Rate:5300 MB/s
Drive Interface:PCI Express NVMe
Drive Interface Standard:PCI Express NVMe 4.0 x4
