Home » Shop » SanDisk Professional 144TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 18TB, Thunderbolt 3 & USB 3.2 Gen 2) SDPH48H-144T-NBAAB

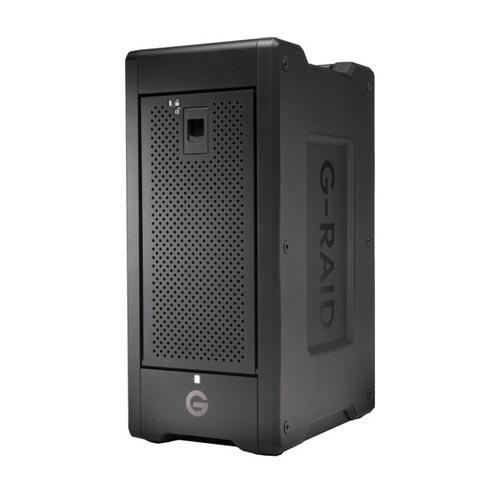

SanDisk Professional 144TB G-RAID Shuttle 8 8-Bay RAID Array SDPH48H-144T-NBAAB

620,383

29% Off
Close
Price Summary
  • 868,536
  • 620,383
  • 29%
  • 620,383
  • Overall you save 248,153 (29%) on this product
Out of Stock
Highlights:
  • 8 x 18TB Ultrastar Enterprise 3.5″ HDDs
  • 8 x SATA III 3.5″ Drive Bays
  • 2 x Thunderbolt 3 | 1 x USB 3.2 Gen 2
  • RAID 0, 1, 5, 6, 10, 50, 60, and JBOD

Email when stock available

Found this product at a lower price?
42 People viewing this product right now!
SKU: SDPH48H-144T-NBAAB Category: Tag:
Description

SanDisk Professional 144TB G-RAID Shuttle 8 8-Bay RAID Array (8 x 18TB, Thunderbolt 3 & USB 3.2 Gen 2) SDPH48H-144T-NBAAB

Overview :

Designed so content creators can have a premium solution for their demanding workflows, whether on location or in the studio, the 144TB G-RAID Shuttle 8 8-Bay RAID Array from SanDisk Professional delivers powerful RAID storage in a design that’s easy to transport. Equipped with an overall capacity of 144TB, that is made of up 8 x 18TB 7200 rpm Ultrastar Enterprise-class hard drives, the Shuttle 8 delivers read speeds of up to 1690 MB/s and write speeds of up to 1490 MB/s, which is more than enough to drive multi-stream 4K, 8K, and VR workflows. In terms of connectivity, this array is equipped with two 40 Gb/s Thunderbolt 3 ports and one 10 Gb/s USB Type-C port. While host connectivity is achieved using one of the Thunderbolt 3 ports, or the USB Type-C port, the second Thunderbolt 3 port remains available for daisy-chaining up to five additional devices, including drives, 4K displays, and more, all through a single cable connection.

SanDisk Professional built the G-RAID Shuttle 8 with a hardware RAID controller that supports RAID 0, 1, 5, 6, 10, 50, and 60, each of which provides performance, data redundancy, or a combination of both. For those who do not need a RAID, JBOD is also available. The system comes preconfigured as RAID 5 and formatted for macOS 10.15 and later, although the system may be reformatted for other RAID modes, as well as Windows 10. Included is a Thunderbolt 3 cable and an IEC power cable, while protection is provided by a limited 5-year warranty.

General Features
Colossal Capacity, Transportable Design
With a capacity of 144TB of high-powered RAID storage in an easy-to-transport design, content creators get a premium solution for their demanding workflows, whether on location or in the studio.

High-Speed Data Transfers
With read speeds f up to 1900 MB/s, write speeds of up to 2000 MB/s, and support for multi-stream 4K, 8K, and VR workflows, you can quickly move or copy all your media so you can spend less time waiting and more time creating with high-speed data transfer using the 40 Gb/s Thunderbolt 3 or 10 Gb/s USB Type-C ports.

Built-In Hardware RAID
For balanced performance, the G-RAID Shuttle 8 comes formatted for macOS 10.15 and later and is configured as RAID 5. It also supports RAID 0, 1, 6, 10, 50, 60, and JBOD for greater flexibility and may be reformatted for Windows 10.

Removable, Reliable 7200 rpm Ultrastar Enterprise-Class Drives
For all your demanding workloads and mission critical footage, you can depend on the power and enhanced reliability of eight removable Ultrastar Enterprise-class 7200 hard drives inside.

Daisy-Chaining for up to 5 Additional Devices
With dual Thunderbolt 3 ports, you can conveniently daisy chain up to 5 additional devices, keeping you connected to multiple drives, 4K displays, and more, through a single connection to your computer.

Limited 5-Year Warranty
Backed by a limited 5-year warranty, you can be confident in the reliable storage of the G-RAID Shuttle 8 for years to come.

Specification :

Drives
Storage Capacity 144 TB
Included Drives 8 x 18 TB 3.5″ HDD
Initial RAID Configuration RAID 5
Interface SATA III
Rotational Speed 7200 rpm
General
Number of Bays 8 x 3.5″
Pre-Format APFS
I/O 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
Compatible Drive Interface SATA III
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 50, 6, 60, JBOD
Hot-Swap Support No
Transfer Rates 1690 MB/s (Read)
1490 MB/s (Write)
UASP Support Yes
Software
OS Compatibility macOS 10.15 or Later
Windows 10 or Later
*As of May, 2021: check with manufacturer for the most up-to-date compatibility
Security
Encryption None
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 2 to 4 A
Power Source AC Adapter
Environmental
Operating Temperature 41 to 95°F / 5 to 35°C
Physical
Cooling 2 x Fans
Dimensions 15.2 x 9.6 x 6.9″ / 38.5 x 24.5 x 17.5 cm
Weight 24.2 lb / 11.0 kg
Packaging Info
Package Weight 34.4 lb
Box Dimensions (LxWxH) 20 x 14.7 x 12.8″
Additional information
Weight 2 kg
Brand

Capacity

Interface

Warranty
