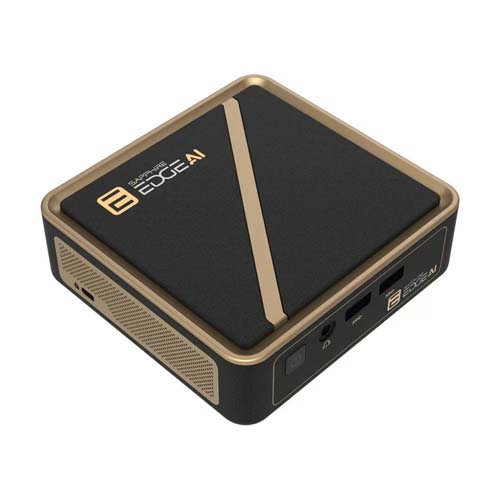

Sapphire EDGE AI 340 Barebone AMD Ryzen AI 5 340 With 2xSODIMM DDR5, 3xM.2 Slots Mini PC 4H020-06-40G
The SAPPHIRE Barebone EDGE AI 340 is a compact and powerful solution equipped with a pre-installed AMD Ryzen AI 5 340 processor. This barebone system is ideal for users seeking a flexible and customizable platform to integrate their own storage and operating system solutions. With an Ultra Small Form Factor (USFF) case, the EDGE AI 340 offers a space-saving option for various applications, whether in the office, home office, or digital signage. Support for DDR5 RAM and multiple M.2 slots allows for future-proof expansion and high performance, while active cooling ensures efficient heat dissipation. This barebone system is not only powerful but also versatile to meet the diverse needs of users.
- Supports up to 96 GB of DDR5 RAM for high performance and multitasking capabilities
- Active cooling with a fan for efficient heat dissipation
- Two HDMI 2.1 ports for high-resolution video output
- Maximum RJ-45 speed of 2.5 Gbit/s for fast network connections.
Specifications
Number of processor cores | 6 -Core |
Memory type | DDR5-RAM |
Internal connection options | M.2 (3x) |
USB ports | USB-A, USB-C |
Video connections | HDMI (2x) |
Processor type | AMD Ryzen AI 5 340 |
Clock frequency | 2 GHz |
Number of processors | 1x |
Number of processor cores | 6 -Core |
Number of threads | 12 |
Socket | FP8 |
Max. turbo clock rate | 4.80 GHz |
Max. TDP | 28 W |
Processor properties | Onboard processor |
Memory type | DDR5-RAM |
Memory form factor | SO-DIMM |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 96 GB |
Internal connection options | M.2 (3x) |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (1x), USB-C 4 (2x) |
Max. port speed | 2500 Mbit/s |
Connectivity | Bluetooth, HDMI, LAN, USB |
Video connections | HDMI (2x) |
Power | 120 W |
