SAPPHIRE NITRO AMD RADEON RX 6600 XT GAMING OC 8GB GDDR6 Graphi Card 11309-01-20G
Overview :

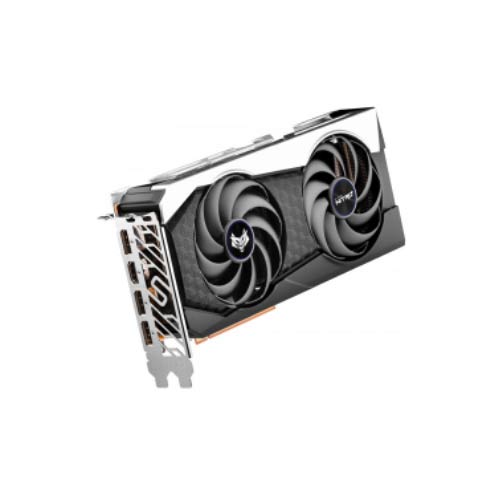

SAPPHIRE NITRO AMD Radeon™ RX 6600 XT
The SAPPHIRE NITRO AMD Radeon™ RX 6600 XT Graphics Card for the ultimate 1080P gamer seeking to harness breakthrough graphics with vivid visuals and excellent quality cooling solutions. Rigged with superior components to handle AAA game scenarios, the NITRO AMD Radeon™ RX 6600 XT Graphics card is a crucial component for an incredible gaming experience. The aesthetic design will be a beautiful integration into any PC build.
SAPPHIRE NITRO Graphics Card FEATURES
Explore all the incredible features that come with the SAPPHIRE NITRO AMD Radeon™ RX 6600 XT Graphic Card. We’ve split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you
Software BIOS Switch
Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes.
WAVE Fin Design
The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
Hybrid Fan Blade
The new hybrid fan design combines the quietness of a traditional axial fan design and strong air pressure of a blower fan design to generate an improvement in the downward air pressure through the fan while keeping the fan noise low.
DUAL-X COOLING TECHNOLOGY
An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections.The streamlined form of our 85mm blades mean greater airflow and superior heatsink coverage at lower noise compared to standard cooling designs. SAPPHIRE’s acclaimed Dual-X Cooling is powered by two massive yet silent fans and state-of-the-art radiator design.
Technical Details
Brand : Sapphire
Model : 11309-01-20G
Specification
Stream Processors : 2048
Infinity Cache : 32MB
Ray Accelerators : 32
Memory Size/Bus : 8GB GDDR6
Memory Clock : 16 Gbps Effective
Displays : Maximum 4 Displays
Interface : PCI-Express 4.0
BIOS Support : Dual UEFI
Game Index : 1080P
Cooling : 2 Fans
Form Factor : 2.2 slot, ATX
Dimension: 240(L)X 119.25(W)X 44.82 (H)mm
Power Consumption : 180W (Board Power)
Resolution
HDMI™: 7680×4320
DisplayPort1.4 : 7680×4320
GPU
AMD Radeon™ RX 6600 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
Boost Clock: Up to 2607 MHz
Game Clock: Up to 2428 MHz
Output
1x HDMI
3x DisplayPort
Sapphire Features
Dual BIOS
TriXX Software BIOS Switch
Premium Digital Power Design
Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Backplate
Two-Ball Bearing Fans
Hybrid Fan Blade
Wave Fin Design
TriXX Supported
Fan Check
Fan Quick Connect
TriXX Boost
AMD Features
AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Smart Access Memory
Infinity Cache
7nm GPU
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
System Requirement
Minimum 500 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
