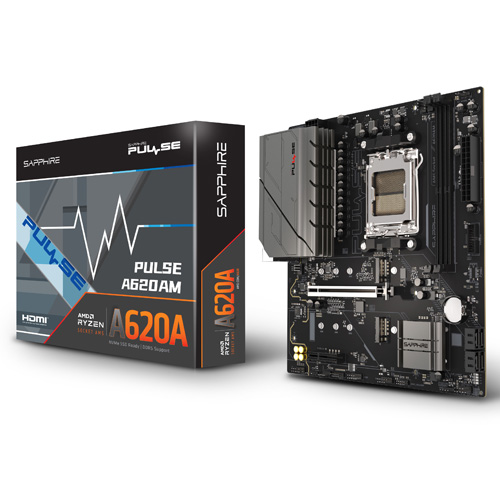

Sapphire PULSE A620AM AMD Motherboard 52118-03-40G
Overview :
- AMD AM5 CPU SUPPORT
- SAPPHIRE CORE BIOS
- 6+2+1 Phase CPU Power, 55A Per Phase,
- Robust VRM, M.2 and PCH Cooling
- Dual Channel, 7600 MHz Memory OC
- PCI Express 4.0 x16
- PCIe 4.0 M.2 Support
Specification :
| Chipset | AMD® A620A |
| CPU Support | Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory Support | 2x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 64GB(2x 32GB), up to 7600 MHz(OC) |
| PCI-E Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x4 |
| Display Connector | DisplayPort x1, HDMI x1 |
| Audio | Realtek® ALC897 HD Audio, 5.1 Channel |
| Network | Realtek® RTL8111K Gigabit Ethernet |
| Front USB Headers | 1x USB 3.2 Gen1 (2 x Type-A), |
| 1x USB 2.0 (2 x Type-A) | |
| Rear Ports | 1× HDMI ™, 1× DisplayPort, 1× PS/2 |
| 4× USB 2.0, 2× USB 3.2 Gen 1 Type-A | |
| 1× LAN (RJ45) | |
| 3× Audio Jacks | |
| Storage | 1x PCIe 4.0 M.2, 1x PCIe 3.0 M.2, 4x SATA |
| Dimensions | Micro-ATX, 244x235mm |
| Debug LED | DRAM: Yellow, CPU: Red, GPU: White, Boot: Green |
