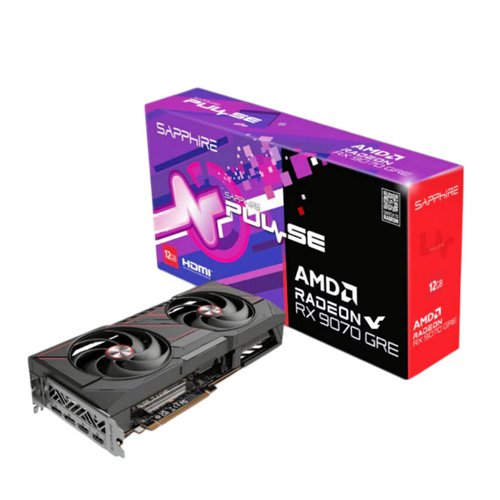

Sapphire Pulse AMD Radeon RX 9070 GRE OC 12GB GDDR6 Graphic Card 11354-01-20G
Overview :
- GPU: Boost Clock: Up to 2920 MHz
- GPU: Game Clock: Up to 2340 MHz
- Memory: 12GB/192 bit DDR6. 18Gbps Effective
- Stream Processors: 3072
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 48
Specification :
| GPU | AMD Radeon™ RX 9070 GRE Graphics Card |
| AMD RDNA™ 4 Architecture | |
| Engine Clock | Boost Clock: Up to 2920 MHz |
| Game Clock: Up to 2340 MHz | |
| Stream Processors | 3072 |
| Compute Units | 48 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 48MB |
| Ray Accelerators | 48 |
| AI Accelerator | 96 |
| Memory Size/Bus | 12GB/192 bit GDDR6 |
| Memory Clock | 18 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI® 2.1b: 7680×4320 |
| DisplayPort™ 2.1a: 7680×4320 | |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 2.1b |
| 2x DisplayPort™ 2.1a | |
| BIOS Support | UEFI |
| Game Index | 1440P |
| Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM) |
| AeroCurve Fan Blade | |
| Free Flow | |
| FrameDefense | |
| Integrated Cooling Module | |
| Dual-X Cooling Technology | |
| High TG Copper PCB | |
| Optimized Composite Heatpipes | |
| Metal Backplate | |
| Two-Ball Bearing Fans | |
| 14-Phase Digital Power Design | |
| Fuse Protection | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| TriXX Supported | |
| TriXX Boost | |
| AMD Features | AMD RDNA™ 4 Architecture |
| 48 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) | |
| AMD HYPR-RX with AFMF 2 | |
| AMD FidelityFX™ Super Resolution 4 with AI Upscaling | |
| DisplayPort™ 2.1a | |
| AMD Radiance Display™ Engine | |
| AMD Fluid Motion Frames 2 technology | |
| AMD Radeon™ Anti-Lag 2 technology | |
| AMD FidelityFX™ technologies | |
| Microsoft® DirectX® 12 Ultimate | |
| AMD Noise Suppression | |
| AMD Freesync™ technology | |
| 12 GB of GDDR6 on 192-bit Memory Bus | |
| AMD FSR™ “Redstone” | |
| AMD Software: Adrenalin Edition™ application | |
| Cooler Type | Dual-X Cooling |
| AeroCurve Fan Blade | |
| Free Flow | |
| Integrated Cooling Module | |
| High TG Copper PCB | |
| Optimized Composite Heatpipes | |
| Two-Ball Bearing | |
| Form Factor | 2.5 slot, ATX |
| Dimension: 280(L)X 120.25(W)X 51.5 (H)mm | |
| Power Consumption | 240W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 650 Watt Power Supply |
| 2 x 8-pin Power Connector. | |
| PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Minimum 8GB of system memory. 16GB recommended. | |
| Warranty | 3 years |
