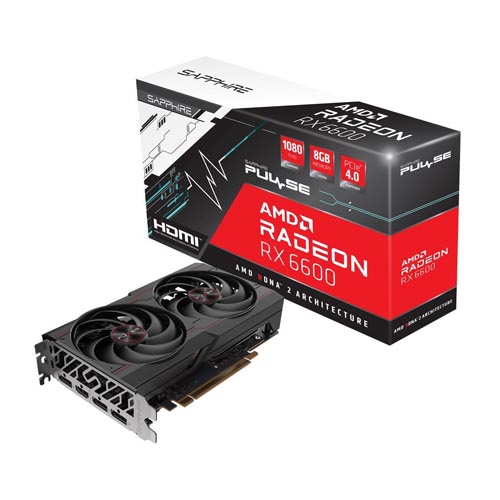

SAPPHIRE PULSE Radeon RX 6600 8GB GDDR6 PCI Express 4.0 Graphic Card 11310-01-20G
Overview :
- 8GB 128-Bit GDDR6
- 1 x HDMI 3 x DisplayPort 1.4
- 1792 Stream Processors
- PCI Express 4.0
Specification :
| Model | |
| Brand | SAPPHIRE |
| Series | PULSE |
| Model | 11310-01-20G |
| Interface | |
| Interface | PCI Express 4.0 |
| Chipset | |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 6000 Series |
| GPU | Radeon RX 6600 |
| Architechture | RDNA 2 |
| Stream Processors | 1792 Stream Processors |
| Memory | |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| 3D API | |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Ports | |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI |
| DisplayPort | 3 x DisplayPort 1.4 |
| Details | |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| System Requirements | PCI Express compatible motherboard with one x16 PCIe slot. |
| Minimum 500W or greater power supply. | |
| NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power. OEM and other pre-assembled PCs may have different power requirements. | |
| Minimum 8GB of system memory. Recommended 16GB. | |
| Installation software requires a keyboard, a mouse, and a display. | |
| A display with HDMI, or DisplayPort is required. | |
| Supported operating systems include Linux, Windows 7*, Windows 10. 64-bit operating system required. (*Does not support all features including but not limited to Hardware Raytracing.) | |
| DirectX 12 and Vulkan support. | |
| For information on AMD Radeon VR Ready Premium visit amd.com/VRready. | |
| Recommended PSU Wattage | 500W |
| Power Connector | 8-Pin |
| Features | |
| Features | Compute Units: 28 |
| Ray Accelerators: 28 | |
| Infinity Cache: 32MB | |
| Firmware: UEFI BIOS | |
| TriXX Boost: Yes |
