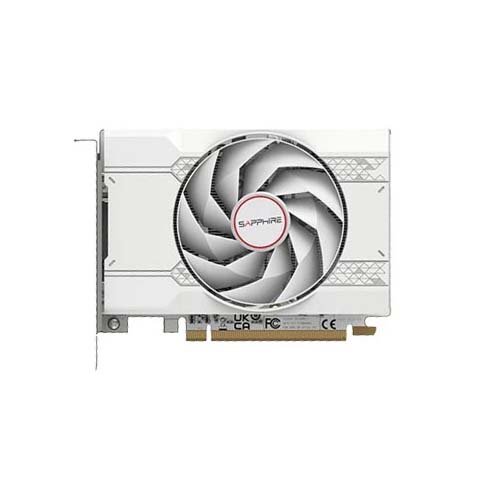

Sapphire Pulse RX 6500 XT ITX Pure OC 8GB Graphics Card 11314-06-20G
Overview :
GPU : AMD Radeon™ RX 6500 XT Graphics Card
6nm GPU : AMD RDNA™ 2 Architecture
Engine Clock : Boost Clock: Up to 2855 MHz, Game Clock: Up to 2695 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors : 1024
Infinity Cache : 16MB
Ray Accelerator : 16
Memory Size/Bus : 8GB GDDR6
Memory Clock : 18 Gbps Effective
Displays : Maximum 2 Displays
Resolution :: HDMI™: 7680×4320
DisplayPort1.4: 7680×4320
Interface : PCI-Express 4.0 x4
Output
1x HDMI
1x DisplayPort
BIOS Support : UEFI
Game Index : 1080P
Sapphire Features
Fuse Protection
Intelligent Fan Control
Precision Fan Control
AMD Features
AMD RDNA 2 Gaming Architecture
DirectX 12 Ultimate support
6nm GPU
PCI Express 4.0 support
AMD FreeSync Technology
DisplayPort 1.4 with DSC
HDMI support
Video Streaming up to 8K
AMD Radeon VR Ready Premium
AMD FidelityFX Super Resolution
Hardware Raytracing
AMD Radeon Image Sharpening
AMD Radeon Anti-Lag
AMD Radeon Software
Game Driver Optimizations
Cooler Type : Single Fan
Form Factor : 2 slot, ATX
Dimension: 152.4(L)X 110.4(W)X 36.07(H)mm
Power Consumption : 135W (Board Power)
OS : Linux®, Windows® 7*, Windows® 10, and Windows 11 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
Minimum 400 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
