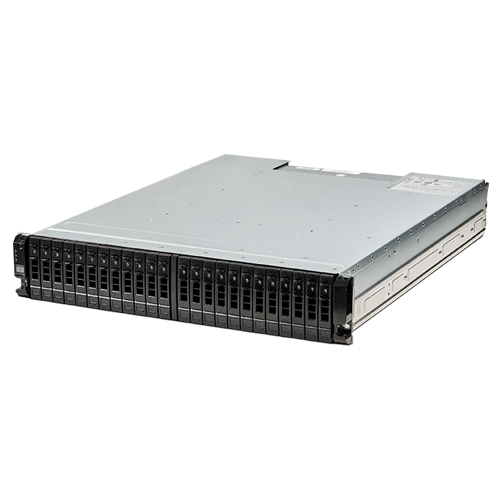

Seagate Exos E 2U24
Overview :
Exos E Series – JBOD Building Blocks
Seagate Exos E 2U24 is the datasphere’s high-performance, exceptional-capacity platform utilizing the latest SAS HDDs for maximum data access speed at a minimum TCO.
Modular Systems for Capacity
From reliability to intelligence, the Exos systems provide unfettered access to data and industry-first economics for lower TCO and highest capacity.
JBODS
High-capacity building blocks that easily grow with enterprises of any size.
Product Highlights
- Save space with up to 24 drives in a 2U rackmount enclosure
- Simplify overall product portfolio with this unique storage building block
- Safeguard data with intelligent fault diagnosis, resolution capabilities, persistent error logging, and monitoring
- Deliver data fast using Seagate hard drives, SSDs, or a combination of both
- Ensure data is available with N 1 PCMs, I/O modules, and dual data paths to all drives
- Maximum of 28.8GB/s in a dual controller configuration
Features :
Transfer Data Fast With a 12Gb/s SAS Interface
Get data to applications when and where it’s needed with up to 12Gb/s speed, right-sized capacity, and effective maximum throughput of 14.4GB/s in a single I/O module or 28.8GB/s in a dual controller configuration. Even with expansion capability up to 144 hard drives or solid state drives (SSD), there is no sacrifice of space for performance.
Deliver Versatile Architecture Built to Grow
This flexible enclosure includes support and capabilities to manage cables, universal ports, self-configuration controls, and standardized zoning. As a key building block of our modular systems-which make all critical components interchangeable regardless of size or budget-this enclosure’s modularity makes it easy to set up, maintain, and expand via interchangeable FRUs and hot-swappable components.
Ensure Applications Have Access to Critical Data
Safeguard your data with fault diagnosis, resolution capabilities, persistent error logging, and monitoring while ensuring maximum availability while harnessing high-availability features such as dual PCMs and I/O modules, as well as dual data paths to all drives.
Reduce Cost and Resources With Energy-Efficient Features
This enclosure is suited for high-capacity, transaction-dependent environments that demand tighter Service Level Agreement (SLA) requirements and need faster response times for optimal data availability. It meets stringent worldwide requirements for recycling and environmental friendliness, and can help you minimize environmental impact and recognize cost savings through high performance while reducing power consumption with 80 PLUS Gold certified adaptive cooling technology.
Build In Security at the Foundation of the Data Life Cycle
Protect your most valuable business assets with guaranteed compatible Seagate Secure™ hard drives.
Specification :
| Controller | Dual I/O modules per enclosure |
| Host/Expansion Interface | Three universal x4 12Gb/s mini-SAS HD connectors (SFF-8644) per I/O module |
| Management/Status Reporting | CLI via RS232 and 100Base-T port SES via SAS SFF-8644 ports |
| Maximum System Configuration | Dual host-connected enclosure with a maximum expanded configuration of 16 enclosures for a total of 384 drives |
| Device Support | Dual-port 12Gb/s and 6Gb/s SAS drives |
| Max Drives per Enclosure | 24 (for a full list of supported drives, please contact your account or sales manager) |
| Hot-Swappable Components | Drives, power cooling modules (PCM), and SBB I/O modules |
| Physical | Height: 88.9mm / 3.5 in (2 EIA units) |
| Width: 483mm / 19 in (IEC rack compliant) | |
| Depth: 630mm / 24.8 in | |
| Weight: 24kg / 53 lb (with drives) | |
| Power Requirements-AC Input | |
| Input Power Requirements | 100V-240V AC 60Hz/50Hz |
| Environmental Requirements | |
| Operating/Nonoperating Altitude | 0m to 3000m (0 ft to 10,000 ft) / -300m to 12,192m (-1000 ft to 40,000 ft) |
| Temperature Range | 5°C to 40°C (35°C max above 2000m) |
| Humidity | 20% to 80% noncondensing |
| Operating/Nonoperating Shock | 5 Gs, 10ms half sine / 30 Gs 10ms half sine |
| Operating/Nonoperating Vibration | 0.3 Gs rms / 1.04 Gs rms |
| Standards/Approvals | |
| Safety Certifications | UL 60950-1 (USA and Canada) |
| EN 60950-1 (European Union) | |
| IEC 60950-1 (CB certification) | |
| Emissions (EMC) | FCC CFR 47 Part 15 Subpart B Class A (United States) |
| ICES/NMB-003 Class A (Canada) | |
| EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3 (Europe) | |
| AS/NZS CISPR 32 Class A (Australia/New Zealand) | |
| VCCI Class A (Japan) | |
| KN 32 Class A/KN 35 (S. Korea) | |
| CNS 13438 Class A (Taiwan) | |
| Standard Marks/Approvals | North America (FCC, UL, cUL, ICES/NMB-003 Class A), Europe (CE), China (CCC – PSU only), Taiwan (BSMI), Korea (KC), Japan (VCCI), Australia/New Zealand (RCM – formerly C-tick) |
Download the Seagate Exos E 2U24 Datasheet (.PDF)
