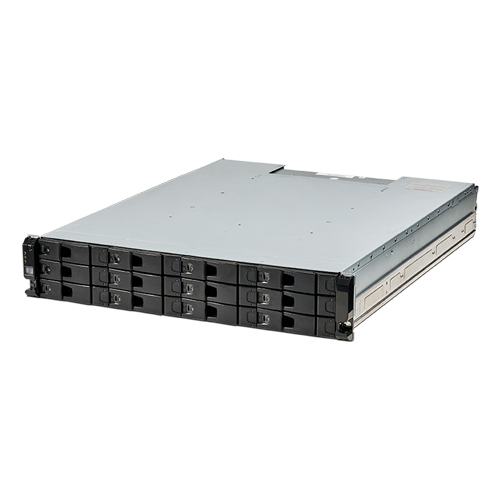

Seagate Exos X 2U12
Overview :
Exos X Series – RAID & Data Protection
Seagate Exos X 2U12 delivers advanced data protection, capacity, and performance at an entry-level cost.
Raid Systems
Next generation data protection to safeguard your company’s critical assets.
Product Highlights
- Save space but maximize capacity by expanding up to 120 drives
- Deliver data fast with 7GB/s throughput in an all-HDD configuration
- Rebuild drives faster than ever and reduce downtime with Seagate ADAPT data protection technology
- Opt for replication and snapshot features to meet critical enterprise requirements
Features :
Maximum Capacity and Consistent High Performance
Leverage both speed and performance at a budget-friendly price. This system enables even the smallest business to get data to applications fast, with maximum throughput of up to 7GB/s. Additionally, businesses can expand the system as data requirements grow, with up to 168TB of storage capacity in only a 2U rack mount.
Deliver Versatile Architecture Built to Scale
Use this flexible solution for costconscious businesses that require high read and write throughput as well as more storage. Application access to data is virtually instantaneous, and purpose-built modularity makes it easy to set up, maintain, and expand via interchangeable FRUs and hot-swappable components.
Ensure Applications Have Access to Critical Data
Take advantage of features that enable extreme cost efficiency while also providing up to 99.999% data availability. Parallel architecture, data replication, and fast streaming make access to data unfettered. In addition, exclusive Seagate ADAPT data protection technology supports fast and efficient drive rebuilds that virtually eliminate system downtime.
Reduce Cost and Resources
Meet stringent worldwide requirements for recycling and environmental friendliness with a nimble system that flexes as use cases evolve and capacity needs increase. It is perfectly suited for the SMB market due to high capacity and efficient management capabilities, and can help you minimize environmental impact and recognize cost savings through high performance.
Build In Security at the Foundation of the Data Life Cycle
Protect the most valuable business assets with Seagate Secure™ cybersecurity features and intelligent firmware -such as SFTP, SED support, and administrator access controls-that provide builtin security measures for reliable and safe file access, transfer, and management.
Specification :
| 3005 Controller Performance | 3.5GB/s read throughput |
| 3GB/s write throughput | |
| 4005 Controller Performance | 7GB/s read throughput |
| 5.5GB/s write throughput | |
| Expansion BODs | J1212 (2U12) |
| Maximum of 3x 2U12 EBODs (3005), 9x 2U12 EBODs (4005) | |
| Advanced Features | Thin provisioning |
| Snapshots | |
| Asynchronous replication | |
| High-Availability Features | Redundant hot-swap controllers |
| Redundant hot-swap drives, fans, power | |
| Dual power cords | |
| Hot standby spare | |
| Automatic failover | |
| Multi-path support | |
| Device Support | NL-SAS HDD |
| Data Protection | Seagate ADAPT |
| RAID levels supported: 0, 1, 3, 5, 6, 10, and 50 | |
| System Configuration (12, 3.5-in devices) | Up to 12 drives per chassis |
| 168TB max capacity per chassis (based on 14TB HDDs) | |
| Physical | Height: 87.9mm / 3.46 in |
| Width: 443mm / 17.44 in | |
| Depth: 630mm / 24.8 in | |
| Width w/ear mounts: 483mm / 19.01 in | |
| Weight: 17kg / 38 lb | |
| Weight (with drives): 32kg / 71 lb | |
| Hosts | |
| External Ports | 4 per system (3005), 8 per system (4005) |
| Fibre Channel Models | Host speed: 16Gb/s, 8Gb/s Fibre Channel |
| Interface type: SFP | |
| iSCSI Models | Host speed: 10Gb/s, 1Gb/s iSCSI |
| Interface type: SFP | |
| SAS Models | Host speed: 12Gb/s, 6Gb/s SAS |
| Interface type: HD Mini-SAS | |
| System Configuration | |
| System Memory | 16GB per system |
| Volumes per System | 1024 |
| Cache | Mirrored cache: Yes |
| Supercapacitor cache backup: Yes | |
| Cache backup to flash: Yes – nonvolatile | |
| Management | |
| Interface Types | 10/100/1000 Ethernet, Mini USB |
| Protocols Supported | SNMP, SSL, SSH, SMTP, HTTP(S) |
| Management Consoles | Web GUI, CLI |
| Management Software | Seagate Systems storage management console |
| Remote diagnostics | |
| Nondisruptive updates | |
| Volume expansion | |
| Power Requirements-AC Input | |
| Input Power Requirements | 100V-240V AC 50Hz/60Hz (346W maximum continuous) |
| Heat Dissipation | 1181 BTUs/hour |
| Gold-rated power supplies | |
| Environmental Requirements | |
| Operating/Nonoperating Altitude | RBOD: 5°C to 35°C (41°F to 95°F), EBOD: 5°C to 40°C (41°F to 104°F) / -40°C to 70°C (-40°F to 158°F) |
| Operating/Nonoperating Humidity | 20% to 80% noncondensing / 5% to 100% noncondensing |
| Operating/Nonoperating Shock | 5.0 Gs, 10ms, half sine pulses (Y-axis) / 30.0 Gs, 10ms, half sine pulses |
| Operating/Nonoperating Vibration | 0.21 Gs rms 5Hz to 500Hz random / 1.04 Gs rms 2Hz to 200Hz random |
| Standards/Approvals | |
| Safety Certifications | UL 60950-1 (United States) |
| CAN/CSA-C22.2 No.60950-1-07 (Canada) | |
| EN 60950-1 (European Union) | |
| IEC 60950-1 (International) | |
| CCC (China PRC – CCC Power Supplies) | |
| BIS (India – BIS Power Supplies) | |
| Emissions (EMC) | FCC CFR 47 Part 15 Subpart B Class A (United States) |
| ICES/NMB-003 Class A (Canada) | |
| EN 55032 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3 (Europe) | |
| AS/NZS CISPR 32 Class A (Australia/New Zealand) | |
| VCCI Class A (Japan) | |
| KN 32 Class A/KN 35 (S. Korea) | |
| CNS 13438 Class A (Taiwan) | |
| Harmonics | EN 61000-3-2 (EU) |
| Flicker | EN 61000-3-3 (EU) |
| Immunity | EN 55024 (EU) |
| KN 24/KN 35 (S. Korea) | |
| Environmental Standards | The RoHS Directive (2011/65/EU) |
| The WEEE Directive (2012/19/EU) | |
| The REACH Directive (EC/1907/2006) | |
| The Batteries Directive (2006/66/EC) | |
| Standard Marks/Approvals | Australia/New Zealand (RCM), Canada (cUL/ICES/NMB-003 Class A), China (CCC – PSU only), European Union (CE), Japan (VCCI), South Korea (KC), Taiwan (BSMI), United States (FCC/UL) |
Download the Seagate Exos X 2U12 Datasheet (.PDF)
