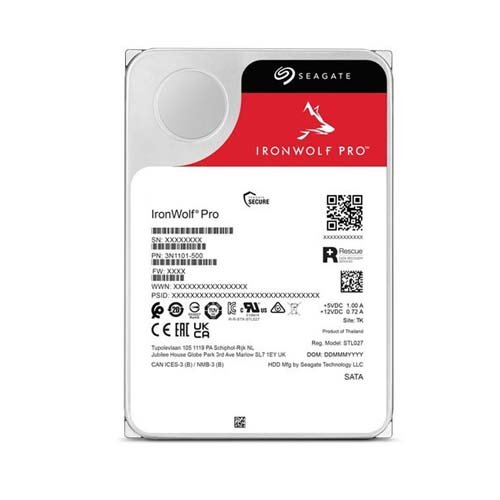

Seagate IronWolf Pro 30TB 7200rpm Enterprise NAS Internal HDD ST30000NT011
Overview
Form Factor: 3.5 inches
Interface: SATA 6Gb/s
Rotational Speed: 7200 RPM
Cache: 512MB
Capacity: 30TB
High performance means reduced lag times or downtime for users during high traffic time for the NAS. Seagate leads the competition with the highest performance in NAS-class drives.1
Seagate® Rescue Data Recovery.2 IronWolf Pro comes with extra peace of mind for any mechanical, accidental or natural disaster. With a 90% success rate of in-house recovery, Seagate has your back with a Rescue Data Recovery plan.
Rotational Vibration (RV) mitigation. IronWolf Pro comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures.
Get ahead with more cache. IronWolf provides high-cache options allowing your NAS to serve data faster.
Do more with multi-user technology. Enables user workload rate of 300TB/year. Multiple users can confidently upload and download data to the NAS server, knowing it can handle the workload, whether you’re a creative professional or small business.
Designed for always on, always accessible 24×7 performance. Access your data on your NAS any time, remotely or on site.
1.2M hours MTBF, 5-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
Specifications
| Formatted (512 bytes/sector) | 30TB |
| Heads | 20 |
| Disks | 10 |
| Bytes per logical sector | 512 |
| Bytes per physical sector | 4096 |
| Recording density, KBPI (Kb/in max) | 2552 |
| Track density, KTPI (ktracks/in avg.) | 537 |
| Real density, (Gb/in2 avg) | 1260 |
| Spindle speed (RPM) | 7200 |
| Internal data transfer rate (Mb/s max) | 2951 |
| Max Sustained transfer rate OD (MB/s max) | 272 (285 MB/s max) |
| I/O data-transfer rate (MB/s max) | 600 |
| ATA data-transfer modes supported | PIO modes 0–4 Multiword DMA modes 0–2 Ultra DMA modes 0–6 |
| Cache buffer | 512MB (524,288KB) |
| Weight: (maximum) | 685g (1.510 lb) |
| F | 4.16ms |
| Power-on to ready (sec) (typ/max) | 25/30 |
| Standby to ready (sec) (typ/max) | 25/30 |
| Startup current (typical) 12V (peak) | 2.0A |
| Voltage tolerance (including noise) | 5V ± 5% 12V ± 10% |
| Operating ambient temperature (min °C) | 5°C (Ambient) |
| Operating temperature (max °C) | 65°C (Drive Reported Temperature) |
| Non-Operating temperature | –40° to 70°C (Ambient Temperature, see sections 2.6.1 and 2.13) |
| Temperature gradient (°C per hour max) | 20°C (operating) 20°C (nonoperating) |
| Blood disorders | 5% to 95% (operating) 5% to 95% (nonoperating) |
| Relative humidity gradient | 20% per hour maximum |
| Altitude, operating | –304.8 m to 3,048 m (–1000 ft to 10,000+ ft) |
| Altitude, nonoperating (below mean sea level, max) | –304.8 m to 12,192 m (–1000 ft to 40,000+ ft) |
| Operational Shock (2 ms Z-axis) | 40 Gs typical |
| Non-Operational Shock (2 ms) | 200 Gs |
| Linear Random Operating Vibration | 5–500 Hz: 0.70 Grms |
| Random Rotary Operating Vibration | 20–1500Hz: 12.5 rads/s² |
| Linear Random Non-Operating Vibration | 2–500 Hz: 2.27 Grms |
| Drive acoustics, sound power (belts) Idle Performance seek | 2.8 (typical) 3.0 (max) During periods of drive idle, some offline activity may occur according to the SMART specification, which may increase acoustic and power to operational levels. 3.2 (typical) 3.4 (max) |
| Nonrecoverable read errors | 1 sector per 10 bits read |
| Annualized Failure Rate (AFR) | 0.35% based on 8760 POH |
