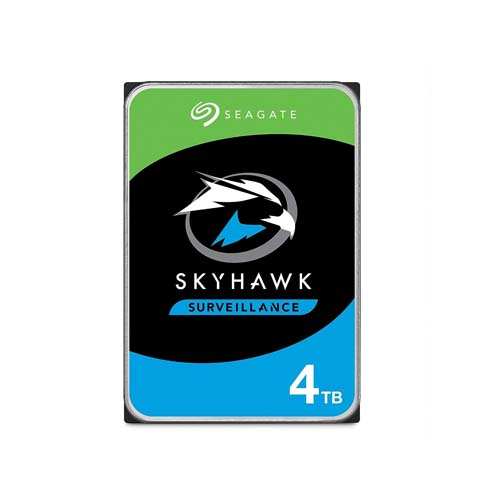

Seagate Skyhawk 4TB Surveillance Desktop Internal Hard Disk Drive ST4000VX016
Overview :
ImagePerfect firmware is designed to ensure seamless video footage capture in 24×7
surveillance workloads that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your surveillance storage by
focusing on prevention, intervention, and recovery options. Included is RAID
RapidRebuild, which provides 3× faster volume rebuilds over traditional RAID rebuilds.
Unparalleled data protection with included 3-year Rescue Data Recovery Services plan,
helping protect important video data with Seagate’s in-house data recovery services.
RV sensors built in allow drives to maintain performance in multi-bay systems, giving
customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth,
uninterrupted footage.
1 M hours MTBF, 3-year limited warranty represents an improved total cost of
ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions, which improves
reliability in surveillance solutions. Tarnish-resistant components help protect drive from
environmental elements, increasing field reliability
Technical Detail
Brand : Seagate
Model : ST4000VX016
Technical Spec
Interface : SATA 6 Gb/s
Recording Technology : CMR
Drive Design : Air
Drive Bays Supported : Up to 16
Cameras Supported : Up to 64
RV Sensors : Yes
Max Sustained Transfer Rate OD (MB/s) : 180MB/s
Cache (MB) : 256MB
Tarnish Resistant : Yes
Load/Unload Cycles : 600,000
Nonrecoverable Read Errors Rate, Max : 1 per 10E14
Power-On Hours per year : 8,760
Workload Rate Limit (WRL) : 180
Mean Time Between Failures (MTBF) (hours) : 1000000 hr
Warranty, Limited (years) : 3
Startup Current, Typical (12V, A) : 1.8 A
Average Operating Power (W) : 3.7 W
Idle Average (W) : 2.5 W
Standby Mode/Sleep Mode, Typical (W) : 0.25 W
Voltage Tolerance (5V) : ±5%
Voltage Tolerance (12V) : ±10%
Operating (ambient, min °C) : 0°C
Operating (drive reported, max °C) : 4 65°C
Nonoperating (ambient, min °C) : -40°C
Height (mm/in, max) : 20.20 mm/0.795 in
Width (mm/in, max) : 101.6 mm/4.0 in
Depth (mm/in, max) : 146.99 mm/5.787 in
Weight (g/lb, typical) : 630 g/1.389 lb
