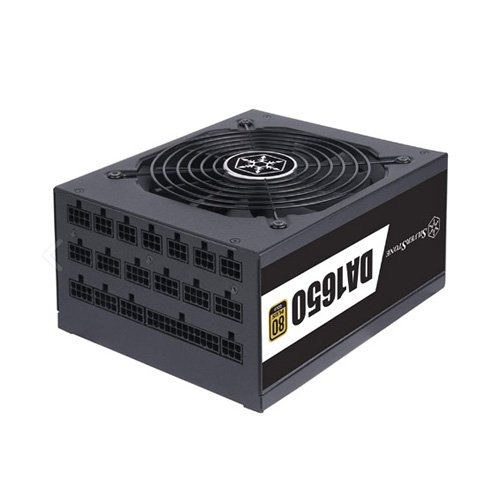

SilverStone 1650W 80 Plus Gold Fully Modular Power Supply SST-DA1650-G
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity .Flat cables have much greater flexibility to allow for tighter folding and management of cables. 180mm depth sets new standard for 1650W+ PSUs with modular cables .Powerful single +12V rail design, perfect for high-end components, upgrades and overclocking . ±2% regulation and low ripple & noise performance for high stability . Ultra silent 135mm FDB fan with intelligent RPM control provides cool performance at higher loading conditions and silent operation during idle to low loading conditions. Fanless mode operation works up to 30% loading (495W).
Technical Details
Brand : SilverStone
Model : SST-DA1650-G
Specs
Max. DC Output : 1650W
Power density : 711W per liter
Color : Black.（Lead-Free Paint）
Combined +3.3V & +5V : 130W
Combined +12V : 1650W
Input Voltage : 90V~264V
Input Frequency Range : 47Hz ~ 63Hz
PFC : Active PFC（PF>0.9 at Full Load）
Efficiency : 87% ~ 90% (at 20% ~ 100% loading)
MTBF : 100,000 hours
Operating temperature : 0°C ~ 50°C
Protection : Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection
Connectors : 1 x 24 / 20-Pin motherboard connector (600mm) 4 x 8 / 4-Pin EPS / ATX 12V connector (“750mm” x 4) 8 x 8 / 6-Pin PCIe connector (“600mm / 150mm” x 4)
4 x 8 / 6-Pin PCIe connector (“600mm” x 4) 16 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 4) 6 x 4-Pin Peripheral connector (“600mm / 150mm / 150mm” x 2)
1 x 4-Pin Floppy adapter connector (100mm)
Cooling System : Single 135mm FDB fan
Form factor : ATX / PS/2
Noise Level : 0dBA ~ 36dBA
Dimension : 150 mm (W) x 86 mm (H) x 180 mm (D) 5.91″ (W) x 3.39″ (H) x 7.09″ (D)
Certification : 80 PLUS Gold
Other : GPU Support list Compatible with ATX12V v2.4
