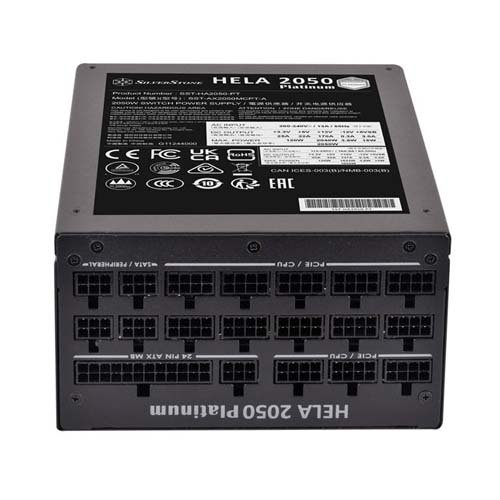

Silverstone HELA 2050 Platinum Cybernetics Platinum 2050W Fully Modular ATX Power Supply SST-HA2050-PT
Compact and high density design with a depth of 180mm for easy integration
Intel ATX12V 2.52 support
Built-in MCU semi-fanless mode to achieve optimized cooling performance
2050W 24/7 continuous power output with 50℃ operating temperature
Super flexible black flat cables
100% modular cables
12-Pin GPU connector support
Technical Details
Product No. : SST-HA2050-PT
Model (safety certification) : SST-AX2050MCPT-A
Color : Black (lead-free paint)
Max. DC Output : 2050W
Power density : 882W per liter
Combined +3.3V & +5V : 120W
Input Voltage : 2050W: 200~240 Vrms | 1650W: 103 ~ 264 Vrms
PFC : Active PFC (PF>0.95 at full load)
MTBF : 100,000 hours
Combined +12V : 2040W
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
1 x 12-Pin GPU connector
18 x 8 / 6-Pin PCIe connectors
12 x SATA connectors
3 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 25A | 22A | 170A | 3.0A | 0.3A |
| Min.(Amps) | 0.0A | 0.0A | 0.0A | 0.0A | 0.0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 30mV | 30mV | 60mV | 30mV | 60mV |
Weight : 4.34 kg
