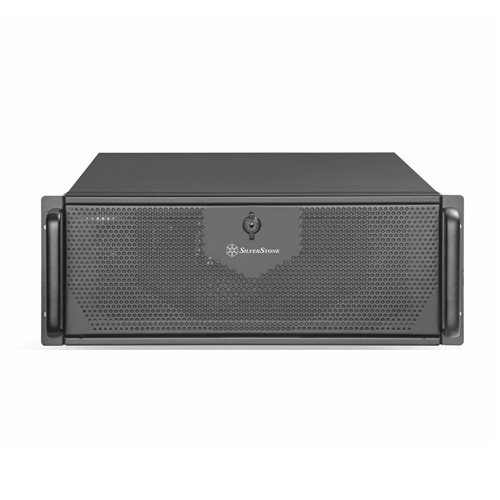

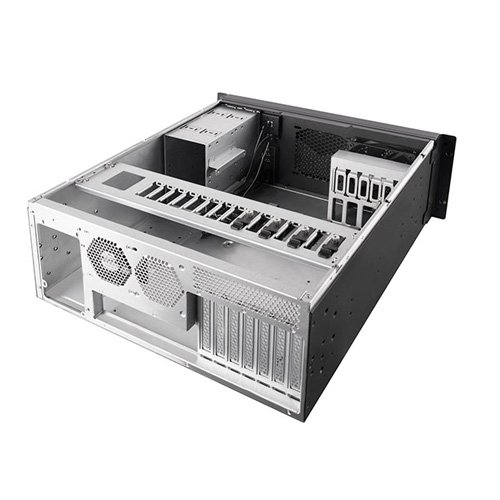

Silverstone RM42-502 4U rackmount server chassis with liquid cooling compatibility SST-RM42-502B
Overview
Supports up to SSI-EEB motherboards
Front panel features anti-theft lock design providing additional security
Supports 240mm liquid cooling radiators
Two 5.25″ drive bays directly compatible with 3.5″ or 2.5″ drives
Includes one USB Type-C interface
Includes sliding rail mounting holes for quick rail installation
Can be placed upright or horizontal
Dual-purpose chassis – Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal placements
Distinctive exterior
Distinctive front panel features anti-theft lock design to provide additional security along with one USB Type-C interface
Cooling capabilities
RM42-502 comes pre-installed with 1 x 120mm fan at the front and 1 x 80mm fan at the rear achieving front-to-back directional airflow out of the box, and unlike most rackmounts cases on the market, RM42-502 supports up to 240mm liquid cooling radiators
Expansion card protection
Expansion card holder and retainer* are included for total support of expansion / graphics card. They help prevent dislodging during movement and transport.
*The use of expansion card retainer requires card with extension bracket
Specifciations
Model No. : SST-RM42-502B (Black)
Chassis form factor : 4U
Motherboard : SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Material : Steel
Drive Bay
External : 5.25″ x 2 (compatible with 2.5″ x 4 or 3.5″ x 2)
Internal : 2.5″ x 1
Power Supply : PS2 (ATX) (PSU + optical drives / 5.25″ devices = 442mm) / Mini Redundant
Cooling system
Front : 120mm x 2 (120mm x 1 fan included)
Rear : 80mm x 2 (80mm x 1 fan included)
Radiator support
Front : 120mm x 2 / 240mm x 1
Limitation of CPU cooler
w/ GPU holder: 130mm
w/o GPU holder: 148mm
Expansion card
Length w/ expansion card retainer: 337mm
Length w/o expansion card retainer: 426mm
Width w/ GPU holder: 116mm
Width w/o GPU holder: 154mm
Expansion Slot : 7
Front I/O Port
USB Type-C x 1, USB 3.0 x 2, Audio x 1, MIC x 1
LED indicator
Power status x 1, HDD activity x 1
Dimension
430mm (W) x 176mm (H) x 468mm (D)
Net Weight
9.9kg
Extra
Side switch for chassis intrusion security
