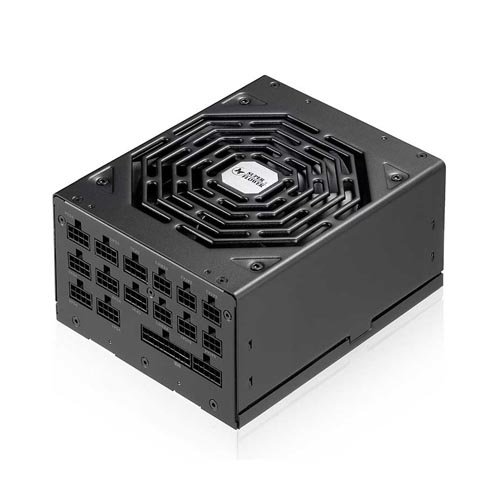

Super Flower Leadex Platinum SE 1200 Watt Power Supply Black SF-1200F14MP
Overview :
Super Flower Leadex Platinum SE series PSU are 80PLUS certified with 100% fully modular cable design, our R&D team’s latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX Platinum SE series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.
- 100% Full Modular Cabling Design For Easy Cable Management.
- 80 PLUS® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
- Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
- Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification.
- Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
- Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection.
- Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
- Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
- 100% Japanese 105°C Capacitors.
- Ultra Silent 140mm Dual Ball Bearing Fan.
- More than 2,000 times On/Off test.
- Unleaded Green Materials with RoHS/WEEE Compliance.
- Perfect For Professional & High Performance Gaming System.
- Exclusive Patents
1.ECO Intelligent Thermal Control System.
2.High Power Vertical Double Layer Main Transformer (China Patent No.:ZL2009 2 0273193.2 ; Taiwan Patent No.:M381155 )
This product is designed for personal desktop system and high-end gaming systems, warranty void if use for the following special-purpose system:
- Industrial grade server system.
- Special ultra-high load operation system (for example: bitcoin mining machine… etc.)
- Test equipment system (for example: memory RAM, VGA graphic card or USB device test)
Specification :
| Model No | SF-1200F14MP |
| Wattage | 1200W |
| 80+ Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) |
| Intel Power Design Guide | V2.92 |
| AC Input | Frequency | 100-240Vac | 60 / 50Hz |
| Fan Size | 140mm Dual Ball Bearing Silent Fan |
| Dimension | 180mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP/ OCP/ OPP/ SCP/ UVP/ OTP/ NLO/ SIP |
| Safety | cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC / EAC |
| Temperature | Passed 50℃ Hot Testing |
| Cable Specs | |
| 20+4Pin | One cable (600mm) |
| (4+4Pin) CPU | Two cables (750mm) |
| PCI-E 6+2Pin | Four cables (750mm) |
| SLI (2 x PCI 6+2Pin) | Two cables (750+150mm) |
| 3 SATA | Four cables (550+100mm) |
| 3 Molex | One cable (550+100mm) |
| 2Molex + 1FDD | One cable (550+100mm) |
| Warranty | 10 Years |
