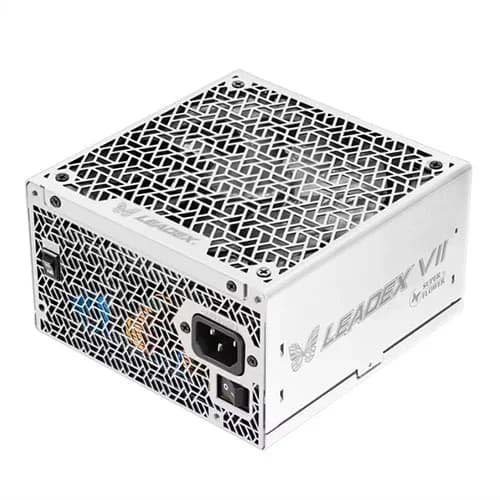

Super Flower Leadex VII XG 1300W 80 plus Gold Full Modular ATX 3.1 PCIe 5.1 Power Supply SF-1300F14XG White
Overview :
SF-1300F14XG(BK) ATX3.0 / ATX3.1 Compatible, Pcie 5.1 ready, 80PLUS Gold & Cybenetics Platinum Certified, Best 1300W for gaming
LEADEX VII XG is fully compatible with Intel ATX 3.0 / ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-Pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode
Specification :
| Model No.: | SF- 1300F14XG |
| Transform Efficiency | 20%: 87% ; 50% : 90% ; 100% : 87% (115V Internal Gold) Efficiency |
| Cybernetics Certified | Efficiency: Platinum / Efficiency 230V: Platinum |
| Intel Power Design Guide | EPS Ver. 2.92 & ATX 3.0 / ATX 3.1 |
| AC Input | Frequency | 100V-240V | 60 / 50Hz , Full Range APFC |
| Fan Size | 14cm FDB FAN |
| Dimension | 150mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
| Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
| Temperature | Passed 50℃ Hot Testing |
| Cable Wires | Detachable |
| 20+4 Pin | One Cable (600mm) |
| 8(4+4) Pin CPU | Two Cables (700mm) |
| PCI 6+2 Pin | Four Cables (700mm) |
| 4 SATA | Three Cables (550+130+130+130mm) |
| 4 Molex | One Cable (550+150+150+150mm) |
| PCIe 16 Pin | One Cable (700mm) |
