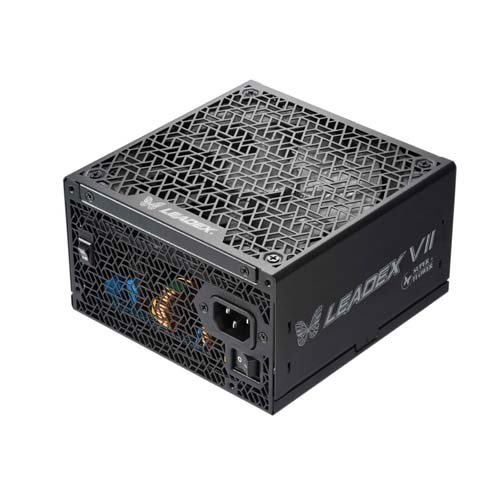

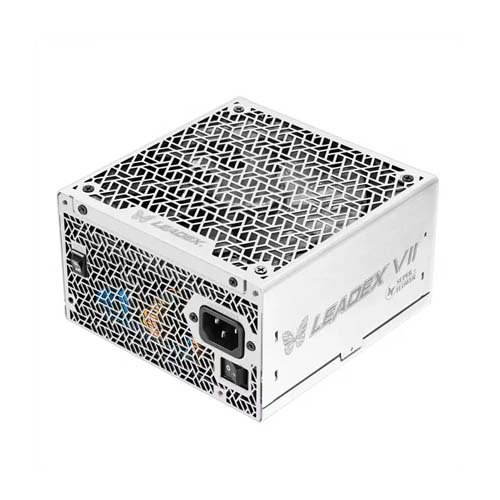

Super Flower Leadex VII XG 850W 80+ Gold Full Modular ATX 3.0 PCIe 5.0 Power Supply SF-850F14XG
Overview :
- Full modular design with all ribbon cables to maximize flexibility
- 80 PLUS Gold Certified, 87% 90% 87% Efficiency At 20% 50% 100% Rated Load
- Cybenetics Platinum Certified, 89% & <91% overall efficiency (115 INPUT), 91% & <93% overall efficiency (230 INPUT)
- Intel® ATX 3.0 Certified: Compliant with ATX 3.0 standard & PCIe 5.0 ready, resisting transient power spikes.
- Modern Standby Compatible.
- Full Range Auto Voltage Detection Design 100V~240V (Active PFC)
- 140mm Fluid Dynamic Bearing Fan
- 100% Japanese 105°C Capacitors
- Zero RPM with fan ECO Mode.
- Full-Bridge & Resonant LLC Topology with DC-to-DC Conversion.
Specification :
| Type | ATX (ATX 3.1 Compatible) |
| Maximum Power | 850W |
| Fans | 1 x 140 mm |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| SATA Power Connector | 12 |
| Haswell Support | Ready |
| CrossFire | CrossFire Ready |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| PSU Noise Level | Cybenetics Standard ++ |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 90 – 264 V |
| Input Frequency Range | 47 – 63 Hz |
