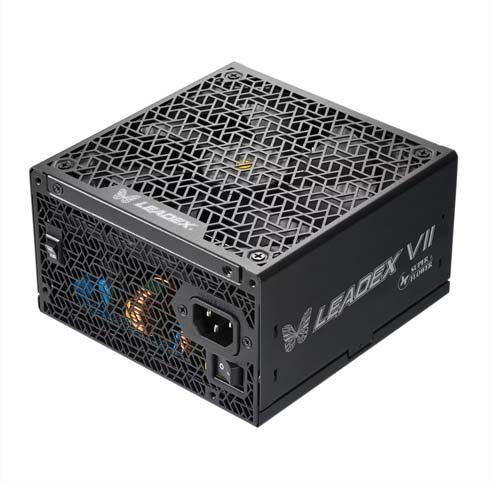

Super Flower Leadex VII XP PRO 850W 80 plus Platinum Full Modular ATX 3.1 PCIe 5.1 Power Supply SF-850F14XP
Overview :
SF-850F14XP(BK) ATX 3.1 Compatible, Pcie 5.1 ready, 80PLUS & Cybenetics Platinum Certified, Best 850W for gaming
LEADEX VII Platinum PRO is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual Patented 9-Pin Super Connector on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.
Specification :
| Model No.: | SF- 850F14XP |
| Transform Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency |
| Cybernetics Certified | Efficiency: Platinum / Efficiency 230V: Platinum |
| Intel Power Design Guide | EPS Ver. 2.92 & ATX 3.1 |
| AC Input | Frequency | 100V-240V | 60 / 50Hz , Full Range APFC |
| Fan Size | 14cm FDB FAN |
| Dimension | 150mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
| Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
| Temperature | Passed 50℃ Hot Testing |
| Cable Wires | Detachable |
| 20+4 Pin | One Cable (600mm) |
| 8(4+4) Pin CPU | Two Cables (700mm) |
| PCI 6+2 Pin | Three Cables (700mm) |
| 4 SATA | Three Cables (550+130+130+130mm) |
| 4 Molex | One Cable (550+150+150+150mm) |
| PCIe 12+4 Pin | One Cable (700mm) |
| model no.: SF-850F14XP | ||||||
| AC INPUT | 100-240V~ 10A 60Hz/50Hz | |||||
| 200-240V~ 10A 60Hz/50Hz (Only for China/Korea) | ||||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
| 850W | Max Output Current | 20A | 20A | 70.8A | 0.5A | 2.5A |
| Max Combined Wattage | 100W | 849.6W | 6W | 12.5W | ||
| 850W | ||||||
