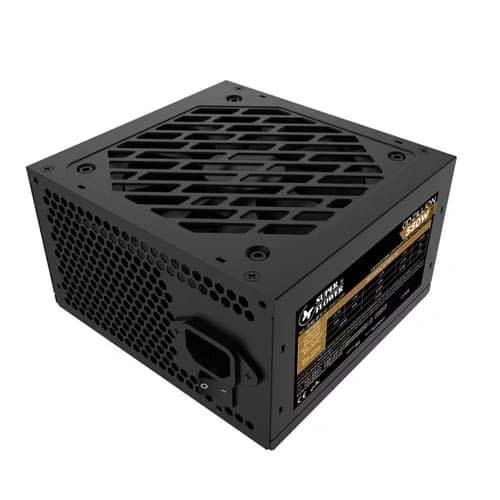

Super Flower Zillion DB 550W Bronze SMPS Power Supply SF-550Z12DB
Overview :
- Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards.
- Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
- 80 PLUS® Bronze Certified, 85% 88% 85% Efficiency At 20% 50% 100% Rated Load.
- Comply With ATX 12V v2.3, EPS 12V v2.92 Specification.
- PCI-E (6+2) Pin Connector For High-End Graphic Card Requirement.
- OVP / SCP / OPP / NLP
- All Flat Cables.
- 105°C Taiwanese Main Capacitor.
Specifications
| Model | Zillion DB Bronze 550W | |
| Wattage | 550W | |
| Efficiency | 20%: 85% ; 50% : 88% ; 100% : 85% (230V EU Internal Bronze) | |
| Intel Power Design Guide | ATX 12V v2.3, EPS 12V v2.92 Specification. | |
| AC Input / Frequency | 200V~240V | 50-60Hz | |
| Fan Size | 120mm Sleeve Fan | |
| Dimension | 140mm(L) x 150mm(W) x 86mm(H) | |
| Protection | OVP / SCP / OPP / NLP | |
| Safety | TÜV / CB / CE / RoHS | |
| Weight | Around 1.5 KG | |
| Cable Spec | ||
| 20+4Pin | Fixed Cables | 1 (500 mm) |
| 8Pin & (4+4Pin) CPU | 1 (600mm+150mm) | |
| SLI (2 x PCI 6+2pin) | 1 (500mm+150mm) | |
| 2SATA + 1PATA | 2 (450mm+150mm+150mm) |
| model no.: SF-550Z12DB | ||||||
| AC INPUT | 200-240V~ 5A 50-60Hz | |||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | 5VSB | |
| 550W | Max output Current | 16A | 16A | 42A | 0.3A | 3A |
| Max combined Wattage | 100W | 504W | 3.6W | 15W | ||
| 550W |
