Supermicro AS-2124GQ-NART A+ 2U AMD Server
Overview :
1. High Density 2U System with NVIDIA® HGX™ A100 4-GPU; Highest GPU communication using NVIDIA® NVLINK™, 4 NICs for GPUDirect RDMA (1:1 GPU Ratio)
2. Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
3. Direct connect PCI-E Gen4 Platform with NVIDIA® NVLink™ v3.0 up to 600GB/s interconnect
4. On board BMC supports integrated IPMI 2.0 + KVM with dedicated 10G LAN
5. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)

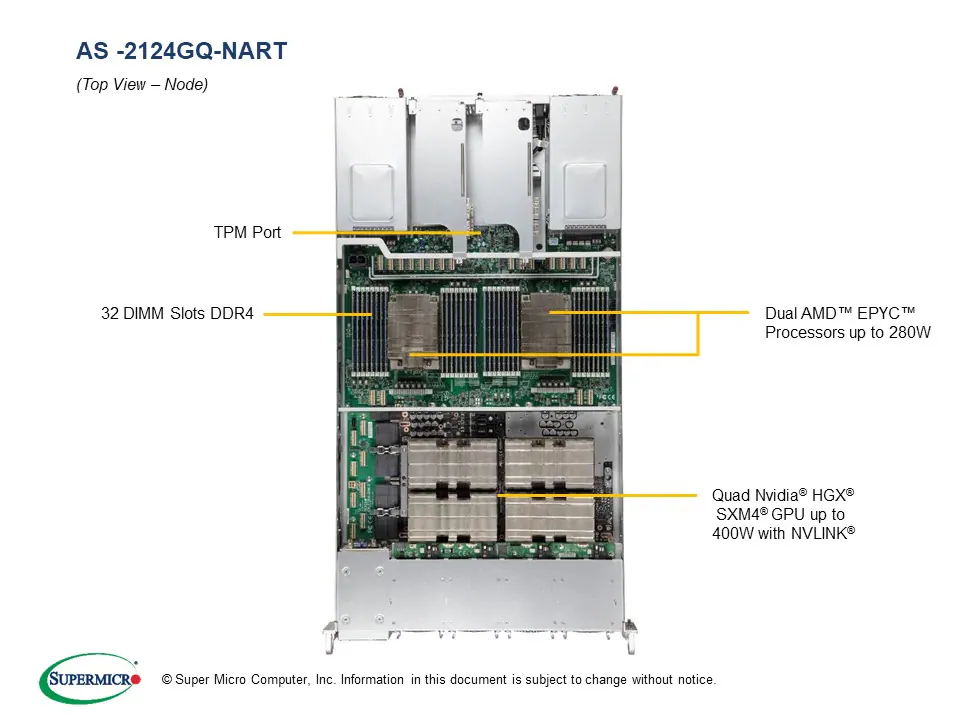

6. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
7. 4 PCI-E Gen 4 x16 (LP), 1 PCI-E Gen 4 x8 (LP)

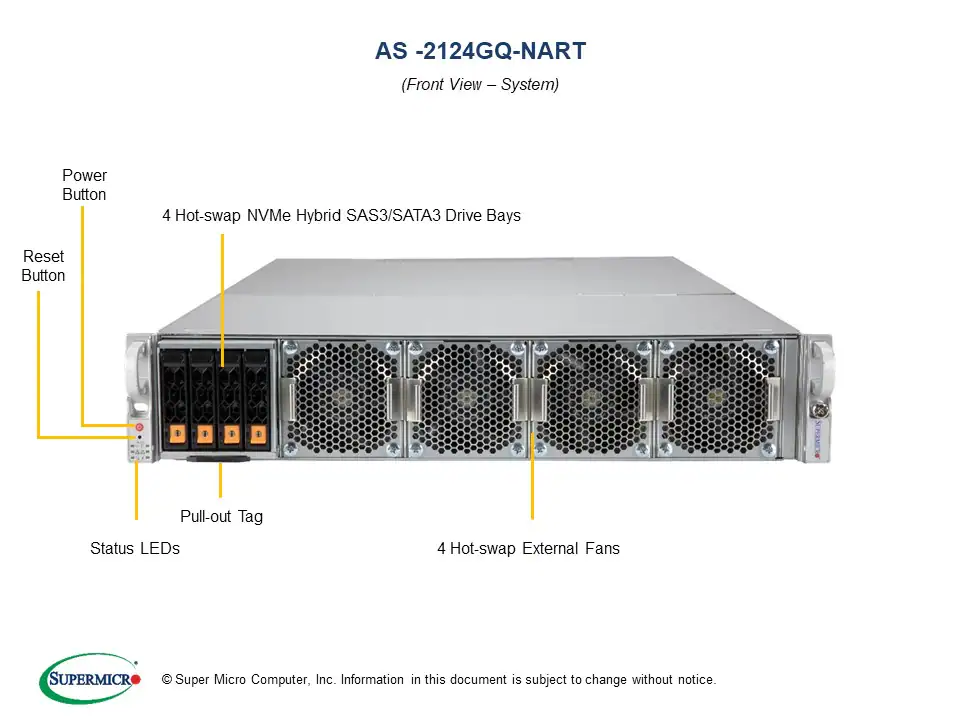

8. 4 Hot-swap 2.5″ drive bays (SAS/SATA/NVMe Hybrid)
9. 2x 2200W Platinum Level power supplies with Smart Power Redundancy
Specification :
| Motherboard | |
| Motherboard | Super H12DSG-Q-CPU6 |
| Processor/Cache | |
| CPU | AMD EPYC 7402 2.8 GHz 24-Core Server Processor PSE-ROM7402-0046 x 2 |
| Socket SP3 | |
| Supports CPU TDP up to 280W * | |
| Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | |
| Cores | Up to 128 Cores (64 per CPU) |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization |
| GPU | Supermicro GPU-NVTHGX-A100-SXM4-4 HGX A100-4 GPU Baseboard – 4 x A100 SXM4 40 GB HBM2 |
| Supported GPUs | HGX A100 4-GPU 40GB/80GB SXM4 Multi-GPU Board |
| CPU-GPU Interconnect | PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink™ GPU-to-GPU Interconnect |
| SSD | SuperMicro Intel D3-S4510 1.92T SATA 6GB/S 3D TLC 2.5 7MM (HDS-I2T0-SSDSC2KB019T8) x 4 |
| SuperMicro MCP-220-00187-0B – Supermicro 2.5 Thin Profile Drive Tray x 4 | |
| System Memory | Supermicro (Hynix) 32GB 288-Pin DDR4 3200 (PC4-25600) Server Memory (MEM-DR432LC-ER32) x 16 |
| Memory Capacity | 32 DIMM slots |
| Up to 8TB 3DS ECC DDR4-3200MH SDRAM | |
| Memory Type | 3200MHz ECC DDR4 SDRAM |
| On-Board Devices | |
| Chipset | System on Chip (SoC) |
| Network | Dual RJ45 10GbE-aggregate host LAN, RJ45 1GbE IPMI |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Graphics & System Management | ASPEED AST2600 BMC |
| Input / Output | |
| SATA | 4 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GbE-aggregate host LAN ports |
| 1 RJ45 1GbE Dedicated IPMI management port | |
| USB | 2 USB 3.0 ports (rear) |
| Video | 1 VGA Connector (rear) |
| Others | 1 COM port (header) |
| 1 TPM 2.0 (header) | |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| Management | |
| Software | Watchdog |
| KVM with dedicated LAN | |
| SuperDoctor® 5 | |
| IPMI 2.0 | |
| SSM , SPM , SUM | |
| PC Health Monitoring | |
| CPU | 4+1 Phase-switching voltage regulator |
| Monitors for CPU Cores, Chipset Voltages, Memory. | |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors | |
| Fans with tachometer monitoring | |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors | |
| Chassis | |
| Form Factor | 2U Rackmountable |
| Model | CSE-228GTS-R2K21P |
| Dimensions | |
| Height | 3.5″ (89mm) |
| Width | 17.2″ (437mm) |
| Depth | ~32.7″ (830.3mm) |
| Weight | Net Weight: 78.5 lbs (35.6 kg) |
| Gross Weight: 88.5 lbs (40.1 kg) | |
| Package Dimensions | 45.5″ L x 22.5″ W x 11″ H |
| Available Colors | Black |
| Drive Bays / Storage | |
| Hot-swap | 4 Hot-swap 2.5″ drive bays (SATA/NVMe Hybrid or SAS with optional HBA) |
| Expansion Slots | |
| PCI-Express | 4 PCI-E Gen4 x16 (LP) slots – supporting HGX A100 4-GPU’s 1:1 connection to 4 NICs |
| 1 PCI-E Gen 4 x8 (LP) slot | |
| System Cooling | |
| Fans | 4 Hot-swap heavy duty fans |
| Power Supply | |
| Power Supply | 2200W Redundant Power Supplies with PMBus |
| Total Output Power | 1000W: 100 – 127Vac |
| 2200W: 220 – 240Vac | |
| Dimension (W x H x L) | 107 x 82 x 204 mm |
| Input | 100-127Vac / 12-9.5A / 50-60Hz |
| 220-240Vac / 11-10A / 50-60Hz | |
| Output Type | Gold Finger Connector |
| Certification | Platinum Level |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | |
| Product SKUs | |
| Product SKUs | A+ Server 2124GQ-NART (Black) |
