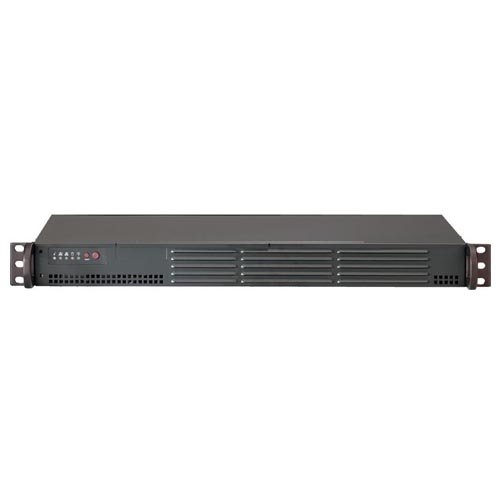

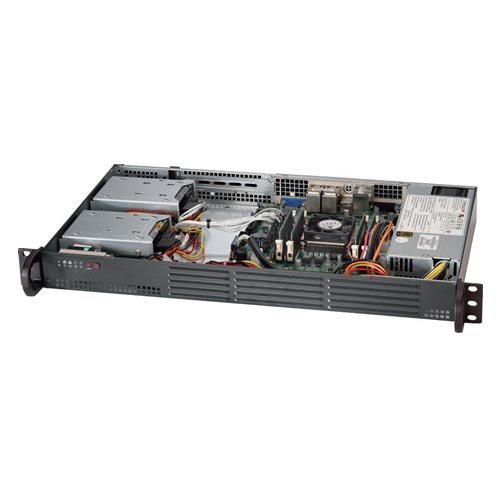

Supermicro CSE-504-203B Server Chassis 1U Rackmount
Overview :
Rackmount Mini 1U w/ 200W 80 Plus Gold Power Supply (PWS-203-1H) w/ PFC and Low-Noise, for motherboard up to 6.7in x 6.7in maximum size) – Internal Drive Bays Configuration : 1x 3.5in Internal Drive Bay with 1x Half-height / Half-length PCI (or) 2x 3.5in Internal Drive Bay (or) 2x 2.5in Internal Drive Bay with 1x Full-height / Half-length PCI (or) 4x 2.5in Internal Drive Bay – (Black)
Specification :
| Device Type | SuperChassis 504-203B |
| Dimensions (WxDxH) | Height 1.7″ (43 mm) x Width 17.2″ (437 mm) x Depth 9.8″ (249 mm) |
| Color | Black |
| Form Factor | 9.8″-Depth Mini 1U chassis support for maximum motherboard size – 6.7″ x 6.7″ |
| Weight | 10 lbs (4.5kg) |
| Processor | |
| Compatible Processors | Single Processor Support |
| Expansion / Connectivity | |
| Expansion Slots Total (Free) | Up to 1x full-height, half-length PCI expansions slot* |
| NOTE: Riser Card Required, See ‘Drive Bays’ for possible configurations | |
| Drive Bays | |
| Internal | 1x 3.5″ Internal Drive Bay with 1x Half-height, Half-length PCI |
| OR 2x 3.5″ Internal Drive Bay OR 2x 2.5″ Internal Drive Bay with 1x Full-height, Half-length PCI | |
| OR 4x 2.5″ Internal Drive Bay – Only SAS or enterprise SATA HDD recommended | |
| Front Panel | |
| Buttons | Power On/Off button, System Reset button |
| I/O Ports | Standard System I/O – (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED |
| Operating Environment (System) | |
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) |
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) | |
| Non-Operating Relative Humidity Range 5% – 95% (non-condensing) | |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) | |
| Power Supply | |
| Certification | 80PLUS Gold Certified |
| Power Supply | PWS-203-1H |
| Power Device | |
| Power Provided | 200W Low Noise AC-DC power supply with PFC |
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC | USA – UL listed, FCC, Canada – CUL listed, CCC Certification, EN 60950/IEC 60950-Compliant, Europe/CE Mark, Germany – TUV Certified |
| Standard Parts List | |
| Front Panel | MCP-280-81301-0N |
| Chassis | CSE-504-203B |
| Parts List | |
| Cables | CBL-0260L, CBL-0235L |
