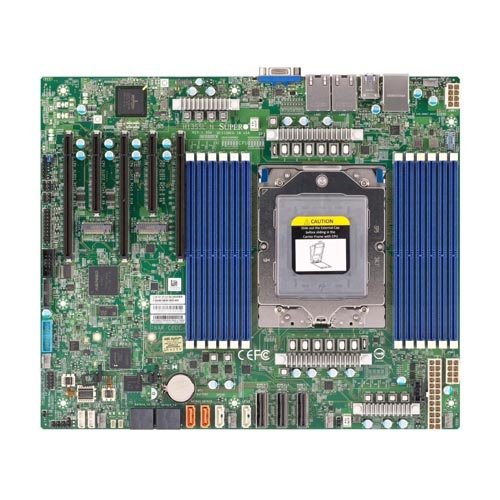

Supermicro MBD-H13SSL-N ATX Server Motherboard
Overview :
Supermicro Server Motherboard MBD-H13SSL-N Socket SP5 AMD 4th Gen EPYC™ 9004/9005 Genoa, Up to 3TB 3DS ECC RDIMM DDR5, ATX.
• AMD EPYC™ 9004 series Processors
• System on Chip
• Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
• 3 PCIe 5.0 x16 2 PCIe 5.0 x8
• Up to 6 USB 3.0 ports(4 rear + 2 via header)
• 8 SATA3
• 6 PWM 4-pin Fans with tachometer status monitoring
• M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110
• AMD EPYC™ 9004 series Processors
• System on Chip
• Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
• 3 PCIe 5.0 x16 2 PCIe 5.0 x8
• Up to 6 USB 3.0 ports(4 rear + 2 via header)
• 8 SATA3
• 6 PWM 4-pin Fans with tachometer status monitoring
• M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110
• AMD EPYC™ 9004 series Processors
• System on Chip
• Up to 3TB 3DS ECC RDIMM, DDR5-4800MHz in 12 DIMM slots
• 3 PCIe 5.0 x16 2 PCIe 5.0 x8
• Up to 6 USB 3.0 ports(4 rear + 2 via header)
• 8 SATA3
• 6 PWM 4-pin Fans with tachometer status monitoring
• M.2 Interface: 2 PCIe 4.0 x4 M.2 Form Factor: 2280, 22110
Specification :
| CPU socket type | Socket SP5 |
| Motherboard form factor | ATX |
| Proc. brand | Intel |
| Max RAM | 3 TB |
| Brand | Supermicro |
| Number of ports | 6 |
| Input/output quantity | 1 |
| Model name | H13SSL-N |
| Height | 3.6 in |
