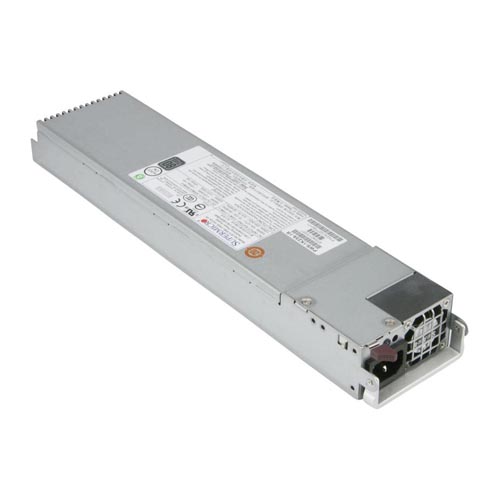

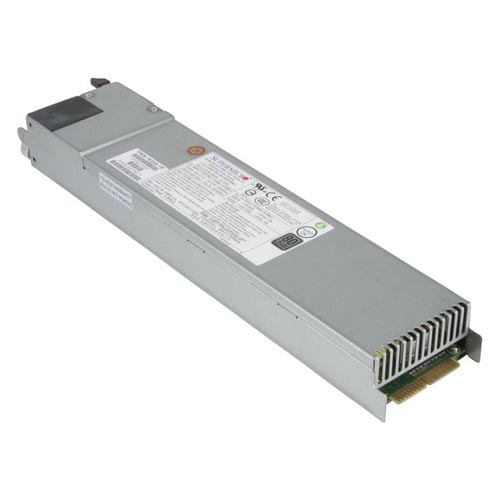

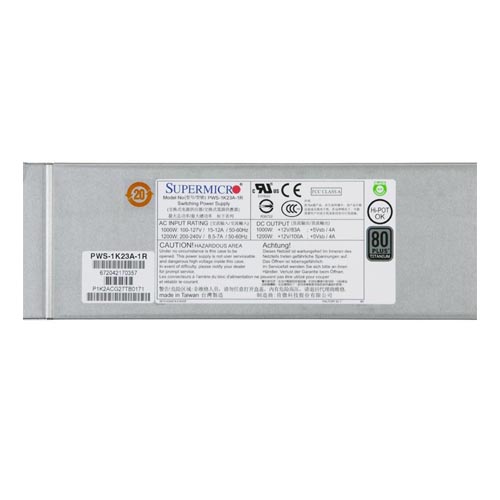

Supermicro PWS-1K23A-1R Power Supply 1U 1200W 80 Plus Titanium Certified Redundant w/ PMBus
Overview :
Power Supply 1U 1200W 80 Plus Titanium Certified, Redundant w/ PMBus – 100V/240V Input, 50/60Hz
• Designed for enterprise level applications
• Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems
• 80 Plus Titanium power supply capable of supplying 1200W output power at 91% efficiency
• Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages
Specification :
| Main Specifications | |
| Device Type | Power Supply with PMBus |
| Dimension(s) (WxDxH) | 76 x 40.4 x 336 mm |
| Height (Rack Units) | 1U |
| Output Type | 19 Pairs Gold Finger Connector |
| Power Device | |
| +5Vsb | Max: 4A / Min: 0A |
| Input Voltage | 100-127Vac / 15-12A / 50-60Hz |
| 200-240Vac / 8.5-7A / 50-60Hz | |
| Power Provided | 1200W |
| Power Supply | |
| +12V | Max: 100A / Min: 0A (200-240Vac) |
| Max: 83A / Min: 0A (100-127Vac) | |
| Certification | 80 Plus Titanium Certified |
| Miscellaneous | |
| Features | Redundant |
| Compliant Standards | UL/cUL/CB/BSMI/CE/CCC |
