Supermicro SYS-531A-I UP Workstation Mid-Tower System
Overview :
Barebone Mid-Tower SuperWorkstation, Supports Single Socket E (LGA-4677), Supporting Intel Xeon W-2400/W-2400 Processors, Supports up to 250W TDP CPUs (Air Cooled). System on Chip, Up to 1TB in 8 DIMM slots, R/LRDIMM, On-Board: Intel W790 Controller for 6 SATA3 (6 Gbps) Ports, RAID 0, 1, 5, 10, 4x 3.5in SATA Drive Bays, M.2 2x PCIe 5.0 x4, 2x 5.25in Drive Bays, Network Connectivity : 1x 1GbBaseT, 1x 10GbBaseT, 1200W Power Supply – (SYS-531A-I + X13SRA-TF)
| Type | SMC PN | Desc | QTY |
| Barebone | SYS-531A-I | SuperWorkstation (X13SRA-TF, CSE-735D4-1K26B),HF,RoHS | 1 |
| CPU | P4X-W53435X-SRM34-XCC | SPR w5-3435X 1P 16C/32T 3.1G 45MB 270W BI(1000) E5 4677 XCC | 1 |
| MEMORY | MEM-DR532MD-ER48 | 32GB DDR5 4800 ECC REG—MEM-DR532MD-ER48 | 4 |
| Drive | 2TB SATA HDD | 2TB SATA HDD | 1 |
| AOC GPU | RTX 4000 ADa | RTX 4000 ADa | 1 |
| TPM | AOM-TPM-9670H-O | SPI Capable Horizontal TPM 2.0 — AOM-TPM-9670H-O | 1 |
| Accessory | MCP-220-73201-0N | SC732 2.5inch HDD Cage | 1 |
| Accessory | SNK-P0090AP4 | 4U Active CPU HS for X13 Gen. Intel Eagle Stream Platform | 1 |
| Accessory | SKT-1333L-0000-FXC | SOCKET E LGA4677,E1A XCC CARRIER,DG 1.0,RoHS | 1 |
| Assembly | MC0037 | Assembly | 1 |
Specification :
| Product SKUs | ||
| Product SKUs | SYS-531A-I | |
| Motherboard | ||
| Motherboard | Super X13SRA-TF | |
| Processor | ||
| CPU | Intel® Xeon® W-2400 processors | |
| Single Socket E (LGA4677) | ||
| System Memory | ||
| Memory | Memory Capacity: 8 DIMM slots | |
| Up to 1TB: 8x 128 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 RDIMM / LRDIMM | ||
| Memory Voltage | 1.1 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Network Connectivity | 1x 1GbE BaseT with Intel® I210-AT | |
| 1x 10GbE BaseT with Marvell AQC113 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||

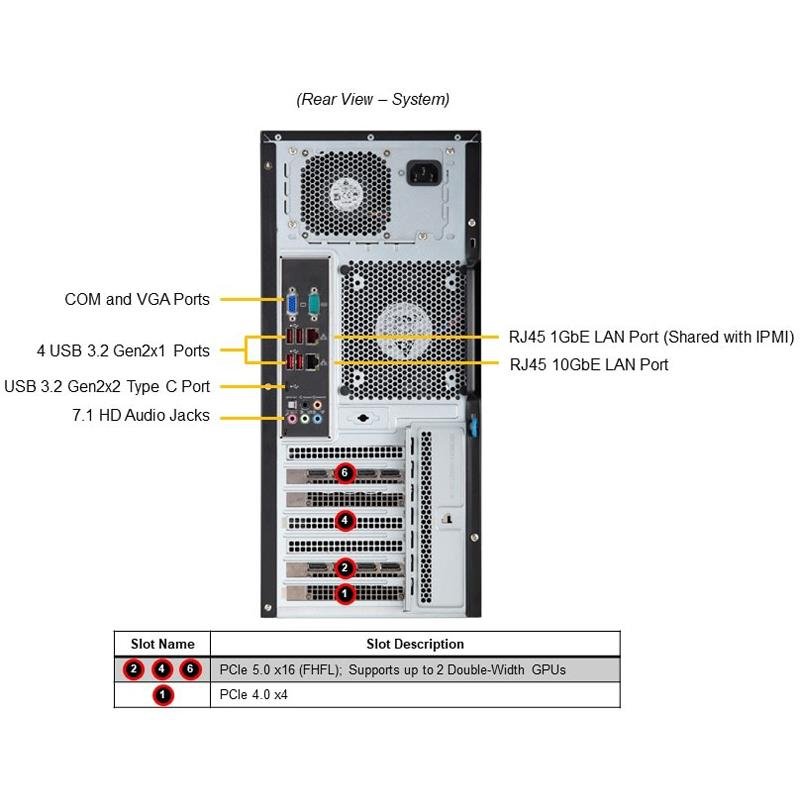

| Input / Output | ||
| USB | 1 USB 3.2 Gen 2×2 port(s) (1 rear) | |
| 2 USB 3.2 Gen 1 port(s) (2 front Type A) | ||
| 5 USB 3.2 Gen 2 port(s) (1 front Type C; 4 rear) | ||
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 COM) | |
| System BIOS | ||
| BIOS Type | AMI 256MB SPI Flash | |
| Management | ||
| Software | Watch Dog | |
| SuperDoctor 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| SPM | ||
| Power Configurations | ACPI 6.0 | |
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT | |
| Chassis | ||
| Form Factor | Mid-Tower | |
| Model | CSE-735D4-1K26B | |
| Dimensions and Weight | ||
| Height | 16.7″ (424mm) | |
| Width | 7.6″ (193mm) | |
| Depth | 20.68″ (525.3mm) | |
| Package | 21.38″ (H) x 11.97″ (W) x 25.28″ (D) | |
| Weight | Net Weight: 27 lbs (12.25 kg) | |
| Gross Weight: 30 lbs (13.61 kg) | ||
| Available Color | black | |

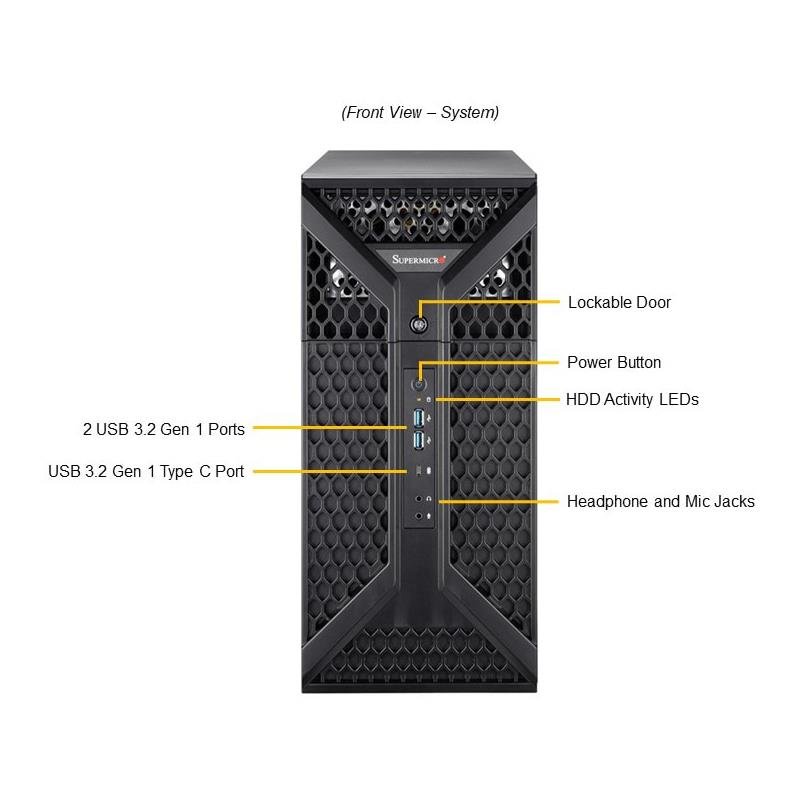

| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | HDD activity LED | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x4 slot(s) | |
| 3 PCIe 5.0 x16 slot(s) | ||

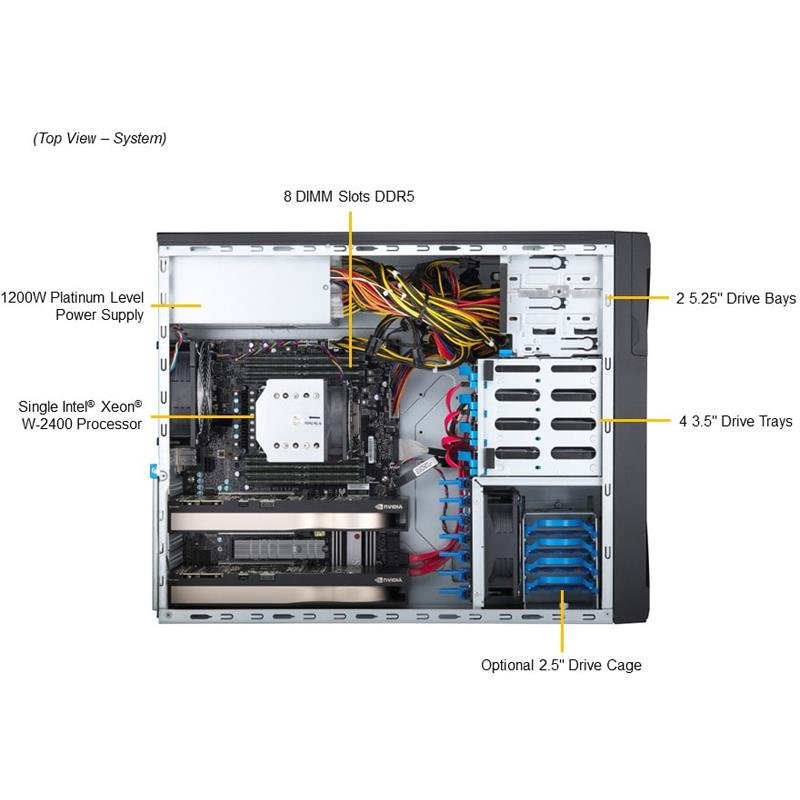

| Drive Bays / Storage | ||
| Drive Bays | 4x 3.5″ SATA drive bays | |
| M.2 | 2x PCIe 5.0 x4 | |
| Peripheral Bays | 2x 5.25″ drive bays | |
| System Cooling | ||
| Fans | 1x 120mm Fan(s) | |
| 1x 120mm Fan(s) (optional) | ||
| Power Supply | ||
| Dimension (W x H x L) | 150 x 86 x 185 mm | |
| AC Input | 100-240Vac / 8A Max / 50-60Hz | |
| Output Type | Modular Cable Output | |
| Certification | Platinum Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
