SUPERMICRO SYS-7049A-T BLACK – 4U Workstation for Virtualization and Multi Tasking
Overview :
- 4U Rackmountable Tower
- Dual Socket P (LGA 3647) Supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
- Intel® C621 Chipset
- Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM Slots

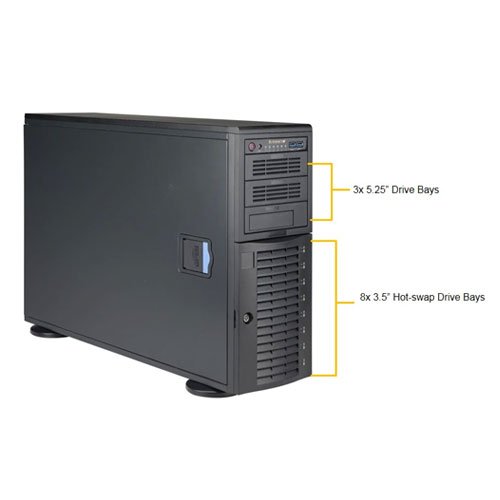

- 3 x External 5.25″ Bays
- 8x Hot-swap 3.5″ SAS3/SATA3 Drive Bays (SATA3 Dafault)
1x M.2 slot, 2x NVMe Support with Optional Cables - 4x PCI-E 3.0 x16 Slots, 2x PCI-E 3.0 x8 Slots
- 2x Gigabit LAN Ports
- 7.1 HD Audio
- 2x Super Quiet PWM Chassis Fans (Support up to 4 Fans)
1x Super Quiet Rear Fan with Optimal Fan Speed Control - 1000W Redundant Power Supply, Platinum Level (96% Efficiency)
- 25.5″ Depth 4U Rackmountable / Tower Chassis
Rack Mount Kit (Optional)

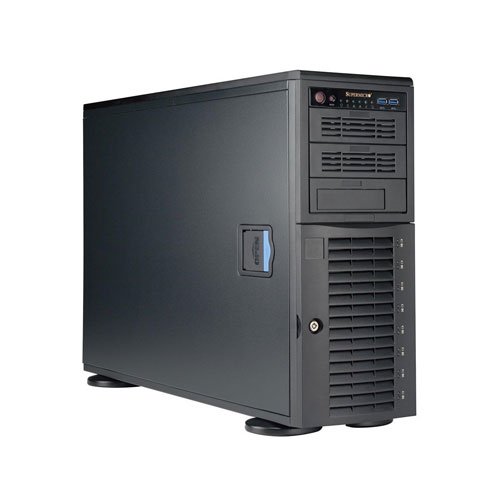

The Supermicro SuperWorkstation 7049A-T is a 25.5″ depth high performance Rackmountable Tower server that features dual Intel® Xeon® Scalable Processor, up to 2.0TB DDR4 ECC 3DS LRDIMM Memory. The Supermicro 7049A-T comes with eight 3.5″ hot-swap SAS3/SATA3 drive bays, three super quiet cooling fans, and is equipped with 1000W redundant Platinum level power supply.
Specification :
| Manufacturer: | Supermicro Computer, Inc |
| Manufacturer Part Number: | SYS-7049A-T |
| Brand Name: | Supermicro |
| Product Line: | SuperWorkstation |
| Product Model: | 7049A-T |
| Product Name: | SuperWorkstation 7049A-T |
| Product Type: | Barebone System |
| Processor & Chipset | |
| Number of Processors Supported: | 2 |
| Processor Socket: | Socket P LGA-3647 |
| Processor Supported: | Xeon |
| 64-bit Processing: | Yes |
| Chipset Manufacturer: | Intel |
| Chipset Model: | C621 |
| Memory | |
| Maximum Memory: | 2 TB |
| Memory Technology: | DDR4 SDRAM |
| Memory Standard: | DDR4-2666/PC4-21300 |
| Number of Total Memory Slots: | 16 |
| Controllers | |
| Controller Type: | Serial ATA/600 |
| RAID Supported: | Yes |
| Display & Graphics | |
| Graphics Controller Manufacturer: | ASPEED |
| Graphics Controller Model: | AST2500 |
| Network & Communication | |
| Ethernet Technology: | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays: | 11 |
| Number of External 5.25″ Bays: | 3 |
| Number of 3.5″ Bays: | 8 |
| Number of Total Expansion Slots: | 6 |
| Number of PCI Express x8 Slots: | 2 |
| Number of PCI Express x16 Slots: | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports: | 8 |
| Number of USB 3.0 Ports: | 6 |
| Number of SATA Interfaces: | 10 |
| Power Description | |
| Input Voltage: | 120 V AC, 230 V AC |
| Number of Power Supplies Installed: | 1 |
| Maximum Power Supply Wattage: | 1.20 kW |
| Physical Characteristics | |
| Color: | Black |
| Form Factor: | Tower |
| Rack Height: | 4U |
| Height: | 17.80″ (452.12 mm) |
| Width: | 7″ (177.80 mm) |
| Depth: | 25.50″ (647.70 mm) |
