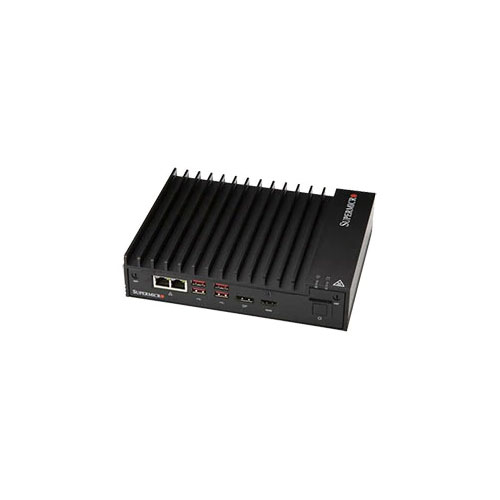

Supermicro X11 Generation 9th/8th Gen Intel Core Industrial Automation, Retail and Smart Medical Expert Systems SYS-E100-9W-E
Overview :
1. 8th Generation Intel® Core™ i5-8365UE Processor; Single Socket FCBGA-1528
2. System-on-Chip
3. M.2: M-Key 2242/2280, E-Key 2230, B-Key 2242/2280
4. Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
5. Dual GbE LAN w/ Intel i219LM i210IT
6. 4 COM (RS-232/422/485), 4 USB 3.1, 1 DIO via DB9
7. 1 HDMI and 1 Display Port
8. Fanless design
9. Lockable 12V DC 60W power adapter
Specification :
| Product SKUs | |
| SYS-E100-9W-E | SuperServer E100-9W-E (Black) |

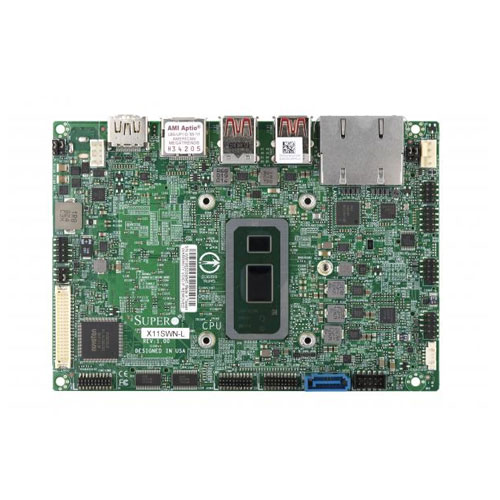

| Motherboard | Super X11SWN-E-WOHS |
| Processor/Cache | |
| CPU | 8th Generation Intel® Core™ i5-8365UE Processor |
| Single Socket FCBGA-1528 | |
| System-on-Chip | |
| CPU TDP support 15W | |
| Note | BIOS version 2.0 or above is required |
| System Memory | |
| Memory Capacity | Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots |
| Memory Type | DDR4 up to 2400MHz |
| DIMM Sizes | 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Controllers | Single LAN with Intel® I210IT |
| Single LAN with Intel® PHY I219LM | |
| Audio | ALC 888S HD Audio |
| Video | Intel® UHD Graphics 620 |
| Input / Output | |
| USB | 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A) |
| Video Output | 1 HDMI and 1 Display Port |
| COM Port | 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control |
| Audio | 1 HD Audio header |
| (Mic-in/Line-Out) (option) | |
| Others | 1 DIO via DB9 |
| Chassis | |
| Form Factor | 3.5″ SBC |
| Model | CSE-E101-02 |
| Dimensions | |
| Width | 7.68″ (195mm) / 11.81″ (300mm) – pkg. |
| Height | 1.73″ (44mm) / 5.12″ (130mm) – pkg. |
| Depth | 5.94″ (151mm) / 11″ (279mm) – pkg. |
| Weight | Gross Weight: 4.5 lbs (2.04 kg) |
| Net Weight: 2.65 lbs (1.2 kg) | |
| Available Colors | Black |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED and Hard drive activity LED |
| Expansion Slots | |
| M.2 | Key: B-Key, M-Key, E-Key |
| M.2 2242/3042/2280 | |
| B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder | |
| System Cooling | |
| Fans | Fan-less design |
| Power Supply | Lockable 12V DC 60W power adapter |
| System BIOS | |
| BIOS Type | AMI UEFI |
| Management | |
| Software | SuperDoctor® 5 |
| Watch Dog | |
| vPro | |
| AMT | |
| Power Configurations | 12V ~ 24V DC Wide power range input |
| ACPI Power Management | |
| Control of power-on for recovery from AC power loss | |
| Force Power On by Jumper | |
| CPU thermal trip support for processor protection | |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: |
| 0°C ~ 50°C (32°F ~ 122°F) | |
| Non-operating Temperature: | |
| -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: | |
| 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| 5% to 95% (non-condensing) |
