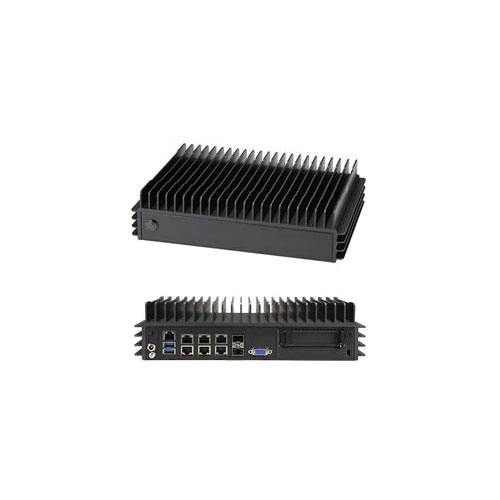

Supermicro X11 Generation Intel Xeon D-2100 IoT Edge Computing for Industrial Automation, Retail and Smart Medical Expert Systems SYS-E302-9D
Overview :
1. Intel® Xeon® processor D-2123IT, 4-Core, 8 Threads, 60W
2. System on Chip
3. 2 Fixed 2.5″ drive bay with bracket
4. M.2: 1 PCI-E 3.0 x4 and 1 SATA/PCI-E 3.0 x2, 1 M Key, 1 B Key, 2242/2280 form factor
5. Up to 512GB ECC LRDIMM, up to 256GB ECC/non-ECC RDIMM DDR4-2666Mz; in 4 DIMM slots
6. 4x 1GbE, 2x 10GBase-T, 2x 10G SFP and 1 dedicated LAN for IPMI 2.0
7. 1 VGA, 2 USB 3.0
8. Fanless cooling
9. 150W 12V Lockable DC Power Adapter
Specification :
| Product SKUs | |
| SYS-E302-9D | SuperServer E302-9D (Black) |

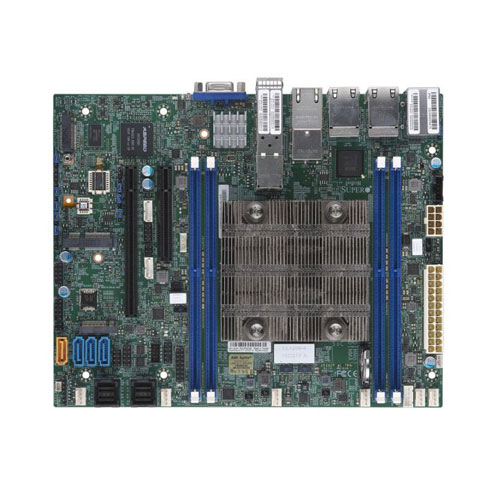

| Motherboard | Super X11SDV-4C-TP8F-01Â |
| Processor/Cache | |
| CPU | Intel® Xeon® processor D-2123IT, |
| CPU TDP support 60W | |
| Cores / Cache | 4 Cores, 8 Threads |
| System Memory | |
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM |
| Up to 256GB DDR4 ECC/non-ECC RDIMM | |
| 4 DIMM slots | |
| Memory Type | 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC/Non-ECC RDIMM |
| Operating speed up to 2400MHz | |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB |
| LRDIMM: 16GB, 32GB, 64GB, 128GB | |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors | |
| Â (using ECC memory) | |
| On-Board Devices | |
| Chipset | System on Chip |
| SATA | SATA3 (6Gbps) ports via SoC controller |
| Network Controllers | Quad 1GbE with Intel I350-AM4 |
| Dual 10GBase-T with Intel X557 | |
| Dual 10G SFP via SoC | |
| IPMI | Support for Intelligent Platform |
| Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Graphics | Aspeed AST2500 BMC |
| Input / Output | |
| SATA | SoC controller for 4 SATA3 (6Gbps) ports, (or 2 NVMe U.2 / 8 SATA3 through two Port Eight Intel PCH SATA 3.0 Ports or Two MINI-SAS HD ports) |
| LAN | 2x 10G SFP ports |
| 2x 10GBase-T LAN ports | |
| 4x 1GbE LAN ports | |
| 1 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 ports (rear) |
| Display | 1 VGA port |
| TPM | 1 TPM 2.0 header |
| Chassis | |
| Form Factor | Compact |
| Model | CSE-E302iL |
| Dimensions | |
| Width | 11.6″ (295mm) / 15″ (381mm) – pkg. |
| Height | 3″ (76mm) / 10.87″ (276mm) – pkg. |
| Depth | 8.1″ (206mm) / 5.59″ (142mm) – pkg. |
| Weight | Gross Weight: 7.5 lbs (3.4 kg) |
| Net Weight: 3.45 lbs (1.56 kg) | |
| Available Colors | Black |
| Front Panel | |
| Buttons | Power On/Off button |
| LEDs | Power LED (Hard drive activity LED) |
| Expansion Slots | |
| PCI-Express | 1 PCI-E 3.0 x8 slot |
| Drive Bays | |
| Internal | 2 Fixed 2.5″ drive bay with bracket (when AOC area is not occupied) |
| System Cooling | Fanless |
| Power Supply | 150W 12V Lockable DC Power Adapter (Optional: 180W 12V Lockable DC Power Adapter) |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash with AMI BIOS |
| BIOS Features | PCI 3.0 |
| ACPI 5.0 | |
| USB Keyboard support | |
| Hardware BIOS Virus protection | |
| SMBIOS 2.8 | |
| UEFI 2.4 | |
| RTC (Real Time Clock) Wakeup | |
| Management | |
| Software | Intel® Node Manager |
| IPMI 2.0 | |
| KVM with dedicated LAN | |
| NMI | |
| SUM | |
| SuperDoctor® 5 | |
| Watch Dog | |
| Power Configurations | ACPI Power Management |
| 12V DC Power Input | |
| Control of power-on for recovery from AC power loss | |
| CPU thermal trip support for processor protection | |
| M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL | |
| Fan | Fans with tachometer status monitoring |
| Status monitor for speed control | |
| Low noise fan speed control | |
| Pulse Width Modulated (PWM) fan connectors | |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: |
|   0°C to 40°C (32°F to 104°F) | |
| Non-operating Temperature: | |
|   -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: | |
| Â Â 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: | |
| Â Â 5% to 95% (non-condensing) |
