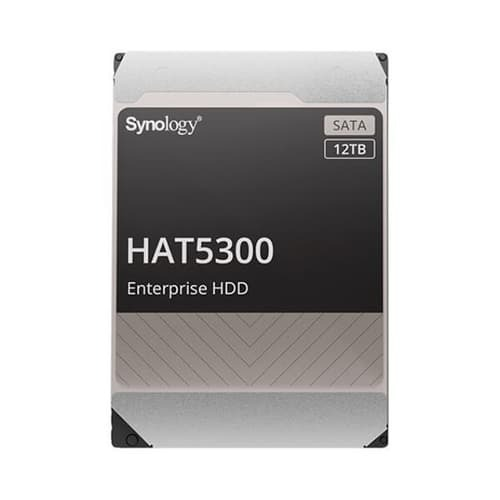

Synology 12TB HAT5300 SATA III 3.5 inch 7200 RPM Internal Enterprise Hard Drive HAT5300-12T
Overview :
- Hard Drive offers maximum efficiency and usability
- Makes frequent file access and retrieval easy and convenient
- With 12 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs
- Have data stored faster with SATA/600 interface that optimizes burst performance
- Experience rapid processing speed with 256 MB cache buffer
- 3.5″ form factor allows hassle-free and easy usage with increased efficiency
Synology HAT5300 Series 3.5” SATA HDD
High-performance, reliable hard drives for Synology systems
Enterprise storage drives for Synology systems
Synology HAT5300 HDD offers class-leading performance thanks to tight integration with DSM and Synology hardware. With over 500,000 hours of in-house validation testing and backed by Synology’s 5-year limited warranty1, the HAT5300 series brings unmatched reliability to Synology deployments.
HAT5300 Series 3.5” SATA HDD
Performance
Up to 274 MB/s sustained data transfer
HAT5300 Series 3.5” SATA HDD
Optimization
Up to 23% faster sequential read in Synology NAS
HAT5300 Series 3.5” SATA HDD
Reliability
Purpose-built for Synology servers running 24/7
HAT5300 Series 3.5” SATA HDD
Updates
One-click drive firmware updates through DSM
Consistent performance scaling
Through testing and optimizations, HAT5300 series HDD has been tuned to deliver up to 23% higher sustained sequential read performance in demanding multi-user environments.
Built for peak performance
AG274QG Gaming Monitors
Rigorous validation
Over 500,000 hours of stress testing with Synology devices ensure that HAT5300 drives can withstand even the most demanding enterprise environments and deliver highly reliable performance.
Stress tests
1000+ cycles
Cumulative testing
500K+ hours
One-click firmware upgrades
Automatic firmware update notifications and one-click installation through DSM minimizes maintenance workload and reduces the chance of oversight.
Durability for 24/7 environments
With an MTTF rating of up to 2.5 million hours, the HAT5300 series HDD supports a workload of 550 TB per year and persistent write cache technology to minimize data corruption in the event of sudden power loss.
MTTF rating up to
2.5 million hours
Workload support
550TB/Year
AG274QG Gaming Monitors
5-year warranty
At Synology, we are committed to product innovation and quality. HAT5300 drives are backed by a 5-year limited warranty that includes technical support and hardware replacement services to maximize your return on investment.
| Model number | HAT5300-12T |
| Capacity2 | 12 TB |
| Form factor3 | 3.5″ |
| Interface | SATA 6 Gb/s |
| Sector size | 512e |
| Performance | |
| Rotational speed | 7,200 rpm |
| Interface speed | 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s |
| Buffer size4 | 256 MiB |
| Maximum sustained data transfer speed (Typ.) | 242 MiB/s |
| Reliability | 2,500,000 hours |
| Workload rating | 550 total TB transferred per year |
| Power Consumption | |
| Supply voltage | 12 V (±10%) / 5 V (+10/-7%) |
| Active Idle (Typ.) | 4.25 W |
| Random Read/Write 4KB Q1 (Typ.) | 7.83 W |
| Environmental | |
| Temperature | |
| Operating | Operating 5°C to 60°C (41°F to 140°F) |
| Non-operating | -40°C to 70°C (-40°F to 158°F) |
| Operating | 686 m/s2 {70 G} (2 ms duration) |
| Shock | |
| Non-operating | 2,450 m/s2 {250 G} (2 ms duration) |
| Vibration | |
| Operating | 7.35 m/s2 {0.75 G} (5 to 300 Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz) |
| Non-operating | 29.4 m/s2 {3.0 G} (5 to 500 Hz) |
| Altitude | |
| Operating | -305 m to 3,048 m |
| Non-operating | -305 m to 12,192 m |
| Relative humidity | |
| Operating | 5% to 90% R.H. (no condensation) |
| Non-operating | 5% to 95% R.H. (no condensation) |
| Others | |
| Size (H x W x D) | 26.1 mm x 101.85 mm x 147 mm |
| Weight | 720 g |
| Certification | CE, RCM, BSMI, KC, EAC, UL, TUV, ICES, UKCA, RoHS |
| Warranty | 5 Years |
