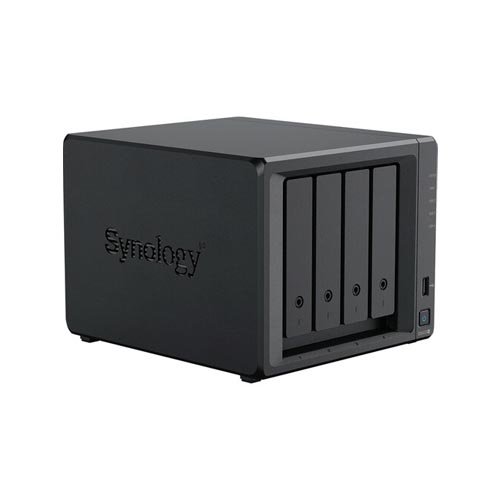

Synology DiskStation DS423+ 4-Bay NAS Enclosure
Overview :
The DiskStation DS423+ 4-Bay NAS Enclosure from Synology is a capable performer with tools to help you secure, back up, and sync your data and media. Built-in solutions available in Synology’s DiskStation Manager (DSM) OS let users create their own private cloud, organize and stream music, video, and photo collections across all devices, seamlessly collaborate with partners, set up an intuitive surveillance system, and more. The DS423+ is equipped with four drive bays that are capable of natively supporting 3.5″ SATA hard drives, as well as 2.5″ SATA hard drives and SSDs.
The DS423+ runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system which helps to simplify managing your Synology NAS. Its CPU is a 2.0 GHz Intel Celeron J4125 Quad-Core with a burst frequency of up to 2.7 GHz, and its 2GB of DDR4 RAM, which can be upgraded to 6GB, allows frequently used files and applications to be quickly accessed. Using its dual Gigabit Ethernet ports, this NAS is capable of sequential read speeds up to 226 MB/s and sequential write speeds up to 224 MB/s.
Two USB-A 3.2 Gen 1 ports allow it to be connected to compatible peripherals, and network connectivity is achieved via the dual integrated Gigabit Ethernet ports that support link aggregation and failover, allowing your stored data to be shared with users throughout the network. Data may also be made remotely available through the free iOS and Android applications. For those who require RAID support, the DS423+ supports RAID 0 and 1, 5, 6, 10, as well Synology Hybrid RAID and Basic RAID, each of which offers performance, data redundancy, or a combination of both. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
The DS423+ is engineered to be energy efficient and uses dual 92 x 92mm fans to help keep the system running cool at all times. The server supports numerous scheduled power on / off cycles and hard drive hibernation to further minimize power consumption and operation expenses.
The Synology DiskStation DS423+ 4-Bay NAS Enclosure operates on 100-240 VAC at 50/60 Hz and includes an accessory pack, an AC power adapter, an AC power cord, and two RJ45 LAN cables. It is protected by a limited 3-year warranty.
Securely and conveniently store any type of data with the aid of Synology’s comprehensive and intuitive access and management tools.
- Access from anywhere directly from your browser without configuring complex port forwarding rules, with Synology QuickConnect
- Browse and manage your files from any browser or through Windows File Explorer, Finder on Mac, and more
- Keep your photos and videos organized using Synology Photos’ smart sorting functions
- Docker support provides access to a wide range of media management applications available as containers
- Easily incorporate into existing network infrastructure as edge storage thanks to Windows AD and LDAP support
Whether sharing photos and videos with family or working on business projects with coworkers around the globe, Synology solutions make sharing, collaboration, and synchronization a breeze.
- Build a private data cloud for easy file management and sharing across all desktop and mobile devices, and keep data on your Synology systems in sync with Synology Drive
- Synchronize data from and to popular cloud storage platforms with Synology Cloud Sync
- Securely share photos and videos with family, friends, or business clients using Synology Photos
- Keep multiple sites in sync by leveraging the power of C2 cloud servers with Synology Hybrid Share. Reduce local storage and bandwidth usage by downloading files from the cloud only when needed
Synology DSM comes with host of backup solutions for different scenarios available at no extra cost.
- Centrally set up and manage backups of Windows endpoints, Linux servers, VMware, Hyper-V, Microsoft 365, and Google Workspace with Active Backup Suite
- Leverage real-time and scheduled backups of your PC folders with Synology Drive to protect data against ransomware attacks or accidental deletion
- Safeguard photos and videos taken on mobile devices with automatic backups to Synology Drive or Synology Photos
- Efficiently back up your entire Synology NAS or select folders to a wide variety of destinations using Hyper Backup
- Store backups to C2 Storage, a dedicated and secure cloud destination powered by Synology C2
- Create point-in-time copies of shared folders that can be replicated to other Synology systems and rapidly restored with Snapshot Replication
Synology Surveillance Station transforms any Synology system into a powerful network video recorder (NVR).
- 8300+ supported camera models
- ONVIF support for a broader selection of cameras
- Private, subscription-free storage of recordings
- Access through web browsers, desktop clients, and mobile apps
- Event-based rules to trigger specific actions
- Email, SMS, and push notification options
- Simultaneous recording to the cloud with C2 Surveillance for an extra layer of data protection and more convenient sharing
Specification :
| Computing | |
| CPU | Quad-Core: 2 to 2.7 GHz |
| Processor | Intel Celeron J4125 |
| Total Installed Memory | 2 GB DDR4 |
| Maximum Memory Capacity | 6 GB |
| General | |
| Number of Bays | 2x M.2 (2280) NVMe |
| 4x 2.5″/3.5″ SATA (Unspecified Version) | |
| Inputs/Outputs | 2x USB-A 3.0 / 3.1/3.2 Gen 1 |
| 2x RJ45 Gigabit Ethernet | |
| Media Card Slots | Yes |
| Form Factor | Rackmount |
| RAID | RAID 0/1/5/6/10/Basic/Hybrid |
| Hot-Swap Support | Yes |
| Wake on LAN | Yes |
| Networking | |
| Supported Protocols | AFP |
| CalDAV | |
| FTP | |
| L2TP | |
| NFS | |
| OpenVPN | |
| PPTP | |
| SMB | |
| SNMP | |
| SSH | |
| Telnet | |
| WebDAV | |
| iSCSI | |
| Software | |
| Installed Operating System | Synology DiskStation Manager |
| Supported File Systems | Internal: BTRFS, EXT4 |
| External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS, exFAT | |
| Mobile App Compatible | Yes: Android & iOS |
| Supported Browsers | Chrome, Edge, Firefox, Safari |
| Supported Languages | Brazilian Portuguese |
| Czech | |
| Danish | |
| Dutch | |
| English | |
| French | |
| German | |
| Hungarian | |
| Italian | |
| Japanese | |
| Korean | |
| Norwegian | |
| Polish | |
| Portuguese | |
| Russian | |
| Simplified Chinese | |
| Spanish | |
| Swedish | |
| Thai | |
| Traditional Chinese | |
| Turkish | |
| Electrical | |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | AC Adapter |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 8 to 80% |
| Storage Temperature | -5 to 140°F / -20 to 60°C |
| Storage Humidity | 5 to 95% |
| Physical | |
| Color | Black |
| Status Monitoring | LED Indicator |
| Cooling | 2x 92 mm Fans |
| Built-In Speakers | No |
| Dimensions | 8.8 x 7.8 x 6.5″ / 223 x 199 x 166 mm |
| Weight | 4.6 lb / 2.1 kg |
| Packaging Info | |
| Package Weight | 7.81 lb |
| Box Dimensions (LxWxH) | 11.3 x 10.4 x 9.7″ |
