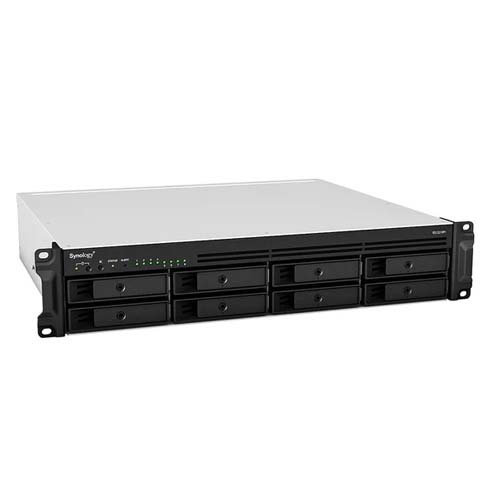

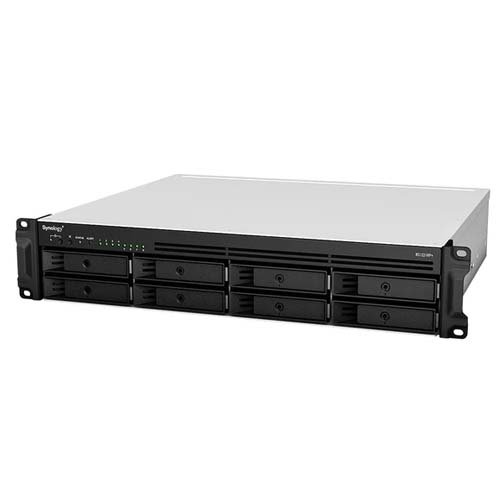

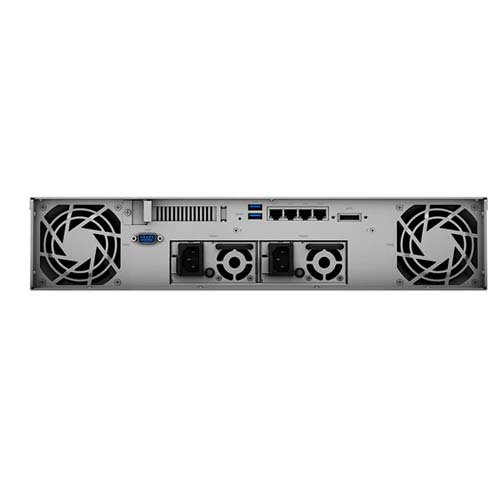

Synology RS1221RP+ RackStation 8-Bay Diskless Rackmount Network Attached Storage NAS Device
Overview :
Compact and reliable
The RackStation RS1221RP+ 8-Bay NAS Enclosure from Synology is equipped to handle heavy workloads in data-intensive environments, with sequential read speeds of up to 2315 MB/s and sequential write speeds of up to 1147 MB/s. This unit has 8 drive bays, each supports 3.5″ SATA hard drives, as well as 2.5″ SATA hard drives and SSDs.
SSD cache
Boost read/write IOPS over HDD-only arrays by 16X or more with NVMe or SATA SSD Cache.
Ready for 10/25GbE
Supports 10GbE SFP+/RJ-45 and 25GbE SFP28 NICs to instantly increase network bandwidth based on your infrastructure.
High Performance
Tackle multi-user environments effortlessly with up to 2,315 MB/s read and 1,147 MB/s write performance.
A compact design for space efficiency
The RS1221RP+ is designed to help you save space in compact deployments. Comes with dual power supplies comes in at 38 cm, also fitting most shallow depth enclosures.
Specification :
| Model | Synology RackStation RS1221RP+ |
| CPU | |
| CPU Model | AMD Ryzen V1500B |
| CPU Frequency | 4-core 2.2 GHz |
| Hardware Encryption Engine | Yes |
| Memory | |
| System Memory | 4 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 4 GB (4 GB x 1) |
| Total Memory Slots | 2 |
| Storage | |
| Drive Bays | 8 |
| Maximum Drive Bays with Expansion Unit | 12 (RX418 x 1) |
| Compatible Drive Type | 3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD |
| Hot Swappable Drive | Yes |
| External Ports | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| USB 3.2 Gen 1 Port | 2 |
| eSATA Port | 1 |
| PCIe | |
| PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
| File System | |
| Internal Drives | Btrfs EXT4 |
| External Drives | Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT |
| Others | |
| Form Factor (RU) | 2U |
| System Fan | 80 mm x 80 mm x 2 pcs |
| Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode |
| Power Supply Unit / Adapter | 350W |
| Power Consumption | 61.94 W (Access) 29.98 W (HDD Hibernation) |
| AC Input Power Voltage | 100 V to 240 V AC |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | -20°C to 60°C |
| Certifications | FCC, CE, BSMI, EAC, CCC, KC, VCCI, RCM |
| Miscellaneous | |
| Dimensions(Height x Width x Depth) | 88 mm x 482 mm x 407.5 mm |
| Net Weight | 11.7 kg |
| Warranty | 3 Year Brand Warranty |
| Package Contents | Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1 |
