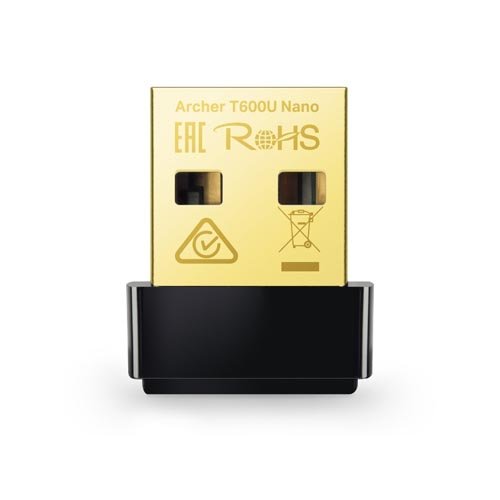

TPLink Archer T600U Nano AC600 Nano Wireless USB Adapter
Overview :
- High Speed WiFi– Up to 600Mbps speeds with 200Mbps on 2.4GHz and 433 Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds.
- Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range.
- Nano design – Small, unobtrusive design allows you to plug it in and forget it is even there
- Operating System – Supports Windows 11/10/8.1/8/7/XP, Mac OS X
- Advanced Security –Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards
Specification :
| Interface | USB 2.0 |
| Dimensions ( W x D x H ) | 15*7.1*18.6mm |
| Antenna | Omni Directional |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac, IEEE 802.11a, |
| IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | |
| Frequency | 5GHz |
| 2.4GHz | |
| Signal Rate | 5GHz |
| 11ac: Up to 433Mbps(dynamic) | |
| 11n: Up to 150Mbps(dynamic) | |
| 11a: Up to 54Mbps(dynamic) | |
| 2.4GHz | |
| 11n: Up to 200Mbps(dynamic) | |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Reception Sensitivity | 5GHz： |
| 11a 6Mbps: -90dBm | |
| 11a 54Mbps: -73dBm | |
| 11n HT20 MCS0: -89dBm | |
| 11n HT20 MCS7: -70dBm | |
| 11n HT40 MCS0: -86dBm | |
| 11n HT40 MCS7: -67dBm | |
| 11ac VHT80 MCS0: -82dBm | |
| 11ac VHT80 MCS9: -56dBm | |
| 2.4GHz: | |
| 11b 1Mbps: -96dBm | |
| 11b 11Mbps: -88dBm | |
| 11g 6Mbps: -89dBm | |
| 11g 54Mbps: -74dBm | |
| 11n HT20 MCS0: -89dBm | |
| 11n HT20 MCS7: -72dBm | |
| 11n HT40 MCS0: -86dBm | |
| 11n HT40 MCS7: -66dBm | |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| Transmission Power | <20dBm (EIRP) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | AC600 Nano Wireless USB Adapter Archer T2U Nano |
| Resource CD | |
| Quick Installation Guide | |
| System Requirements | Windows 11/10/8.1/8/7/XP (32/64bits), |
| Mac OS X 10.9-10.13 | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing |
