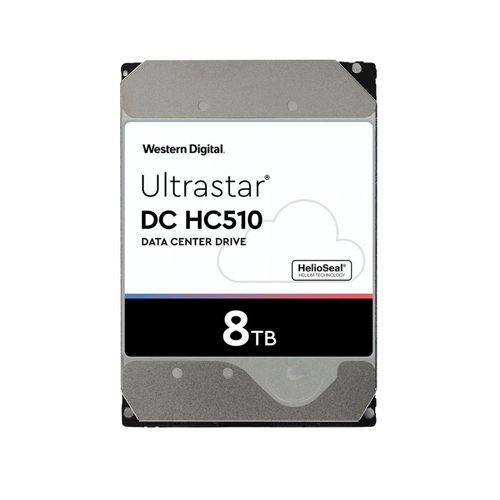

WD Ultrastar 8TB DC HC510 SATA 3.5 inch Internal Enterprise Hard Drive HUH721008ALE600
Overview :
Laying the foundation for a worry-free data center, Western Digital delivers an exceptional capacity hard drive for the enterprise – Ultrastar DC HC510, previously known as Ultrastar He10 and part of the HC500 series of helium-filled hard drives. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC510 uses PMR technology and is the industry’s first 10TB drive that is drop-in ready for any enterprisecapacity application or environment. Based on field proven, third-generation HelioSeal technology, it offers one of the lowest power profiles in the industry to help data center architects meet eco-environmental goals and requirements. Targeted at 2.5M hours MTBF, the DC HC510 provides the highest reliability rating available of all HDDs on the market today by building on the successful design of its 8TB and 6TB predecessors. Trust Western Digital and Ultrastar DC HC510 to deliver more capacity, more efficiency, more reliability and more value to your data center.
Specification :
| Dimensions & Weight | |
| Depth | 5.8 in |
| Height | 1 in |
| Weight | 23.28 oz |
| Width | 4 in |
| Environmental Parameters | |
| Max Operating Temperature | 140 °F |
| Min Operating Temperature | 41 °F |
| Hard Drive | |
| 24×7 Operation | Yes |
| Average Latency | 4.16 ms |
| Average Seek Time | 8 ms |
| Buffer Size | 256 MB |
| Bytes per Sector | 512 |
| Data Transfer Rate | 600 MBps |
| Form Factor | 3.5″ x 1/3H |
| Form Factor (metric) | 8.9 cm x 1/3H |
| Form Factor (Short) | 3.5″ |
| Form Factor (Short) (metric) | 8.9 cm |
| Hard Drive Type | Internal hard drive |
| Interface | Serial ATA-600 |
| Load Unload Cycles | 6,00,000 |
| Non-Recoverable Errors | 1 per 10^15 |
| Spindle Speed | 7200 rpm |
| Storage Interface | Serial ATA-600 |
| Header | |
| Brand | WD |
| Compatibility | PC |
| Manufacturer | Hitachi Hard Drives |
| Model | HUH721008ALE600 |
| Packaged Quantity | 1 |
| Product Line | WD Ultrastar DC HC510 |
| Interface Provided | |
| Connector Type | 7 pin Serial ATA |
| Qty | 1 |
| Storage Interface | Serial ATA-600 |
| Miscellaneous | |
| MTBF | 2,500,000 hours |
| Power Consumption | |
| Mode | Active |
| Value | 6.8 Watt |
| Mode | Idle |
| Value | 5 Watt |
| Service | |
| Support Details Full Contract Period | 5 years |
| Support Details Type | Limited warranty |
| Service & Support | |
| Type | 5-year warranty |
| Shock & Vibration Tolerance | |
| Shock Acceleration (Non-operating) | 300 |
| Shock Acceleration (Operating) | 70 |
| Shock Duration (Non-operating) | 2 ms half-sine pulse |
| Shock Duration (Operating) | 2 ms half-sine pulse |
| Vibration Acceleration (Non-operating) | 1.04 |
| Vibration Acceleration (Operating) | 0.67 |
| Vibration Frequency Range (Non-operating) | 2-200 Hz |
| Vibration Frequency Range (Operating) | 5-500 Hz |
| Storage | |
| Type | Hard drive |
| Storage Hard Drive | |
| Capacity | 8 TB |
| Features | 24×7 continuous operation, Advanced format 512e, Filled with Helium, HelioSeal, Instant Secure Erase (ISE), Massive Scale Out (MSO), Perpendicular Magnetic Recording (PMR), Rebuild Assist mode, Rotational Vibration Safeguard (RVS), TCOptimized |
| Interface Type | Serial ATA-600 |
