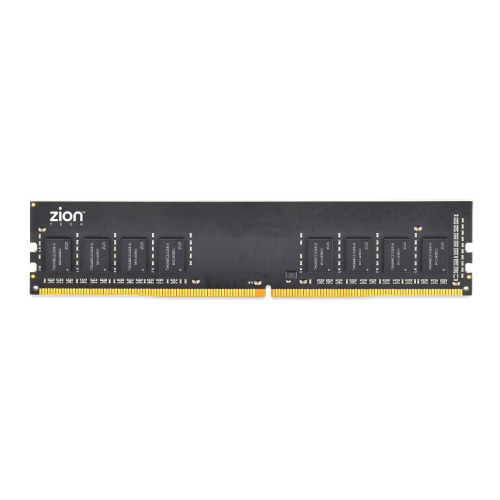

Zion 8GB DDR4 3200 MHz Desktop Memory ZM8GUD320
Overview :
The Zion 8GB DDR4 3200 MHz Memory Module is designed to deliver reliable performance for desktop, workstation, and embedded computing applications. Built with high-quality DRAM components and strict quality controls, it ensures stable operation, improved multitasking efficiency, and long-term durability.
• DDR4 SDRAM technology
• High-speed performance up to 3200 MHz
• Optimized for desktop and embedded platforms
• Low power consumption at 1.2V
• Non-ECC, unbuffered DIMM
• RoHS compliant
• 100% compatibility and reliability tested
Specification :
| Capacity | 8GB |
| Memory Type | DDR4 SDRAM |
| Speed | 3200 MHz |
| Data Rate | 3200 MT/s |
| Voltage | 1.2V |
| Form Factor | UDIMM |
| Pin Count | 288-pin |
| ECC | Non-ECC |
| Buffered / Registered | Unbuffered |
| CAS Latency | 22 |
| Operating Temperature | 0°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Physical Dimensions | • Form Factor: DDR4 UDIMM |
| • Pin Configuration: 288-pin | |
| • Dimensions: 133.35 (L) x 31.25 (W) mm | |
| • Weight: About 18 gm. | |
| Advanced Memory Management | • JEDEC-compliant design |
| • On-Die Termination (ODT) | |
| • Command/Address parity | |
| • Auto self-refresh and power-down modes | |
| • Enhanced signal integrity for stable operation | |
| Warranty | • 3-Year Warranty |
