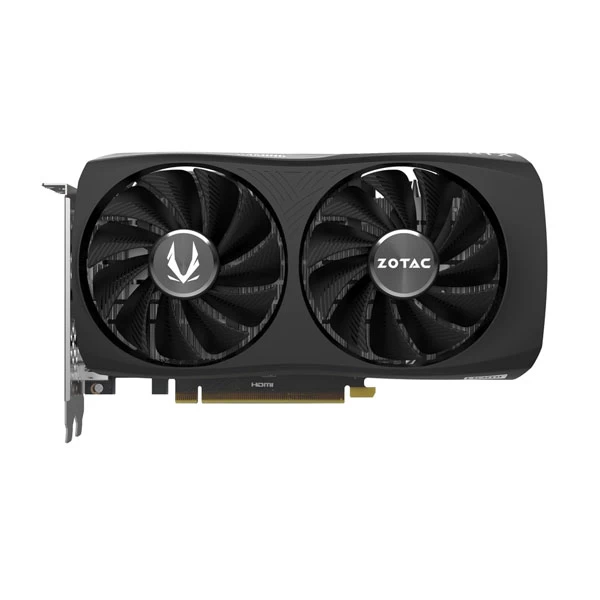

Zotac Gaming GeForce RTX 4060 8GB Twin Edge OC Black Graphic card ZT-D40600H-10M
The ZOTAC GAMING GeForce RTX 4060 8GB Twin Edge OC Black Edition is a compact and capable graphics card, featuring the NVIDIA Ada Lovelace architecture and an aerodynamic-inspired design. With a reduced 2 slot size, it’s an excellent choice for those who want to build a SFF gaming PC capable of smooth framerate and 1080p performance in the latest title releases.
Feature Highlights
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
Compact design with 2 Slot footprint
Metal Backplate
Freeze Fan Stop
221.4 mm / 8.7 in length
8-pin PCIe power connector
Technical Detail
Brand : Zotac
Modal : ZT-D40600H-10M
Technical Spec
GPU : GeForce RTX 4060
CUDA cores : 3072
Video Memory : 8GB GDDR6
Memory Bus : 128-bit
Engine ClockBoost : 2490 MHz
Memory Clock : 17 Gbps
PCI Express : 4.0 x8
Display Outputs3 x DisplayPort 1.4a (up to 7680×4320@60Hz)
1 x HDMI® Connector*
Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification
HDCP Support : 2.3
Multi Display Capability : Quad Display
Recommended Power Supply : 500W
Power Consumption : 115W
Power Input : 1 x 8-pin PCIe
DirectX : 12 Ultimate
OpenGL : 4.6
Cooling : Air Cooled
Slot Size : 2 slot
SLI : N/A
Supported OS : Windows 11 / 10 (64-bit, v1809 November 2018 or later)
Card Length221.4mm x 122.7mm x 43.1mm / 8.7″ x 4.8″ x 1.7″
Accessories : User Manual
