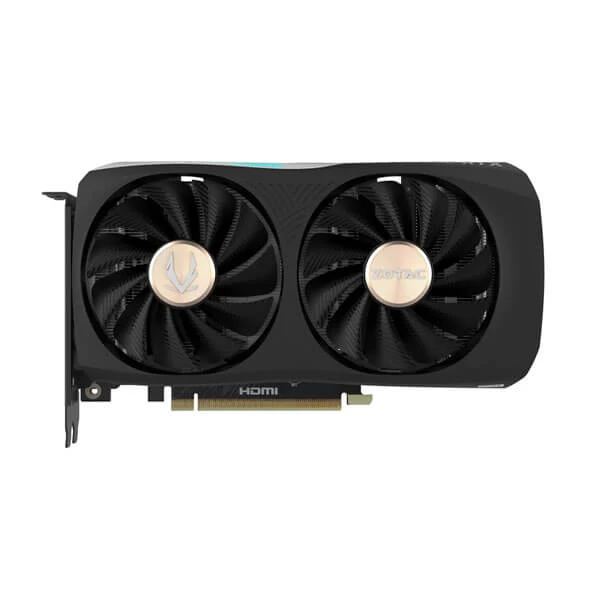

ZOTAC GAMING GEFORCE RTX 4060 Ti 16GB AMP Graphic Card ZT-D40620F-10M
Overview :
The ZOTAC GAMING GeForce RTX 4060 Ti 16GB AMP is a compact and powerful graphics card, featuring the NVIDIA Ada Lovelace architecture and an aerodynamic-inspired design. With a reduced 2.2 slot size and a strong factory overclock, the AMP not only has wide PC case compatibility, but is also an excellent choice for those who want to build a SFF gaming PC capable of smooth framerates and performance in the latest title releases.
Feature Highlights:
– Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
– IceStorm 2.0 Advanced Cooling
– FREEZE Fan Stop, Active Fan Control
– Compact 2.2 Slot Footprint
– Strong Factory Overclock
– SPECTRA RGB Lighting
– Metal Backplate
Specification :
rocessor
Graphics processor family NVIDIA
Processor boost clock speed 2550 MHz
Parallel processing technology support Not supported
Maximum displays per videocard 4
CUDA cores 4352
CUDA Yes
Maximum resolution 7680 x 4320 pixels
Graphics processor GeForce RTX 4060 Ti
Memory
Discrete graphics card memory 8 GB
Data transfer rate 18 Gbit/s
Memory bus 128 bit
Graphics card memory type GDDR6

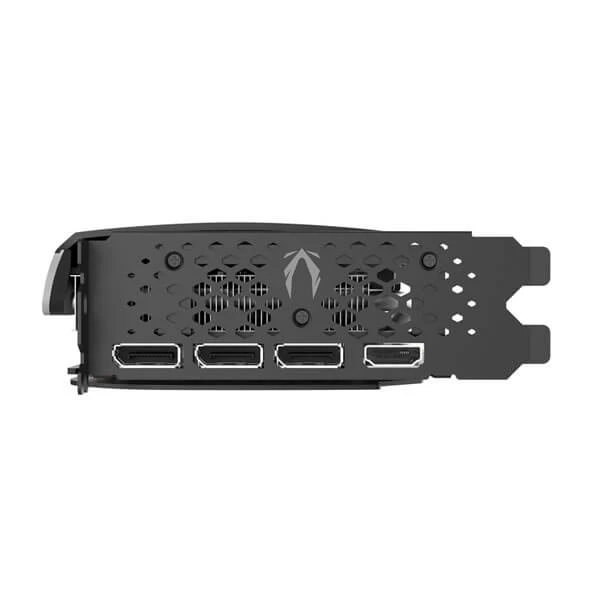

Ports & interfaces
HDMI version 2.1a
HDMI ports quantity 1
DisplayPort version 1.4a
DisplayPorts quantity 3
Interface type PCI Express x8 4.0
Video
DirectX version 12 Ultimate
OpenGL version 4.6
HDMI version 2.1a
HDCP Yes
Dual Link DVI No
CUDA cores 4352
Performance
NVIDIA G-SYNC Yes
DirectX version 12 Ultimate
OpenGL version 4.6
HDCP Yes
Dual Link DVI No
TV tuner integrated No
HDCP version 2.3
Design
Number of fans 2 fan(s)
Illumination colour Multi
Illumination Yes
Cooling type Active
Product colour Black
Number of slots 2.2
Cooling technology Zotac IceStorm 2.0
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Power
Supplementary power connectors 1x 8-pin
Minimum system power supply 500 W
Power consumption (max) 160 W
Weight & dimensions
Number of slots 2.2
Width 40.1 mm
Height 123.2 mm
Depth 225.5 mm
Technical details
Cooling type Active
Product colour Black
TV tuner integrated No
System requirements
Windows operating systems supported Windows 10 x64, Windows 11 x64
Minimum system power supply 500 W
Packaging content
Manual Yes
Packaging data
Package type Box
Manual Yes
