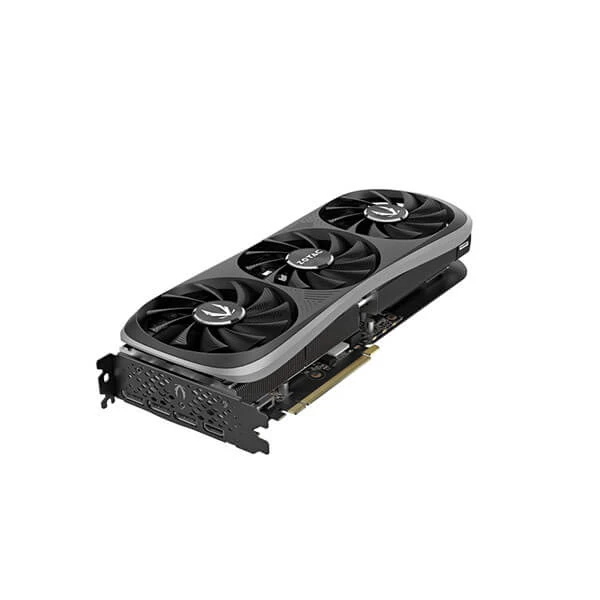

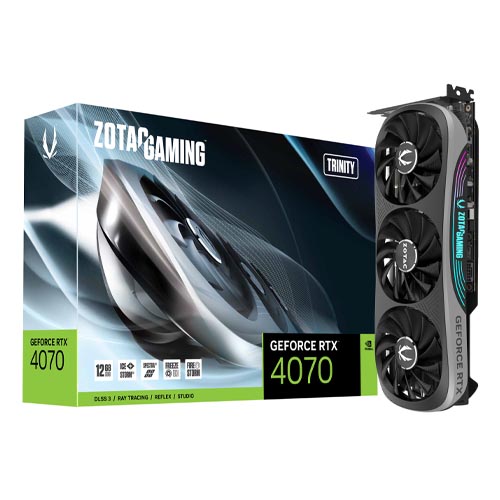

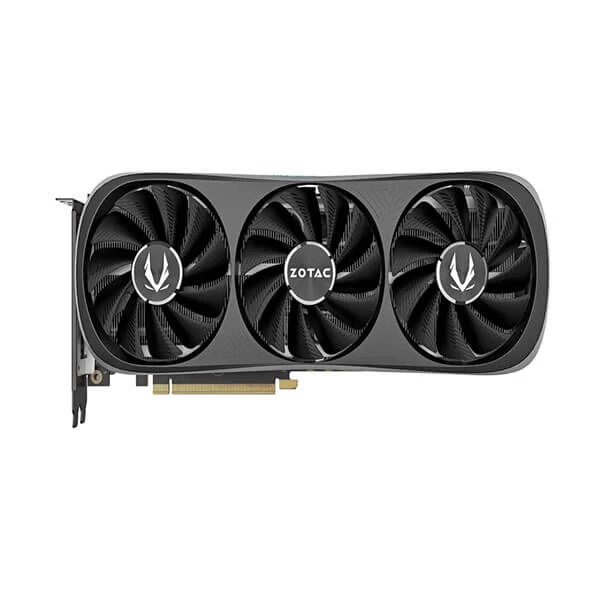

Zotac Gaming GeForce RTX 4070 TRINITY 12GB GDDR6X Graphic Card ZT-D40700D-10P
Overview :
A balanced take on the signature aerodynamic-inspired design, the ZOTAC GAMING GeForce RTX 4070 Trinity utilizes the state-of-the-art NVIDIA Ada Lovelace architecture to give gamers cutting-edge features such as DLSS 3 and real time raytracing. Complete with the advanced cooling design derived from flagship models, the Trinity packs the punch to deliver blistering FPS in the latest titles.
- NVIDIA Ada Lovelace streaming multiprocessors: Up to 2x performance and power efficiency
- 4th generation tensor cores:
Up to 4X performance with DLSS 3 vs. brute-force rendering
- 3rd generation RT cores:
Up to 2X ray tracing performance
- NVIDIA DLSS 3
- Game Ready and NVIDIA Studio Drivers
- NVIDIA® GeForce Experience™
- NVIDIA Broadcast, NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- 12GB GDDR6X graphics memory
- IceStorm 0 advanced cooling
- FREEZE fan stop, Active fan control
- SPECTRA 0 RGB lighting

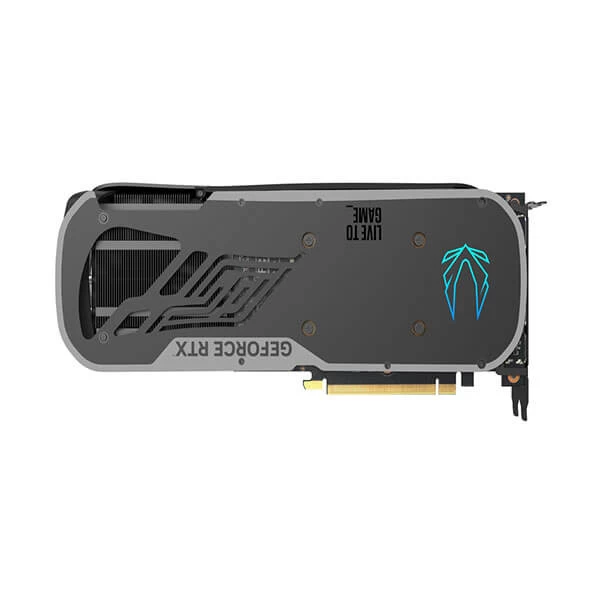

- Metal backplate
- ZOTAC GAMING FireStorm Utility
Specification :
| SPECIFICATIONS | |
| NVIDIA GeForce RTX 4070 GPU | |
| 5888 CUDA cores | |
| 12GB GDDR6X memory | |
| 192-bit memory bus | |
| Engine boost clock: 2475 MHz | |
| Memory clock: 21.0 Gbps | |
| PCI Express 4.0 x16 | |
| SOFTWARE COMPATIBILITY | |
| Game Ready and NVIDIA Studio Drivers | |
| PCI Express® Gen 4 | |
| Microsoft DirectX® 12 Ultimate | |
| Vulkan RT APIs, Vulkan 1.3 | |
| OpenGL 4.6 | |
| Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) | |

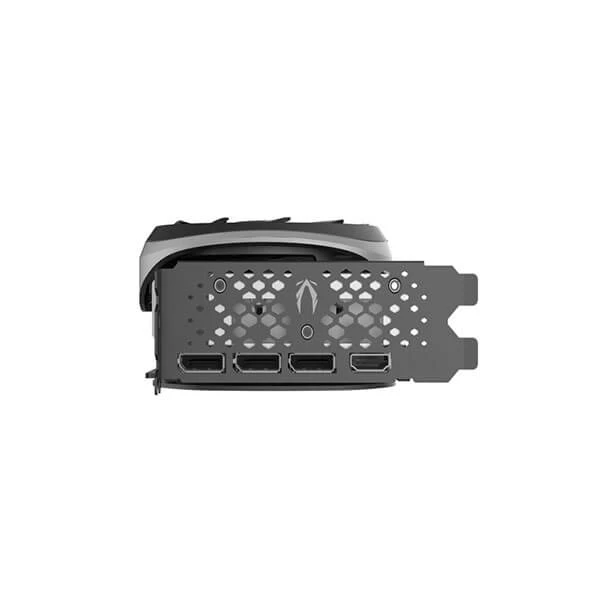

| CONNECTIONS | |
| 3 x DisplayPort 1.4a | |
| (up to 7680×4320@60Hz) | |
| 1 x HDMI® Connector | |
| (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1a Specification) | |
| HDCP 2.3 support | |
| Up to 4 displays simultaniously | |
| POWER REQUIREMENTS | |
| 600-watt power supply recommended | |
| 200-watt max power consumption | |
| 1 x 12VHPWR power input | |
| INSIDE THE BOX | |
| ZOTAC GAMING GeForce RTX 4070 Trinity | |
| GPU Support Stand | |
| 1 x 2×8-pin-to-12VHPWR cable | |
| User Manual | |
| DIMENSIONS | |
| Length: 306.8mm (12.1in) | |
| Height: 119.4mm (4.7in) | |
| Width: 2.5 slot (58.5 mm) (2.3 in) | |
| Box: | |
| Height: 424mm (16.7in) | |
| Width: 292mm (11.5in) | |
| Depth: 99mm (3.9in) |
