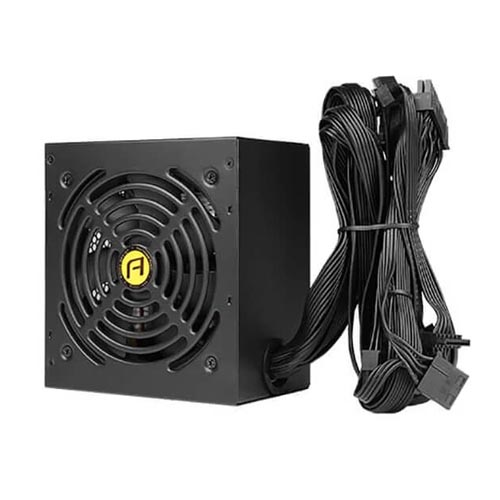

Antec CSK 550 80 Plus Bronze SMPS CSK-550-BRONZE
Overview :
Antec’s new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance. Featuring 80 PLUS® BRONZE certification, a quiet 120 mm fan, CSK Bronze includes Antec’s 3 year warranty. The CircuitShield™ suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.
80 PLUS® Bronze certified
Delivering up to 88% efficiency, the CSK Bronze Series utilize active PFC, giving you a cooler, quieter system, all powered by Continuous Power.
3-Year Warranty
We stand by the quality and safety of the CSK Bronze Power Supplies, offering a 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.
120 mm Silent Fan
The 120 mm silent fan is ideal for quite computing and is designed for longer lifetime, guaranteeing hours of operation.
Specification :
| Model | CSK550 Bronze |
| Type | ATX 12V 2.31 |
| Dimension | 140(L) x 150(W) x 86(H) |
| Input Voltage | 100 ~ 240 VAC |
| Input Current | 10A ~ 5A |
| Input Frequency Range | 50Hz ~ 60Hz |
| PFC | Active PFC |
| Power Good Signal | 100 ~ 500ms |
| Efficiency | 88% Typically |
| Protection | OCP/OVP/UVP/SCP/OPP/NLO/OTP |
| Output Capacity | 550W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | cTUVus/TUV/CB/RCM/CE/CCC/FCC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Bronze |
| Connector | 1 x MB 24(20 4) Pin |
| 1 x 8(4 4) Pin EPS 12V | |
| 2 x 8(6 2) Pin PCI-E | |
| 7 x SATA | |
| 2 x Molex | |
| 1 x FDD | |
| Net Weight | 1.53 Kgs |
| Gross Weight | 1.71 Kgs |
| Warranty | 3 Years |
