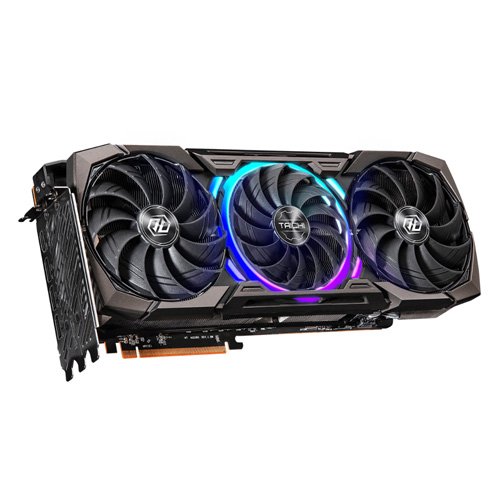

Asrock AMD Radeon RX 7900 XTX Taichi 24GB OC Graphic Card RX7900XTX TC 24GO
Overview :
Clock: GPU / Memory
Boost Clock*: Up to 2680 MHz / 20 Gbps
Game Clock**: 2510 MHz / 20 Gbps
Key Specifications
AMD Radeon™ RX 7900 XTX GPU
24GB GDDR6 on 384-Bit Memory Bus
96 AMD RDNA™ 3 Compute Units (With Rt+Ai Accelerators)
96MB AMD Infinity Cache™ Technology
PCI® Express 4.0 Support
3 x 8-pin Power Connectors
3 x DisplayPort™ 2.1 / 1 x HDMI™ 2.1
Key Features
Polychrome SYNC
Taichi 3X Cooling System
ARGB Backplate
Reinforced Metal Frame
Dual BIOS
22 Power Phase Design
110/100/110mm Striped Ring Fans
Specification :
Graphics Engine – AMD Radeon™ RX 7900 XTX
Bus Standard – PCI® Express 4.0 x16
DirectX – 12 Ultimate
OpenGL – 4.6
Memory – 24GB GDDR6
Engine Clock
– Boost Clock*: Up to 2680 MHz
– Game Clock**: 2510 MHz
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Stream Processors – 6144
Compute Units – 96
Memory Clock – 20 Gbps
Memory Interface – 384-bit
Resolution – Digital Max Resolution: 7680×4320

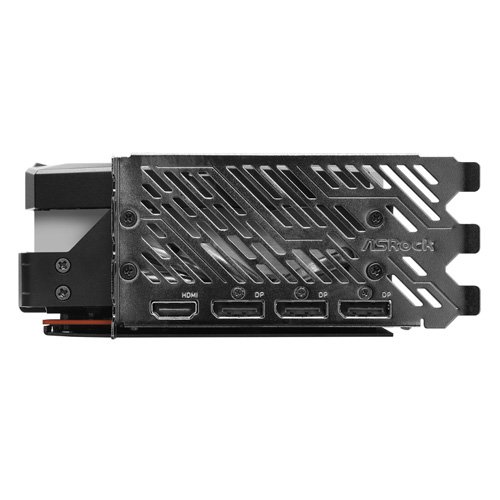

Interface
– 3 x DisplayPort™ 2.1*
– 1 x HDMI™ 2.1
*DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 3 ports simultaneously.
HDCP – Yes
Multi-view – 4
Recommended PSU – 1000W
Power Connector – 3 x 8-pin
Accessories
– 1 x Quick Installation Guide
– 1 x Taichi Post Card
– 1 x Graphics Card Stand
Dimensions – 345 x 140 x 61 mm, 3-slot
Net Weight – 1900 g
