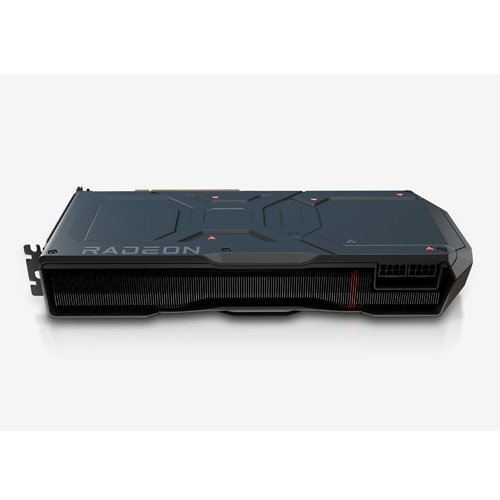

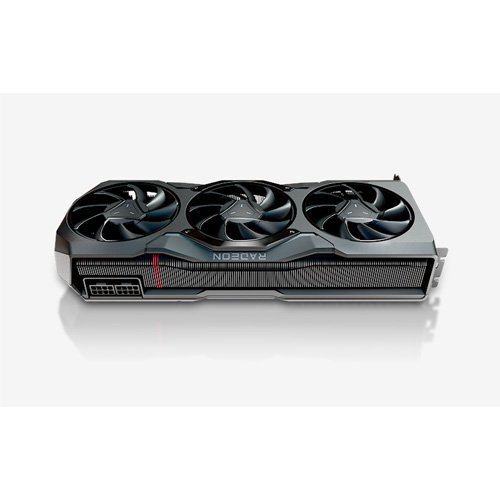

SAPPHIRE AMD RADEON RX 7900 XTX 24GB GDDR6 384 Bit GAMING GRAPHICS CARD Triple Fans 21322-01-20G
Overview :
- 96 AMD RDNA™ 3 Compute Units(with RT+AI Accelerators)
- 96MB AMD Infinity Cache™ technology
- DisplayPort™ 2.1
- AMD Radiance Display™ Engine
- AMD Radeon™ Boost technology*
- AMD Radeon™ Anti-Lag* technology*
Specification :
GPU :
AMD Radeon™ RX 7900 XTX Graphics Card
5nm GPU : AMD RDNA™ 3 Architecture
Engine Clock
• Boost Clock: Up to 2500 MHz
• Game Clock: Up to 2300 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors : 6144
Compute Units :96 CU (with RT+AI Accelerators)
Infinity Cache : 96MB
Ray Accelerators : 96
Memory Size/Bus: 24GB GDDR6
Memory Clock : 20 Gbps Effective
Displays : Maximum 4 Displays
Resolution
• HDMI™: 7680×4320
• DisplayPort 2.1: 7680×4320
• USB-C: 7680×4320
Interface : PCI-Express 4.0 x16
Output
• 1x HDMI
• 2x DisplayPort
• 1x USB-C
BIOS Support
• UEFI
Game Index :4K
AMD Features
• AMD RDNA™ 3 Gaming Architecture
• 96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
• 96MB AMD Infinity Cache™ technology
• DisplayPort™ 2.1
• AMD Radiance Display™ Engine
• AMD Radeon™ Boost technology*
• AMD Radeon™ Anti-Lag* technology*
• 24GB GDDR6 on 384-Bit Memory Bus
• PCI® Express 4.0 ready
• AMD FidelityFX™ technologies*
• AMD FidelityFX™ Super Resolution technology*
• Microsoft® DirectX® 12 Ultimate
• Microsoft® DirectStorage
• Vulkan® Optimized
• AMD smart technologies*
• AMD Software: Adrenalin Edition™ application
• AMD Noise Suppression*
• AMD Privacy View*
• AMD Radeon™ Super Resolution technology*
• AMD Link*
• AMD Freesync™ technology
Cooler Type : 3 Fans
Form Factor : 2.5 slot, ATX
Dimension: 287(L)X 123.2(W)X 51.25 (H)mm
Power Consumption : • 346W
OS : Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
• Minimum 800 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
• Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
