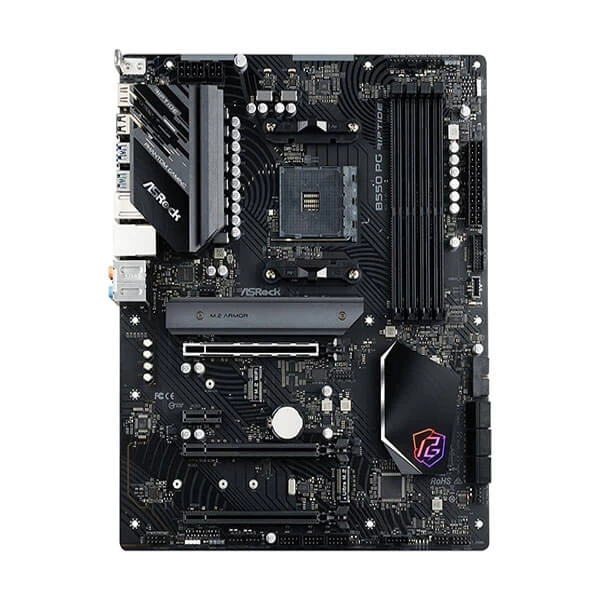

ASRock B550 PG Riptide AM4 AMD B550 ATX AMD Motherboard
Overview :
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- 10 Phase, Digi Power, Dr. MOS
- Supports DDR4 4933 (OC)*
- 1 PCIe 4.0 x16 Slot, 2 PCIe 3.0 x16 Slots, 1 PCIe 3.0 x1 Slot
1 M.2 Key-E for WiFi - Graphics Outputs: HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)** - 3 USB 3.2 Gen2 (Front Type-C, Rear Type-A C)
10 USB 3.2 Gen1 (4 Front, 6 Rear), 8 USB 2.0 (6 Front, 2 Rear) - Killer E3100G 2.5G LAN
Specification :
| Model | |
| Brand | ASRock |
| Model | B550 PG RIPTIDE |
| Supported CPU | |
| CPU Socket Type | AM4 |
| CPU Type | Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Processors * |
| * Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G. | |
| Chipsets | |
| Chipset | AMD B550 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 4933 (OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer&Matisse), APUs (Renoir))* |
| * For Ryzen Series APUs (Renoir), ECC is only supported with PRO CPUs. | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Expansion Slots | |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16* |
| * Actual support may vary by CPU. | |
| * Supports NVMe SSD as boot disks. | |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16* |
| * Supports NVMe SSD as boot disks. | |
| * If PCIE2 or PCIE4 is occupied, PCIE3 will downgrade to x2 mode. | |
| PCI Express x1 | 1 x PCI Express 3.0 x1 |
| Other Slots | 15µ Gold Contact in VGA PCIe Slot (PCIE1) |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Storage Devices | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir)* |
| 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* | |
| * If M2_2 is occupied, SATA3_5_6 will be disabled. | |
| * Supports NVMe SSD as boot disks. | |
| * Supports ASRock U.2 Kit. | |
| SATA RAID | 0/1/10 |
| Onboard Video | |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Onboard Audio | |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Killer E3100G |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Rear Panel Ports | |
| Back I/O Ports | 1 x Antenna Mounting Bracket |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x Optical SPDIF Out Port | |
| 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) | |
| 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) | |
| 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* | |
| 2 x USB 2.0 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) | |
| * USB3_56 are the Lightning Gaming Ports. | |
| Internal I/O Connectors | |
| Onboard USB | 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) (Supports ESD Protection) |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) | |
| 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) | |
| Other Connectors | 1 x SPI TPM Header |
| 1 x Power LED and Speaker Header | |
| 2 x RGB LED Headers* | |
| 2 x Addressable LED Headers** | |
| 1 x CPU Fan Connector (4-pin)*** | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| 1 x Front Panel Audio Connector | |
| 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card only) | |
| * Support in total up to 12V/3A, 36W LED Strip. | |
| ** Support in total up to 5V/3A, 15W LED Strip. | |
| *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| **** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| ***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | None RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) | |
| Features | |
| Features | Unique Feature: |
| ASRock USB 3.2 Gen2 | |
| ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s) | |
| ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
| ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) | |
| ASRock Super Alloy | |
| XXL Aluminum Alloy Heatsink | |
| Premium 60A Power Choke | |
| 50A Dr.MOS | |
| Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) | |
| Matte Black PCB | |
| High Density Glass Fabric PCB | |
| 2oz Copper PCB | |
| Killer 2.5G LAN | |
| ASRock Lightning Gaming Port | |
| ASRock Steel Slot Gen4 | |
| ASRock Full Coverage M.2 Heatsink | |
| ASRock Hyper M.2 (PCIe Gen4x4) | |
| ASRock POST Status Checker (PSC) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| BIOS: | |
| 256Mb AMI UEFI Legal BIOS with GUI support | |
| Supports “Plug and Play” | |
| ACPI 5.1 compliance wake up events | |
| Supports jumperfree | |
| SMBIOS 2.3 support | |
| CPU, VDDCR_SOC, DRAM, VPPM, 1.8V Voltage Multi-adjustment | |
| Software and UEFI: | |
| Software | |
| ASRock Motherboard Utility (Phantom Gaming Tuning) | |
| ASRock Killer LAN Software | |
| ASRock Polychrome SYNC* | |
| UEFI | |
| ASRock Full HD UEFI | |
| ASRock Instant Flash | |
| * These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Support CD: | |
| Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar | |
| Hardware Monitor: | |
| Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans | |
| Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, CPU VDD 1.8V | |
| OS: | |
| Microsoft Windows 10 64-bit / 11 64-bit | |
| Certifications: | |
| FCC, CE | |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| CEC Tier II ready | |
| Packaging | |
| Package Contents | Accessories: |
| Quick Installation Guide, Support CD, I/O Shield | |
| 2 x SATA Data Cables | |

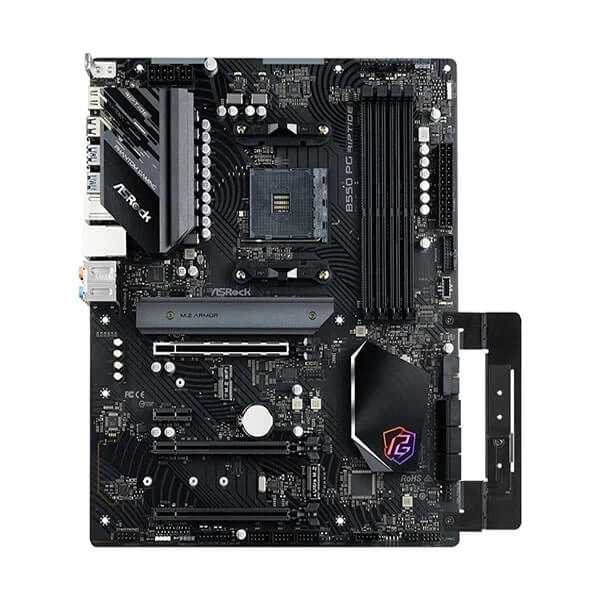

| 1 x Graphics Card Holder | |
| 3 x Screws for M.2 Sockets | |
| 1 x Standoff for M.2 Socket |
