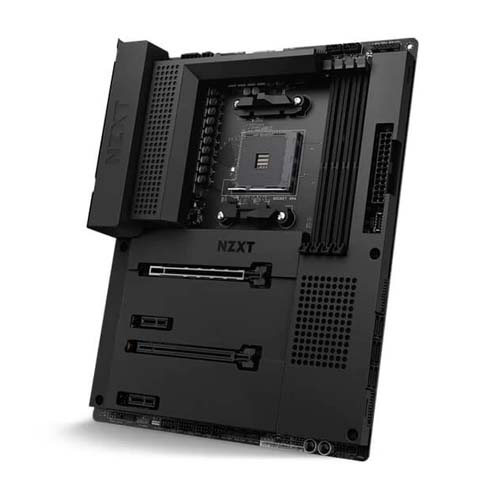

NZXT N7 B550 (WI-FI) Motherboard Matte Black Cover N7-B55XT-B1 (AMD SOCKET AM4/RYZEN 5000, 4000 AND 3000 SERIES CPU/MAX 128GB DDR4 4733MHZ MEMORY)
Overview :
- WiFi 6E connectivity
- Digital RGB lighting control through NZXT CAM
- Digital fan control for fan profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout
- Compatible with 3rd Gen AMD™ Ryzen™ processors (3000, 4000, and 5000 Series Processors)
- Intel® Wi-Fi 6E wireless connectivity and Bluetooth V5.2
- Two M.2 connectors for storage devices
- Multi-GPU support with AMD CrossFireX™ Technology
- Supports memory overclocking up to 4600 MHz and XMP
- 8-channel high-definition audio
Specification :
Product Model | N7-B55XT-B1 |
CPU & Socket | AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors) – Supported |
AMD Ryzen™ 5 3400G and Ryzen™ 3200G – Not Supported | |
Chipset | AMD® B550 |
Memory | 4 x DIMM, Max. 128GB, DDR4 |
4666 MHz – OC Frequency (Vermeer CPUs) | |
4666 MHz – OC Frequency (Matisse CPUs) | |
4733 MHz – OC Frequency (Renoir APUs) | |
3200/2933/2667/2400/2133 – Base Frequency | |
ECC & non-ECC, un-buffered memory type | |
Dual-channel memory architecture | |
XMP Supported | |
Integrated Graphics | AMD Radeon™ Vega Series Graphics in Ryzen Series APU – HDMI |
HDMI™ with max. resolution of 4096×2160@60Hz | |
Maximum shared memory of 16GB with 32GB installed | |
Microsoft PlayReady® Supported | |
Multi-GPU Support | Supports AMD 2-Way CrossFireX™ Technology |
Storage | 1 x M.2 Type 2242/2260/2280 (x4 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0) |
1 x M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode) | |
6 x SATA 6Gb/s – (M2_2 and SATA3_5_6 share lanes) | |
RAID 0/1/5/10 Supported | |
LAN | Realtek® RTL8125BG 2.5G |
Wireless | Intel® Dual-Band Wireless – AX210 Wi-Fi 6E |
802.11 a/b/g/n/ac/ax Protocol | |
2.4 / 5 / 6GHz Frequency Bands | |
Supports MU-MIMO | |
Bluetooth | Bluetooth V5.2 |
Audio | Realtek® ALC1220 Codec |
8-Channel High Definition Audio, 32-bit / 192KHz DAC | |
Nichicon Fine Gold Series Audio Capacitors | |
Rear I/O | 1 x USB 3.2 Gen 2 Type-C |
3 x USB 3.2 Gen 2 Type-A | |
4 x USB 3.2 Gen 1 ports | |
2 x USB 2.0 ports | |
1 x HDMI 2.1 | |
2 x Wireless Antenna (2T2R) | |
1 x LAN (RJ45) Port | |
1 x 5.1-Channel Audio Jacks | |
1 x Optical S/PDIF | |
1 x BIOS Flashback Button | |
1 x Clear CMOS Button | |
Expansion Slots | 1 x PCIe x16 (x16 mode) – (Vermeer & Matisse – PCIe 4.0, Renoir – PCIe 3.0) |
1 x PCIe x16 (x4 mode) | |
2 x PCIe 3.0 x1 | |
Internal I/O | 1 x 24-pin EATX power connector |
1 x 8-pin ATX 12V power connector | |
1 x 4-pin CPU_FAN connector | |
1 x 4-pin AIO_PUMP connector (Up to 24W) | |
5 x 4-pin SYS_FAN connectors (Up to 24W) | |
1 x CPU_FAN Connector (Up to 24W) | |
2 x NZXT RGB LED connectors | |
1 x 5V Addressable RGB connector | |
1 x 12V RGB connector | |
1 x M.2 (M Key), Type 2242/2260/2280 – (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode) | |
1 x M.2 (E Key) (For wireless cards) | |
6 x SATA 6Gbps Ports | |
1 x USB 3.2 Gen 2 Header (Type-C) | |
1 x USB 3.2 Gen 1 Header (Up to 2 ports) | |
3 x USB 2.0 Header (Up to 6 ports) | |
1 x Front Panel Audio | |
1 x Power Button | |
1 x Reset Button | |
4 x POST LEDs | |
Operating System | Microsoft® Windows® 10 (64-bit) |
Form Factor | ATX |
Warranty | 3 Years |
