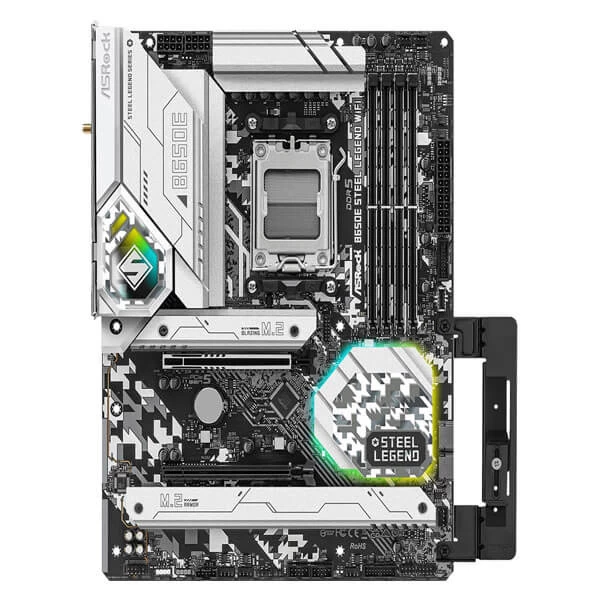

ASRock B650E Steel Legend WIFI Motherboard
Overview :Â
- Supports AMD Ryzenâ„¢ 7000 Series Processors
- 16 2 1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6400 (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec),
Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 2 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Realtek 2.5G LAN
- 802.11ax Wi-Fi 6E Bluetooth
Specification :Â
| Unique Feature | Superb Productivity |
| PCIe Gen5 (Graphics, M.2) | |
| Dual Channel DDR5 | |
| Rock-Solid Durability | |
| Server-Grade Low-Loss PCB | |
| 16 2 1 Power Phase, 60A SPS | |
| Flexible Integrated I/O Shield | |
| Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) | |
| Ultrafast Connectivity | |
| 2.5G LAN, | |
| 802.11ax Wi-Fi 6EModule | |
| EZ Update | |
| BIOS Flashback Button | |
| ASRock Auto Driver Installer | |
| EZ Troubleshooter | |
| ASRock Post Status Checker | |
| CPU | Supports AMD Socket AM5 Ryzenâ„¢ 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | Dual Channel DDR5 Memory Technology |
| 4 x DDR5 DIMM Slots | |
| Supports DDR5 non-ECC, un-buffered memory up to 6400 (OC) | |
| Max. capacity of system memory: 128GB | |
| Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modul | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNAâ„¢ 2 graphics (Actual support may vary by CPU) |
| 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz | |
| 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Nahimic Audio | |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Dragon RTL8125BG | |
| Supports Dragon 2.5G LAN Software | |
| Smart Auto Adjust Bandwidth Control | |
| Visual User Friendly UI | |
| Visual Network Usage Statistics | |
| Optimized Default Setting for Game, Browser, and Streaming Modes | |
| User Customized Priority Control | |
| Wireless LAN | 802.11ax Wi-Fi 6E Module |
| Supports IEEE 802.11a/b/g/n/ac/ax | |
| Supports Dual-Band 2×2 with extended 6GHz band support | |
| 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
| Supports Bluetooth High speed class II | |
| Supports MU-MIMO | |
| Slots | CPU: |
| 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode | |
| 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode | |
| Chipset: | |
| 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Supports AMD CrossFireâ„¢ | |
| 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Supports NVMe SSD as boot disks | |
| Storage | CPU: |
| 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| Chipset: | |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 2 x SATA3 6.0 Gb/s Connectors | |
| Supports NVMe SSD as boot disks | |
| Supports ASRock U.2 Kit | |
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices |
| Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| Requires additional M.2 NVMe expansion cards to support RAID 10 | |
| USB | 1 x USB 3.2 Gen2x2 Type-C (Front) |
| 1 x USB 3.2 Gen2 Type-C (Rear) | |
| 1 x USB 3.2 Gen2 Type-A (Rear) | |
| 8 x USB 3.2 Gen1 (4 Rear, 4 Front) | |
| 6 x USB 2.0 (2 Rear, 4 Front) | |
| All USB ports support ESD Protection | |
| Connector | 1 x SPI TPM Header |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header | |
| 3 x Addressable LED Headers | |
| 1 x CPU Fan Connector (4-pin) | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| 1 x Front Panel Audio Connector | |
| 1 x Thunderboltâ„¢ AIC Connector (5-pin) (Supports ASRock Thunderboltâ„¢ 4 AIC Card) | |
| 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) | |
| Supports in total up to 12V/3A, 36W LED Strip | |
| Support in total up to 5V/3A, 15W LED Strip | |
| CPU_FAN1 supports the fan power up to 1A (12W). | |
| CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
| CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Rear Panel I/O | 2 x Antenna Ports |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 1 x Optical SPDIF Out Port | |
| 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) | |
| 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) | |
| 4 x USB 3.2 Gen1 Ports | |
| 2 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| 1 x BIOS Flashback Button | |
| 1 x Line Out Jack (Gold Audio Jack) | |
| 1 x Microphone Input Jack (Gold Audio Jack) | |
| Software and UEFI | Software |
| ASRock Motherboard Utility (A-Tuning) | |
| ASRock Dragon 2.5G LAN Software | |
| ASRock Polychrome SYNC | |
| UEFI | |
| ASRock Full HD UEFI | |
| ASRock Auto Driver Installer | |
| ASRock Instant Flash | |
| Accessories | 1 x User Manual |
| 2 x SATA Data Cables | |
| 1 x ASRock WiFi 2.4/5/6 GHz Antenna | |
| 3 x Screws for M.2 Sockets | |
| 1 x Standoff for M.2 Socket | |
| 1 x Graphics Card Holder | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| 8 Layer PCB | |
| OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty | 3 Years |
