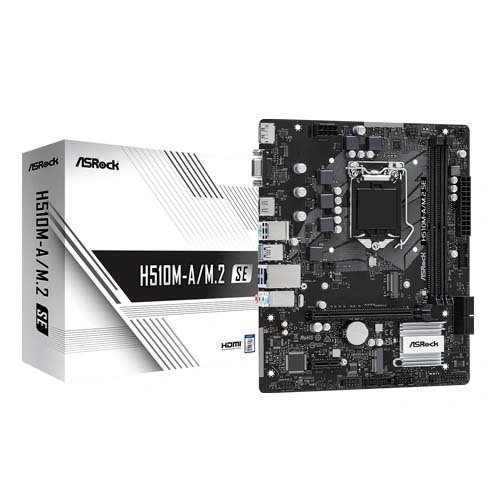

ASRock H510M-A/M.2 SE M-ATX Motherboard
Overview :
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- 2 x DDR4 DIMMs Supports Dual Channel, up to 2933
- Intel® H510 Chipset
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options : HDMI, D-Sub, DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 M.2 (PCIe Gen3x4 & SATA3), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- 5 USB 2.0 (3 Front, 2 Rear)
- Gigabit LAN
- TPM Module onboard
- Supports ASRock Auto Driver Installer
Specification :
| Platform | INTEL |
| Socket | LGA1200 |
| Cpu Type | 10th Gen |
| Chipset | H510 |
| Memory Speed | up to 2933 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Graphics Port | HDMI,D-Sub,DisplayPort |
| Expansion Slots | 1 x PCI Express 3.0 x16 Slot 1 x PCI Express 3.0 x1 Slot 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Back Panel I/O Ports | 2 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DisplayPort 1.2 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | SPI TPM 2.0 IC 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
