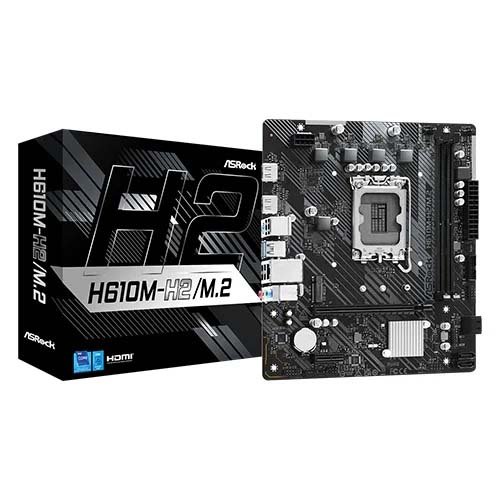

ASRock H610M-H2/M.2 M-ATX Motherboard
Overview :
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- 3+1+1 Phase Power Design
- 2 x DDR4 DIMMs
- Supports Dual Channel, up to 3200
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
Specification :
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen |
| Chipset | H610 |
| Memory Speed | up to 3200 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 |
| Graphics Port | 2 x HDMI |
| Expansion Slots | CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: – 1 x PCIe 3.0 x1 Slot (PCIE2)* * Supports NVMe SSD as boot disks |
| Back Panel I/O Ports | 1 x PS/2 Mouse/Keyboard Port 2 x HDMI Ports 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
