ASRock X570 Phantom Gaming 4 X570 AMD AM4 Motherboard
Overview :
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
- 10 Power Phase Design
- Supports DDR4 4066 (OC)
- 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
- 2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
Specification :
| Gaming Armor | Memory |
| 15μ Gold Contact in DIMM Slots | |
| VGA Card | |
| 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Internet | |
| Intel® LAN | |
| Cooling | |
| XXL Aluminum Alloy Heatsink | |
| Unique Feature | ASRock USB 3.2 Gen2 |
| ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s) | |
| ASRock Super Alloy | |
| XXL Aluminum Alloy Heatsink | |
| Premium 50A Power Choke | |
| Sapphire Black PCB | |
| High Density Glass Fabric PCB | |
| 2oz Copper PCB | |
| ASRock Steel Slot Gen4 | |
| ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) | |
| ASRock POST Status Checker (PSC) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| CPU | Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors |
| Digi Power design | |
| 10 Power Phase design | |
| Chipset | AMD X570 |
| Memory | Dual Channel DDR4 Memory Technology |
| 4 x DDR4 DIMM Slots | |
| AMD Ryzen series CPUs (Matisse) support DDR4 4066 (OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466 (OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* | |
| AMD Ryzen series CPUs (Picasso) support DDR4 3466 (OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory* | |
| Max. capacity of system memory: 128GB** | |
| 15μ Gold Contact in DIMM Slots | |
| *For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. | |

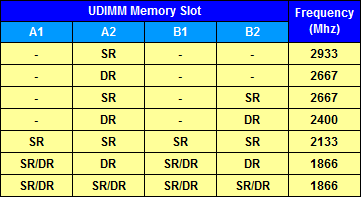

| Please refer to below table for AMD non-XMP memory frequency support. | |
| Ryzen Series CPUs (Matisse): | |
| Ryzen Series CPUs (Pinnacle Ridge): | |
| Ryzen Series CPUs (Picasso): | |
| SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2 | |
| DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label | |
| **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Supports “Plug and Play” | |
| ACPI 5.1 compliance wake up events | |
| Supports jumperfree | |
| SMBIOS 2.3 support | |
| CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, 1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment | |
| Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* |
| DirectX 12, Pixel Shader 5.0 | |
| Shared memory default 2GB. Max Shared memory supports up to 16GB.** | |
| Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers | |
| Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
| Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) | |
| Supports HDR (High Dynamic Range) with HDMI 2.0 | |
| Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports | |
| Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports | |
| Supports Microsoft® PlayReady | |
| *Actual support may vary by CPU | |
| **The Max shared memory 16GB requires 32GB system memory installed. | |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) |
| Premium Blu-ray Audio support | |
| Supports Surge Protection | |
| ELNA Audio Caps | |
| PCB Isolate Shielding | |
| Individual PCB Layers for R/L Audio Channel | |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| Giga PHY Intel® I211AT | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Slots | AMD Ryzen series CPUs (Matisse) |
| 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* | |
| AMD Ryzen series CPUs (Pinnacle Ridge) | |
| 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* | |
| AMD Ryzen series CPUs (Picasso) | |
| 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))* | |
| 2 x PCI Express 4.0 x1 Slots | |
| Supports AMD Quad CrossFireX™ and CrossFireX™ | |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module | |
| 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| *Supports NVMe SSD as boot disks | |
| Storage | 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
| 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* | |
| 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* | |
| *Supports NVMe SSD as boot disks | |
| Supports ASRock U.2 Kit | |
| Connector | 1 x COM Port Header |
| 1 x SPI TPM Header | |
| 1 x Power LED and Speaker Header | |
| 2 x RGB LED Headers* | |
| 1 x Addressable LED Header** | |
| 1 x CPU Fan Connector (4-pin)*** | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** | |
| 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 1 x AMD LED Fan USB Header | |
| 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only) | |
| 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) | |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
| *Support in total up to 12V/3A, 36W LED Strip | |
| **Supports in total up to 5V/3A, 15W LED Strip | |
| ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Rear Panel I/O | 3 x Antenna Ports (on I/O Panel Shield) |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.2 | |
| 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection) | |
| 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| ASRock Polychrome SYNC | |
| ASRock Key Master | |
| ASRock XFast LAN | |
| UEFI | |
| ASRock Full HD UEFI | |
| ASRock Instant Flash | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | Quick Installation Guide, Support CD, I/O Shield |
| 2 x SATA Data Cables | |
| 3 x Screws for M.2 Sockets | |
| Hardware Monitor | Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans |
| Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
| Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
| Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, 1.8V, VDDP | |
| Form Factor | ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm |
| Solid Capacitor design | |
| 2oz Copper PCB | |
| OS | Microsoft® Windows® 10 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) |
