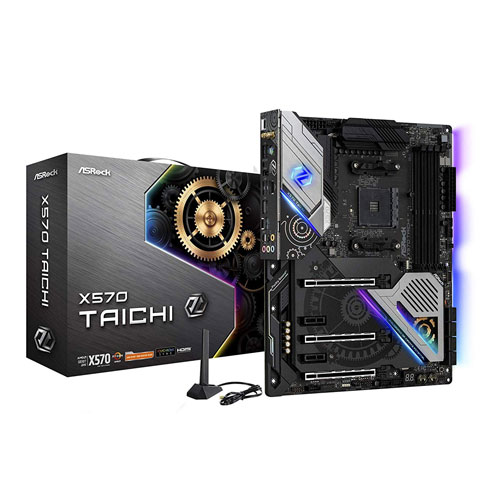

ASRock X570 TAICHI AMD Premium X570 AMD AM4 Motherboard
Overview :
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
- Intel® Wi-Fi 6 802.11ax (2.4Gbps) BT 5.0
- Supports DDR4 4666 (OC)
- 3 PCIe 4.0 x16, 2 PCIe 4.0 x1
- NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
- 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
- 3 USB 3.2 Gen2 (Rear Type A C, Front Type-C), 8 USB 3.2 Gen1 (2 Front, 6 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
Specification :
Unique Feature | ASRock USB 3.2 Gen2 |
ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) | |
ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) | |
ASRock Super Alloy | |
XXL Aluminum Alloy Heatsink | |
Premium 60A Power Choke | |
50A Dr.MOS | |
Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) | |
Combo Caps (Nichicon 12K Black Caps) | |
Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) | |
I/O Armor | |
Matte Black PCB | |
High Density Glass Fabric PCB | |
2oz Copper PCB | |
Intel® 802.11ax WiFi | |
ASRock Steel Slots | |
ASRock Full Coverage M.2 Heatsink | |
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) | |
ASRock Ultra USB Power | |
ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
ASRock Live Update & APP Shop | |
CPU | Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors |
Intersil Digital PWM | |
14 Power Phase design | |
Capable of providing extra 300W for CPU | |
Supports ASRock Hyper BCLK Engine II | |
Chipset | AMD Premium X570 |
Memory | Dual Channel DDR4 Memory Technology |
4 x DDR4 DIMM Slots | |
AMD Ryzen series CPUs (Matisse) support DDR4 4666 (OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* | |
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600 (OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* | |
AMD Ryzen series CPUs (Picasso) support DDR4 3466 (OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* | |
Max. capacity of system memory: 128GB** | |
15μ Gold Contact in DIMM Slots | |
*For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs. | |
Ryzen Series CPUs (Matisse): | |
Ryzen Series CPUs (Pinnacle Ridge): | |
Ryzen Series CPUs (Picasso): | |
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2 | |
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label | |
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. | |
BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
Supports “Plug and Play” | |
ACPI 5.1 compliance wake up events | |
Supports jumperfree | |
SMBIOS 2.3 support | |
CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, 1.8V, VDDP, Voltage Multi-adjustment | |
Graphics | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* |
DirectX 12, Pixel Shader 5.0 | |
Shared memory default 2GB. Max Shared memory supports up to 16GB.** | |
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) | |
Supports HDR (High Dynamic Range) with HDMI 2.0 | |
Supports HDCP 2.2 with HDMI 2.0 Port | |
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port | |
Supports Microsoft® PlayReady | |
*Actual support may vary by CPU | |
**The Max shared memory 16GB requires 32GB system memory installed. | |
Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
Premium Blu-ray Audio support | |
Supports Surge Protection | |
Supports Purity Sound™ 4 | |
Nichicon Fine Gold Series Audio Caps | |
NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) | |
Pure Power-In | |
Direct Drive Technology | |
PCB isolate shielding | |
Impedance Sensing on Rear Out port | |
Individual PCB Layers for R/L Audio Channel | |
Gold Audio Jacks | |
15μ Gold Audio Connector | |
Supports DTS Connect | |
LAN | Gigabit LAN 10/100/1000 Mb/s |
GigaLAN Intel® I211AT | |
Supports Wake-On-LAN | |
Supports Lightning/ESD Protection | |
Supports Energy Efficient Ethernet 802.3az | |
Supports PXE | |
Wireless LAN | Intel® 802.11ax WiFi Module |
Supports IEEE 802.11a/b/g/n/ax | |
Supports Dual-Band (2.4/5 GHz) | |
Supports high speed wireless connections up to 2.4Gbps | |
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
Supports Bluetooth 5.0 High speed class II | |
Supports MU-MIMO | |
Slots | AMD Ryzen series CPUs (Matisse) |
3 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3/PCIE5: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3); triple at x8 (PCIE1) / x8 (PCIE3) / x4 (PCIE5))* | |
AMD Ryzen series CPUs (Pinnacle Ridge) | |
3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen4x4 (PCIE5))* | |
AMD Ryzen series CPUs (Picasso) | |
1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))* | |
1 x PCI Express 4.0 x16 Slot (single at x4 (PCIE5))* | |
2 x PCI Express 4.0 x1 Slots | |
Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™** | |
Supports NVIDIA® Quad SLI™ and SLI™*** | |
Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards*** | |
1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) | |
15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
*Supports NVMe SSD as boot disks | |
**3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Matisse and Pinnacle Ridge). | |
***NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary. | |
This feature is only supported with Ryzen Series CPUs (Matisse and Pinnacle Ridge). | |
Storage | 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pinnacle Ridge and Picasso)* | |
1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)* | |
1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)* | |
*If M2_3 is occupied, PCIE5 slot will be disabled | |
Supports NVMe SSD as boot disks | |
Supports ASRock U.2 Kit | |
Connector | 1 x SPI TPM Header |
1 x Power LED and Speaker Header | |
1 x AMD Fan LED Header* | |
1 x RGB LED Header** | |
1 x Addressable LED Header*** | |
1 x CPU Fan Connector (4-pin)**** | |
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** | |
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** | |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
1 x 4 pin 12V Power Connector (Hi-Density Power Connector) | |
1 x Front Panel Audio Connector (15μ Gold Audio Connector) | |
1 x AMD LED Fan USB Header | |
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only) | |
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) | |
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) | |
1 x Dr. Debug with LED | |
1 x Power Button with LED | |
1 x Reset Button with LED | |
1 x Clear CMOS Button | |
*The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. | |
**Supports in total up to 12V/3A, 36W LED Strip | |
***Supports in total up to 5V/3A, 15W LED Strip | |
****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. | |
Rear Panel I/O | 2 x Antenna Ports |
1 x PS/2 Mouse/Keyboard Port | |
1 x HDMI Port | |
1 x Optical SPDIF Out Port | |
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) | |
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) | |
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* | |
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
1 x Clear CMOS Button | |
1 x BIOS Flashback Button | |
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) | |
*Ultra USB Power is supported on USB3_5_6 ports. | |
ACPI wake-up function is not supported on USB3_5_6 ports. | |
Software and UEFI | Software |
ASRock Polychrome SYNC | |
ASRock XFast LAN | |
UEFI | |
ASRock Full HD UEFI | |
ASRock Instant Flash | |
*These utilities can be downloaded from ASRock Live Update & APP Shop. | |
Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Accessories | Quick Installation Guide, Support CD |
4 x SATA Data Cables | |
1 x ASRock SLI_HB_Bridge_2S Card | |
1 x ASRock WiFi 2.4/5 GHz Antenna | |
1 x ASRock Screwdriver | |
3 x Screws for M.2 Sockets | |
3 x Standoffs for M.2 Sockets | |
Hardware Monitor | Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans |
Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans | |
Voltage monitoring: 12V, 5V, 3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, 1.8V, VDDP | |
Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
2oz Copper PCB | |
OS | Microsoft® Windows® 10 64-bit |
Certifications | FCC, CE |
ErP/EuP ready (ErP/EuP ready power supply is required) |
