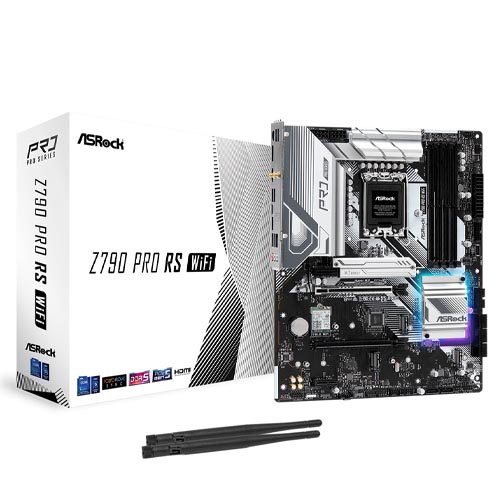

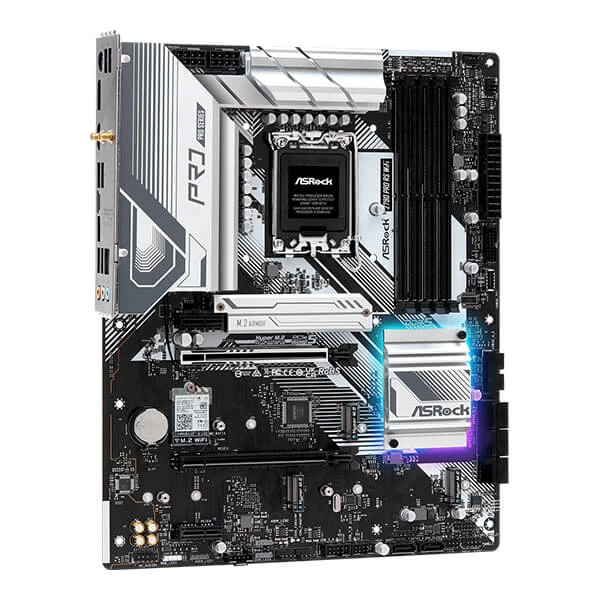

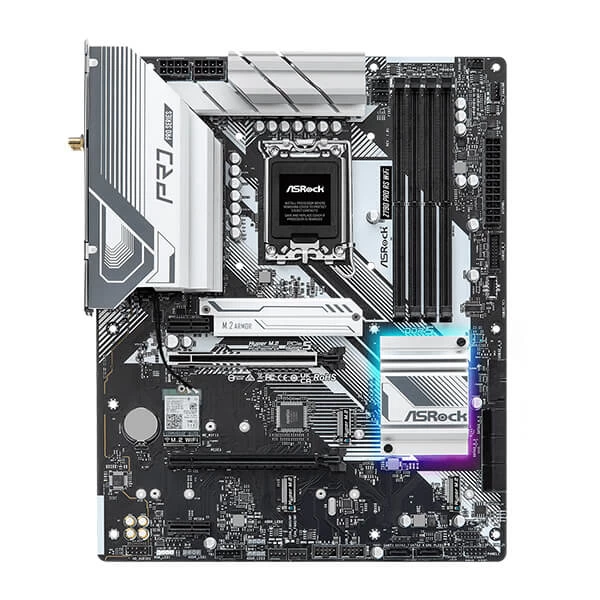

Asrock Z790 Pro RS WiFi Intel Z790 ATX Motherboard
Overview :
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 14 1 1 Phase Power Design, Dr.MOS for VCore GT
- 4 x DDR5 DIMMs, supports up to 7200 (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
- 802.11ax Wi-Fi 6E Bluetooth
Specification :
| Model | |
| Brand | ASRock |
| Model | Z790 PRO RS WiFi |
| Supported CPU | |
| CPU Socket Type | LGA 1700 |
| CPU Type | Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) |
| Supports Intel Hybrid Technology | |
| Supports Intel Turbo Boost Max 3.0 Technology | |
| Supports Intel Thermal Velocity Boost (TVB) | |
| Supports Intel Adaptive Boost Technology (ABT) | |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipsets | |
| Chipset | Intel Z790 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports DDR5 non-ECC, un-buffered memory up to 6800 (OC)* |
| 1DPC 1R Up to 6800 MHz (OC), 4800 MHz Natively. | |
| 1DPC 2R Up to 6000 MHz (OC), 4400 MHz Natively. | |
| 2DPC 1R Up to 5600 MHz (OC), 4000 MHz Natively. | |
| 2DPC 2R Up to 4800 MHz (OC), 3600 MHz Natively. | |
| Max. capacity of system memory: 128GB | |
| Supports Intel® Extreme Memory Profile (XMP) 3.0 | |
| * Please refer to Memory Support List on ASRock’s website for more information. | |
| (http://www.asrock.com/ | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode* |
| * Supports NVMe SSD as boot disks | |
| Supports AMD CrossFire | |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* |
| * Supports NVMe SSD as boot disks | |
| PCI Express x1 | 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)* |
| * Supports NVMe SSD as boot disks | |
| Storage Devices | |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
| M.2 | CPU: |
| 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) | |
| * Supports Intel Volume Management Device (VMD) | |
| * Supports NVMe SSD as boot disks | |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
| Onboard Audio | |
| Audio Chipset | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Nahimic Audio | |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Dragon RTL8125BG | |
| Supports Dragon 2.5G LAN Software | |
| Smart Auto Adjust Bandwidth Control | |
| Visual User Friendly UI | |
| Visual Network Usage Statistics | |
| Optimized Default Setting for Game, Browser, and Streaming Modes | |
| User Customized Priority Control | |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | 802.11ax Wi-Fi 6E Module |
| Supports IEEE 802.11a/b/g/n/ac/ax | |
| Supports Dual-Band 2×2 with extended 6GHz band* support | |
| 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
| Supports Bluetooth High speed class II | |
| Supports MU-MIMO | |
| * Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. | |
| It will be activated (for supported countries) through Windows Update and software updates once available. | |
| * A 6GHz compatible router is required for 6E functionality. | |
| Bluetooth | Yes |

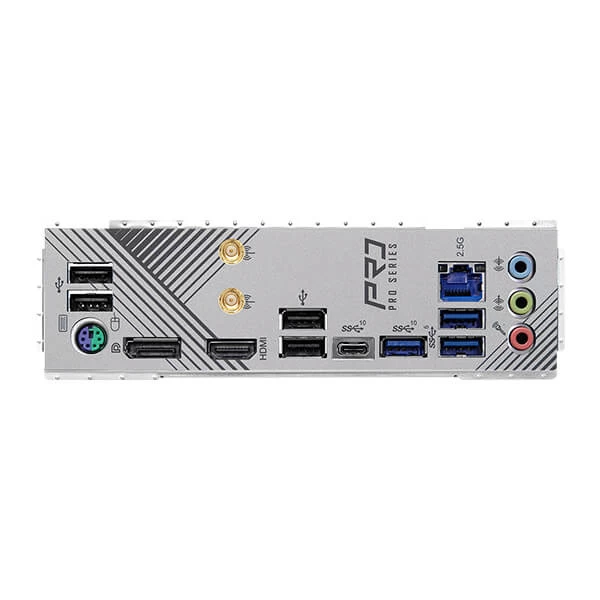

| Rear Panel Ports | |
| Back I/O Ports | 2 x Antenna Ports |
| 1 x PS/2 Mouse/Keyboard Port | |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
| 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) | |
| 2 x USB 3.2 Gen1 Ports | |
| 4 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| Other Connectors | 1 x eDP Signal Connector |
| 1 x SPI TPM Header | |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header* | |
| 3 x Addressable LED Headers** | |
| 1 x CPU Fan Connector (4-pin)*** | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| 1 x Front Panel Audio Connector | |
| 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | |
| * Supports in total up to 12V/3A, 36W LED Strip | |
| ** Support in total up to 5V/3A, 15W LED Strip | |
| *** CPU_FAN1 supports the fan power up to 1A (12W). | |
| **** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| ***** CHA_FAN1~5/WP support the fan power up to 2A (24W). | |
| ***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Power Pin | 1 x 24 pin ATX Power Connector |
| 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| Windows Compatibility | |
| Windows 11 | Microsoft Windows OS 10 64-bit / 11 64-bit |
| Features | |
| Features | Superb Productivity |
| PCIe Gen5 (Graphics) | |
| Dual Channel DDR5 | |
| Rock-Solid Durability | |
| 14 1 1 Power Phase, 50A Dr.MOS for VCore GT with Enlarged Heatsink Armor | |
| Flexible Integrated I/O Shield | |
| Ultrafast Connectivity | |
| 2.5G LAN, 802.11ax Wi-Fi 6E Module | |
| EZ Update | |
| ASRock Auto Driver Installer | |
| EZ Troubleshooter | |
| ASRock Post Status Checker | |
| Packaging | |
| Package Contents | 1 x User Manual |
| 2 x SATA Data Cables | |
| 2 x ASRock WiFi 2.4/5/6 GHz Antennas | |
| 4 x Screws for M.2 Sockets | |
| 1 x Standoff for M.2 Socket |
