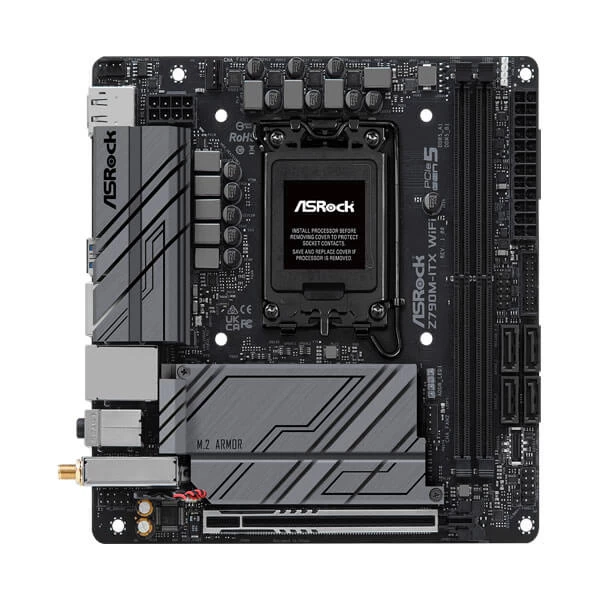

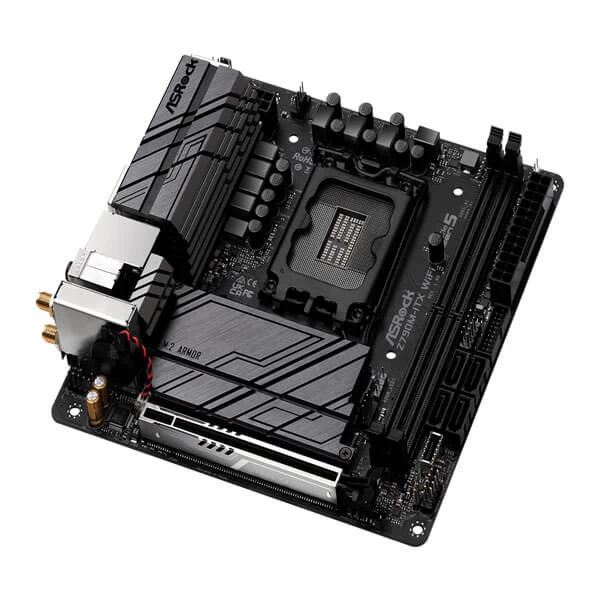

Asrock Z790M-ITX WiFi Intel Z790 Micro ATX Motherboard
Overview :
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 7 1 1 Phase Power Design, Dr.MOS for VCore GT
- 2 x DDR5 DIMMs, supports up to 7000 (OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
- Intel® 2.5G LAN, Intel® 1G LAN
- 802.11ax Wi-Fi 6E Bluetooth 5.3
Specification :
Unique Features | Superb Productivity |
PCIe Gen5 (Graphic) | |
Dual Channel DDR5 | |
Rock-Solid Durability | |
7 1 1 Power Phase, 50A Dr.MOS for VCore GT | |
Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) | |
Ultrafast Connectivity | |
2.5G LAN, 802.11ax Wi-Fi 6E Module | |
EZ Update | |
ASRock Auto Driver Installer | |
CPU | Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
Supports Intel® Hybrid Technology | |
Supports Intel® Turbo Boost Max 3.0 Technology | |
Supports Intel® Thermal Velocity Boost (TVB) | |
Supports Intel® Adaptive Boost Technology (ABT) | |
Chipset | Intel® Z790 |
Memory | Dual Channel DDR5 Memory Technology |
2 x DDR5 DIMM Slots | |
Supports DDR5 non-ECC, un-buffered memory up to 6800 (OC)* | |
Max. capacity of system memory: 64GB | |
Supports Intel® Extreme Memory Profile (XMP) 3.0 | |
BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
Graphics | Intel® Xe Graphics Architecture (Gen 12) |
1 x eDP 1.4, supports max. resolution up to Full HD 60Hz | |
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
Nahimic Audio | |
LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V) |
1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) | |
Wireless LAN | 802.11ax Wi-Fi 6E Module |
Supports IEEE 802.11a/b/g/n/ac/ax | |
Supports Dual-Band 2×2 with extended 6GHz band support* | |
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
Supports Bluetooth High speed class II | |
Supports MU-MIMO | |
Slots | CPU: |
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* | |
Chipset: | |
1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) | |
Storage | CPU: |
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
Chipset: | |
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* | |
4 x SATA3 6.0 Gb/s Connectors | |
RAID | Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices |
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
USB | 1 x USB 3.2 Gen2x2 Type-C (Rear) |
1 x USB 3.2 Gen2x2 Type-C (Front) | |
4 x USB 3.2 Gen2 Type-A (Rear) | |
2 x USB 3.2 Gen1 (Front) | |
3 x USB 2.0 (1 Rear, 2 Front) | |
Connector | 1 x eDP Signal Connector |
1 x RGB LED Header* | |
1 x Addressable LED Header** | |
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** | |
2 x Chassis Fan Connectors (4-pin)**** | |
1 x 24 pin ATX Power Connector | |
1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
1 x Front Panel Audio Connector | |
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) | |
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)***** | |

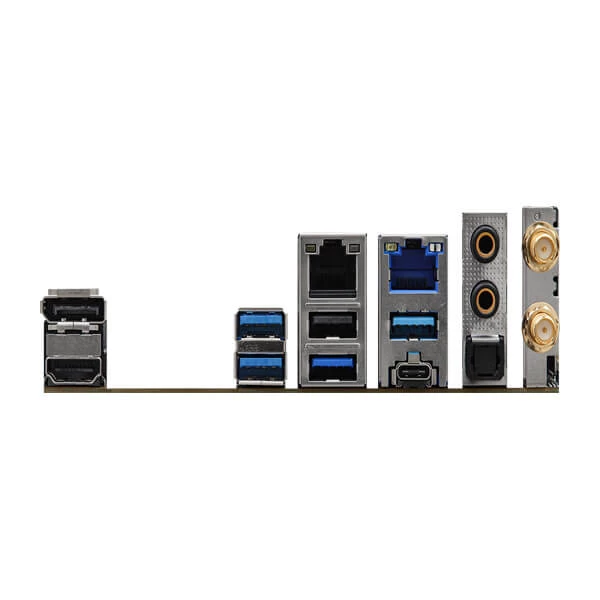

Rear I/O Panel | 2 x Antenna Ports |
1 x HDMI Port | |
1 x DisplayPort 1.4 | |
1 x Optical SPDIF Out Port | |
4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) | |
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) | |
1 x USB 2.0 Port | |
2 x RJ-45 LAN Ports | |
1 x Line Out Jack (Gold Audio Jack) | |
1 x Microphone Input Jack (Gold Audio Jack) | |
Software & UEFI | Software |
ASRock Motherboard Utility (A-Tuning) | |
ASRock Polychrome SYNC | |
ASRock XFast LAN | |
UEFI | |
ASRock EZ Mode | |
ASRock Full HD UEFI | |
ASRock My Favorites in UEFI | |
ASRock Auto Driver Installer | |
ASRock Instant Flash | |
ASRock Easy RAID Installer | |
Accessories | 1 x User Manual |
1 x I/O Shield | |
2 x SATA Data Cables | |
2 x ASRock WiFi 2.4/5/6 GHz Antennas | |
2 x Screws for M.2 Sockets | |
Form Factor | Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm |
8 Layer PCB | |
OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications | FCC, CE |
ErP/EuP ready (ErP/EuP ready power supply is required) | |
Warranty | 3 Years |
